    d² Dura Grating Standard Mesh is our most cost-effective open mesh flooring and walkway solution and suits a wide range of projects providing excellent bidirectional mechanical properties and it comes with a reassuring 25-year warranty.

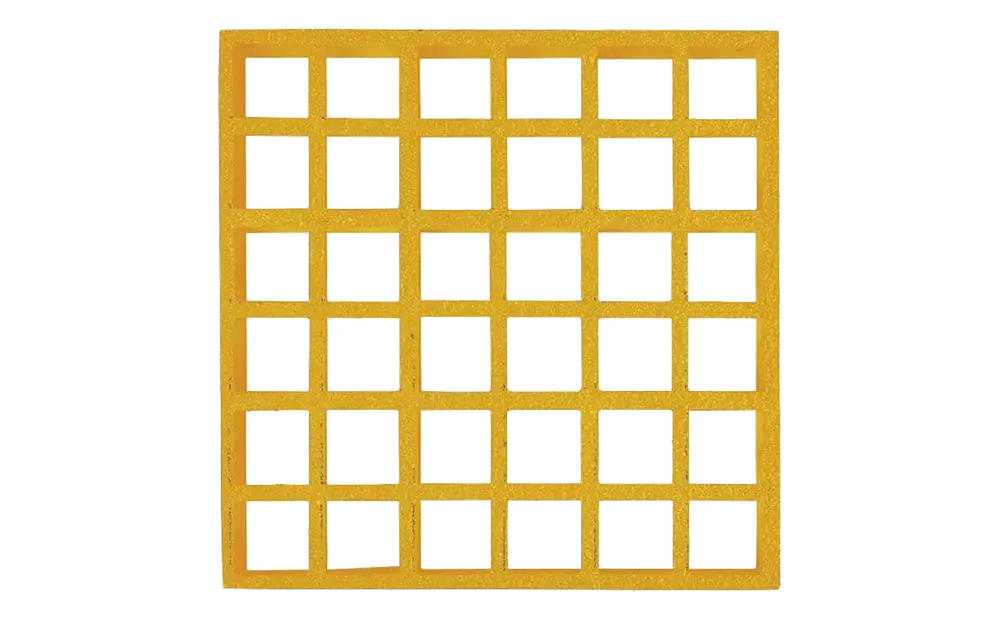

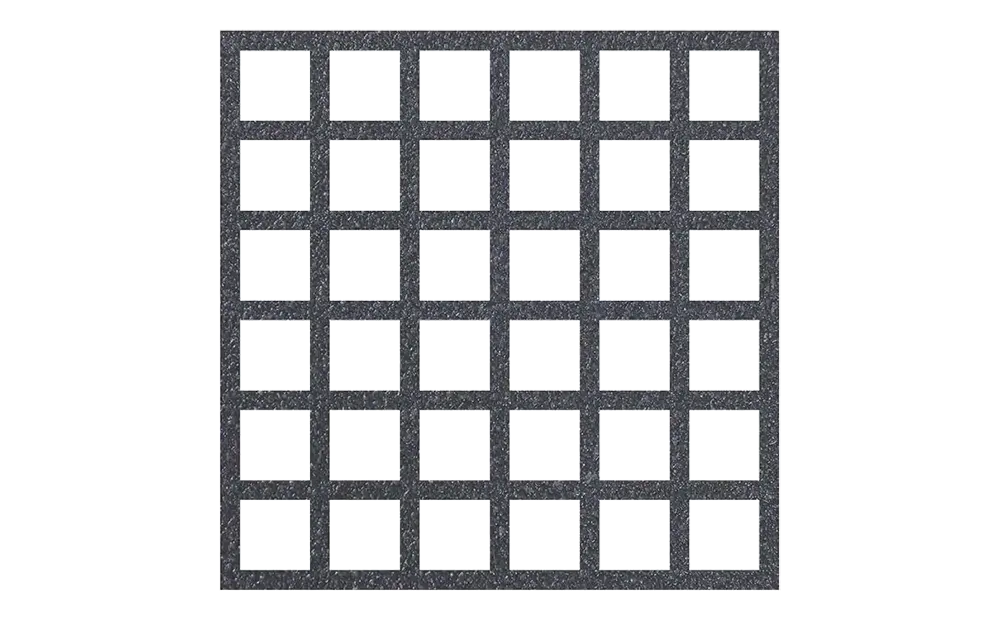

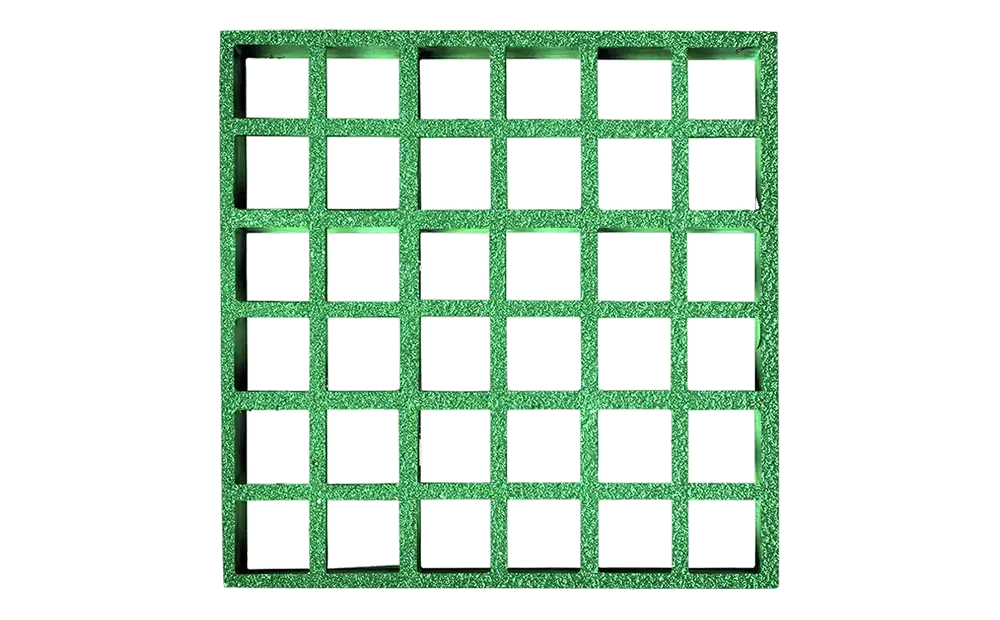

    Our Standard Mesh is a versatile product that supports a wide range of projects providing reliability, durability and a long shelf life.  It is lightweight, a 1/3 the weight of steel for convenient, fast installation; and is corrosion resistant which makes it ideal for hazardous environments; non-conductive and non-magnetic, outperforms traditional materials; impact resistant and ultra-strong for continuous use. This aesthetically pleasing design comes in 3 vibrant colours; Dark Grey, Yellow and Green.

    Patent Granted No: GB2584067.

    • Maximum Ventilation
    • Lowest Weight
    • Lowest Cost

    Reset options

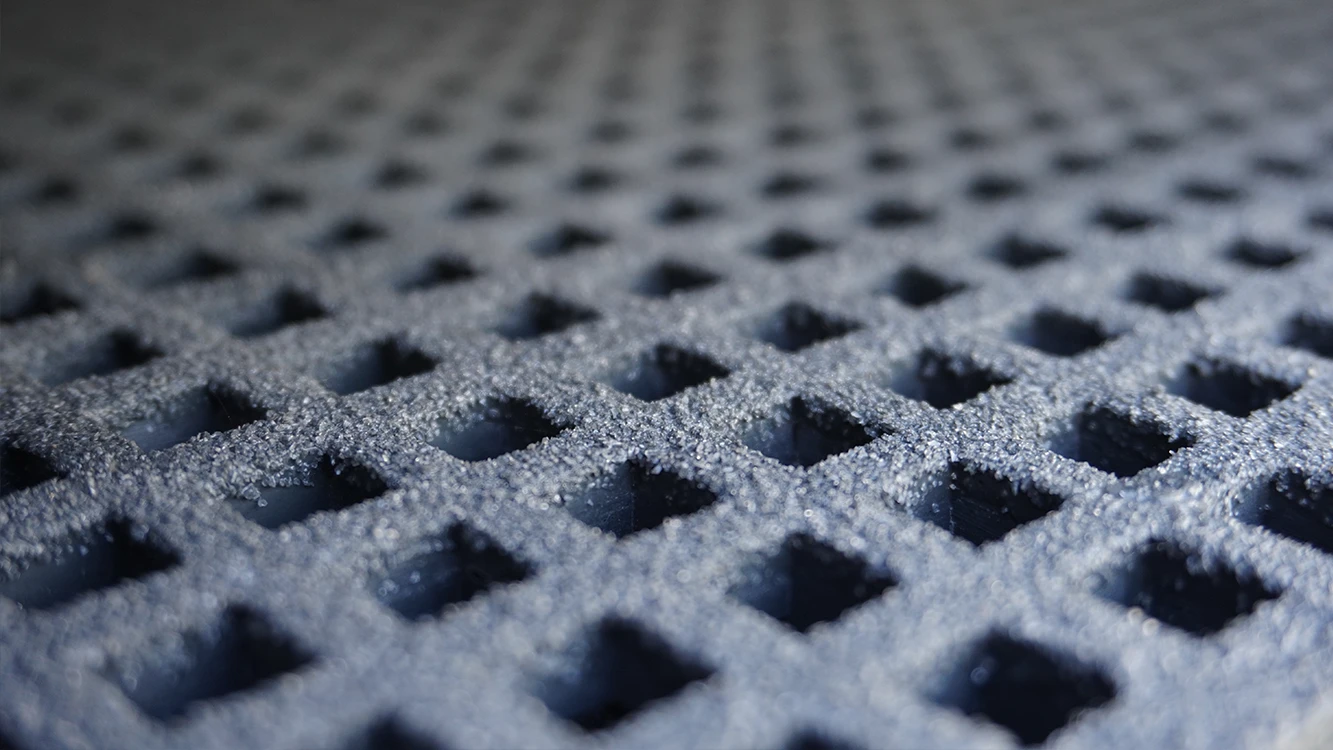

    Anti-Slip

    Anti Slip Surface

    Only 5% reduction after 1 million footfalls (BS 7976)

    Fire Rated

    Fire Rated

    Class B fire rating (BS EN 13501)

    Install

    Maintenance Free

    Improved life-cycle offers most cost-effective solution

    Sustainability

    Sustainability in Mind

    d² has led to an amazing saving of nearly 5 million kilograms of CO²

    Technical Specifications

    Technical Specifications26mm38mm50mm
    Open Hole Size / Open Area32mm / 60%31mm / 66%28mm / 63%
    Weight10.3kg per m213.2kg per m215.7kg per m2
    Max Span for 1.5kn Point Load @ 1% deflection860mm2500mm2770mm
    Max Span for 1.5kn Point Load @ 0.5% deflection500mm880mm1800mm
    Max Span for 5kn Uniformly Distributed Load (UDL) @ 1% deflection690mm1020mm1270mm
    Max Span for 5kn Uniformly Distributed Load (UDL) @ 0.5% deflection 510mm780mm970mm

    Need further Technical Information, Point Load And UDL data? Click here to use our GRP Material Data Analysis Tool

    Need to know specifics?

    Panel Specifications

    ThicknessColourLengthWidthWeightProduct Code
    26mmGreen3043mm993mm31.12kgDG02622
    26mmYellow3043mm993mm31.12kgDG02612
    26mmDark Grey 3043mm993mm31.12kgDG02603
    26mmGreen3669mm1239mm46.82kgDG02621
    26mmYellow3669mm1239mm46.82kg DG02611
    26mmDark Grey 3669mm1239mm46.82kgDG02602
    38mmYellow3054mm996mm40.15kgDG03012
    38mmGreen3054mm996mm40.15kgDG03022
    38mmDark Grey 3054mm996mm40.15kgDG03003
    38mmGreen3663mm1224mm59.18kgDG03021
    38mmYellow3663mm1224mm59.18kgDG03011
    38mmDark Grey 3663mm1224mm59.18kgDG03002
    50mmGreen3052mm1057mm50.65kgDG05022
    50mmYellow 3052mm1057mm50.65kgDG05012
    50mmDark Grey3052mm1057mm50.65kgDG05003
    50mmGreen3682mm1267mm73.24kgDG05021
    50mmYellow3682mm1267mm73.24kgDG05011
    50mmDark Grey 3682mm1267mm73.24kgDG05002

    A wide range of stainless steel fixing solutions are available to cater for the huge number of applications that our d² Dura Grating is suited to. Please review the table below to find the type most suited to your grating thickness.

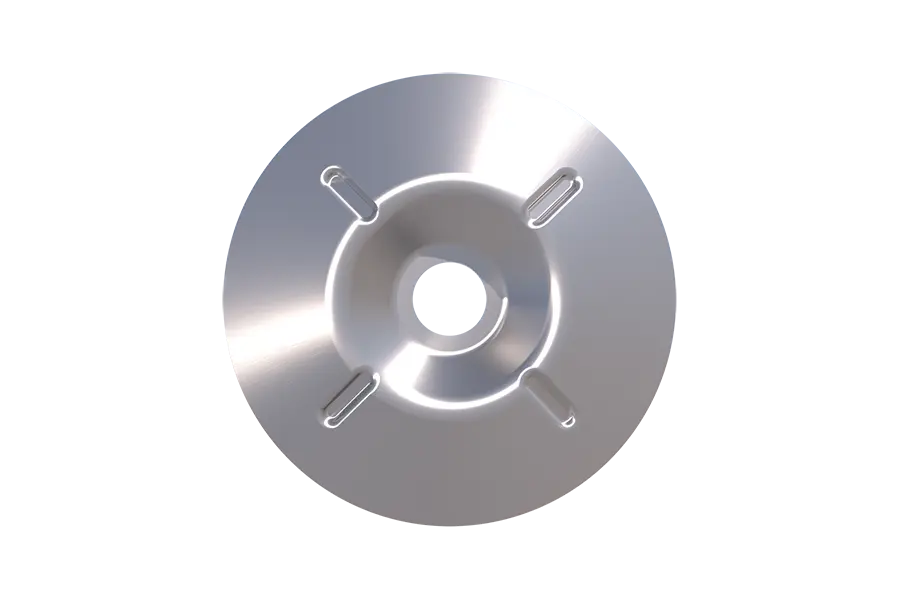

    Dome Washer

    Dome Washer

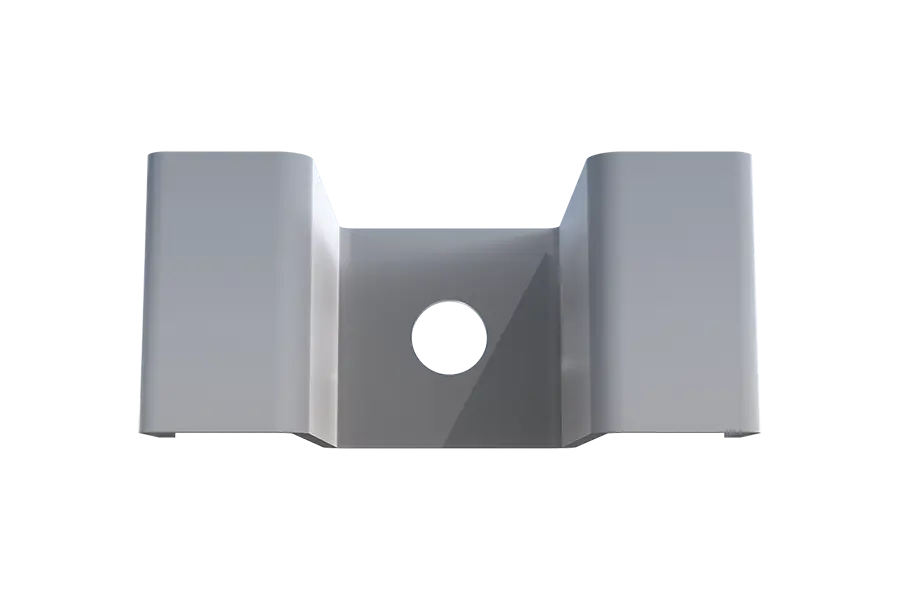

    M Clip

    M Clip

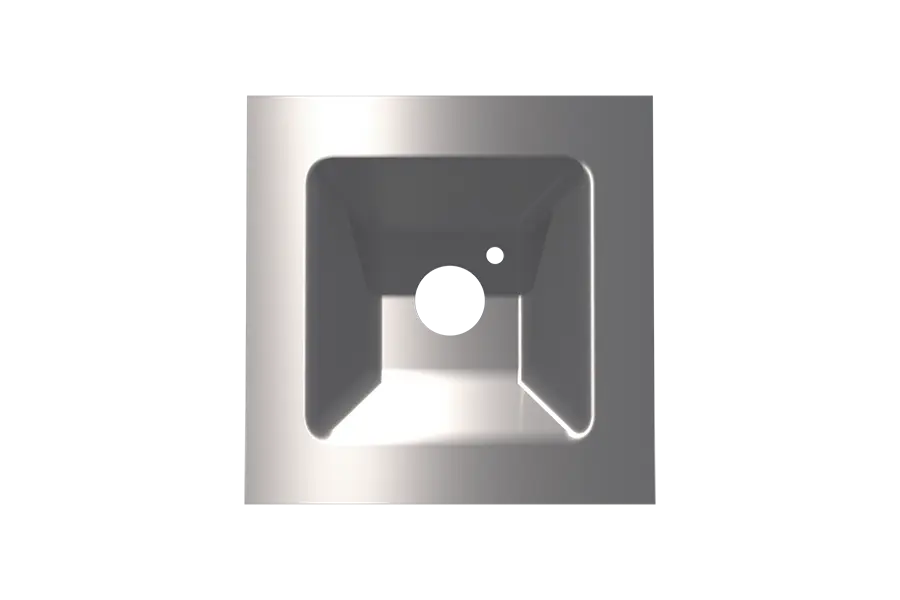

    Square Recessed Clip

    Square Recessed Clip

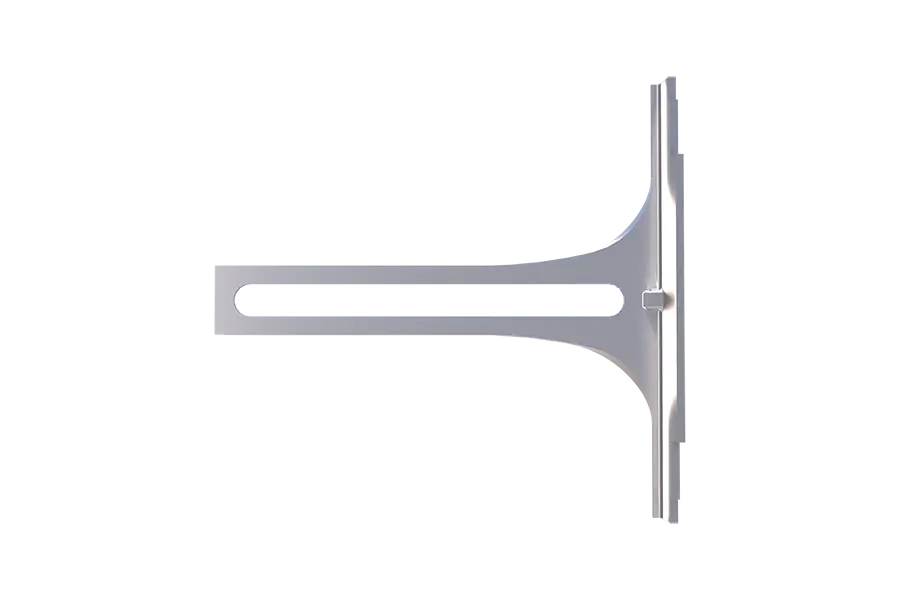

    J Clamp Straight

    Straight J Clamp

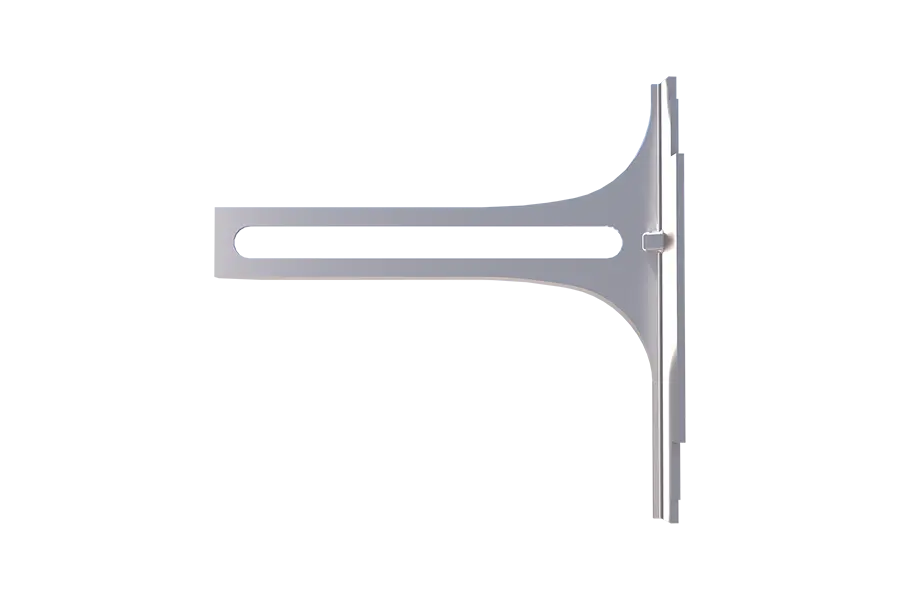

    J Clamp Offset

    Offset J Clamp

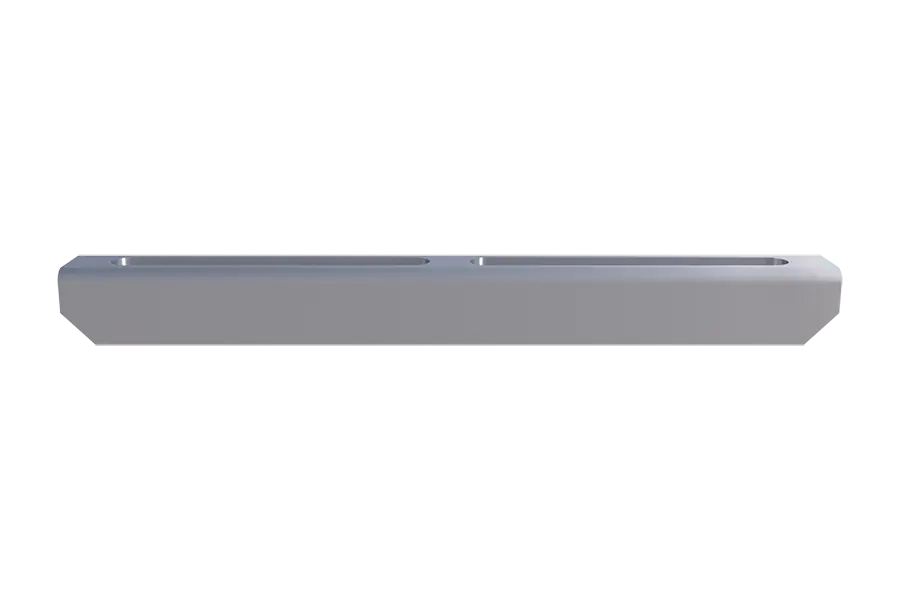

    Channel Bar Clamp

    Channel

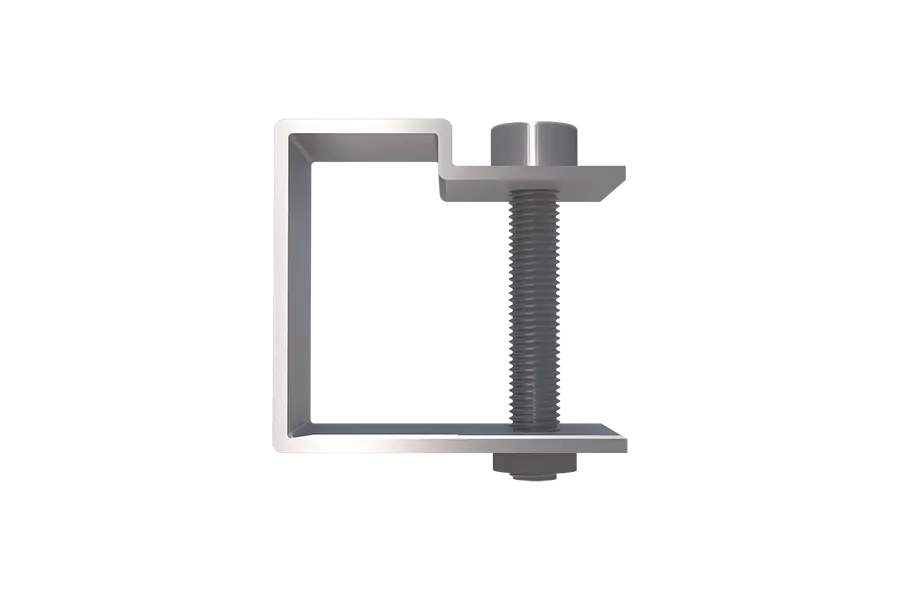

    G Clamp

    G Clamp

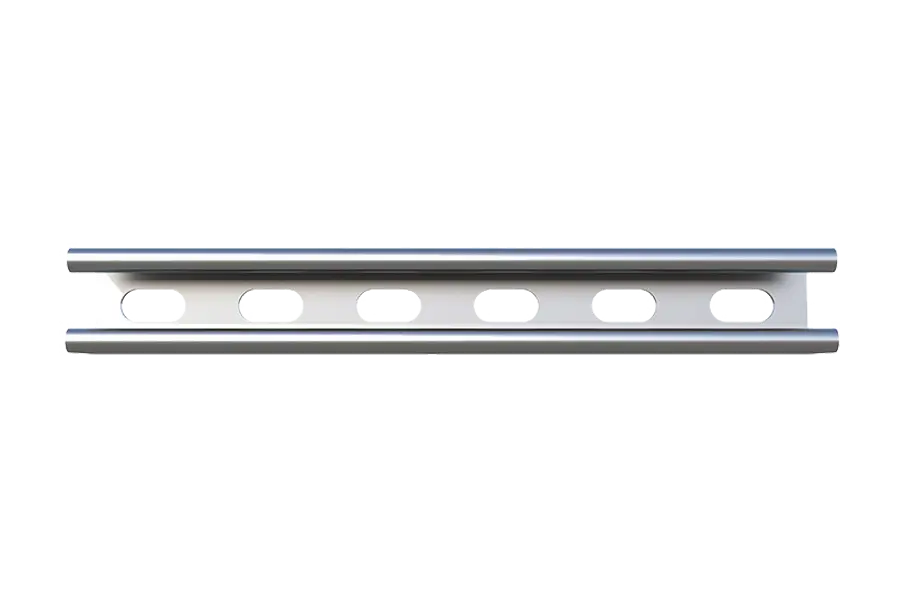

    Unistrut Bar Clamp

    Unistrut Bar

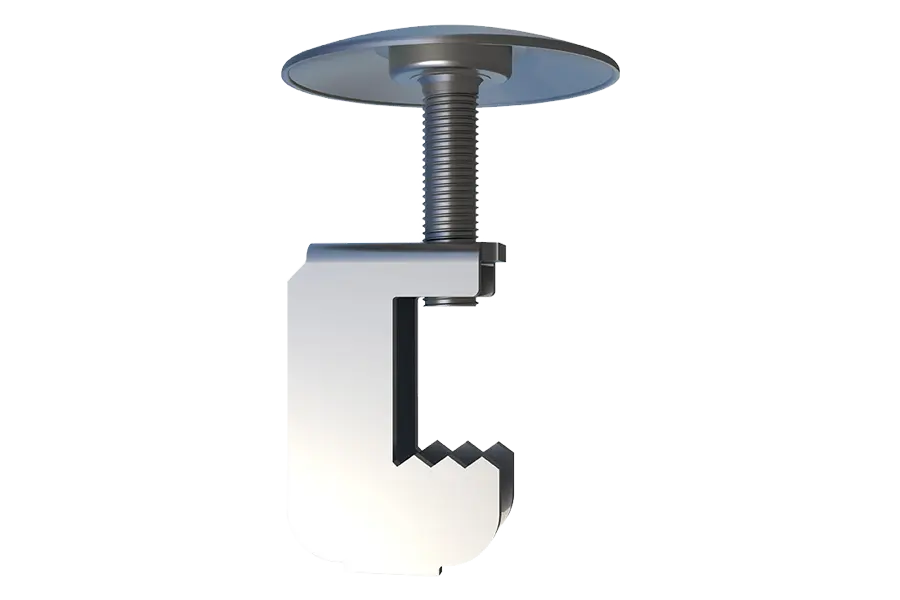

    Jaw Clamp

    Jaw Clamp

    Fixing TypeProduct Code13mm Smooth26mm38mm50mm50mm Rectangular
    Dome Washer | Small BFX01005
    Dome Washer | LargeBFX01003
    Dome Washer | Extra Large BFX02165
    M Clip | Shallow BFX01011
    M Clip | Shallow BFX01013
    M Clip | Deep BFX01014
    M Clip | Extra Deep BFX04005
    J Clamp | StraightFX01130
    J Clamp | OffsetFX01128
    Square Recessed Clip | 30x30HBFX04001
    Square Recessed Clip | 32x32HBFX01006
    Uni-Strut ClampDP05053
    Channel ClampBFX01027
    Jaw ClampFX01033
    G ClampBFX01021
    G ClampBFX01022
    G ClampBFX01023

    Key

    Recommended fixing for product
    Limited compatibility, for use only with the recommendation from your Dura representative
    Not compatible or recommended

    Our specialist services empower architects, engineers, project managers, and designers to design, specify and deploy composite products with ease. Our CAD, Structural Design and Fabrication teams support our customers make data-driven decisions about the right product specifications for their projects.

    Our installation consultation services include:

    • Pre-Installation Support, Training & Toolbox Talks
    • Contract Installation
    • Drone & Laser Scanning
    • Day 1 Installation Support
    • Site Visits & Snagging Assessments
    • Final Inspection & Sign Off

    Other value added services available at any project stage include Design & Engineering, Fabrication, Preventative Maintenance Inspections and Specialist Cutting.

    Find out more

    If you wish to return or exchange your goods, please complete the form dispatched with your order and return within 14 days to the address below. Items must be unused and in perfect, resale condition and in their original packaging, and the Returns Form must be included. Once the goods have been received and inspected to check they meet the requirements outlined above you will receive a refund (credited back to the method you paid with) or a new shipping notification for your requested exchange within 7 working days of receipt.

    The replacement item(s) will be shipped to you free of charge (once per customer). Please note we cannot exchange items of differing value. If you choose to return any items that were purchased as part of a promotion, and by returning part of your order your remaining total means you are no longer eligible for the original discount, the value of that discount will be deducted from any refunds due.

    Please note the customer is responsible for the postage to return the item to us. We recommend using a Signed For recorded postal service as Dura Composites Ltd are not liable for any items that go missing en-route back to us. Thank you for your cooperation.

    Returns should be sent to:

    Dura Composites Returns Dept.
    Dura Operations Centre,
    Telford Road,
    Clacton on Sea,
    Essex CO15 4LP

    If you have not yet been issued with your Unique Returns Number (URN) or require a Returns Form, please e-mail customercare@duracomposites.com or call us on +44 (0)1255 423601 to discuss your request.

    Please register your product to activate your warranty. Dura Composites warranty gives you peace of mind and expert back up should you ever need it, so you can rest assured you’re buying the best in design excellence, quality and durability. Please note that your warranty must be registered and activated within 30 days of your invoice date to be eligible. For details of terms and conditions, length of warranty and how to activate your warranty, click below.

    Warranty Registration

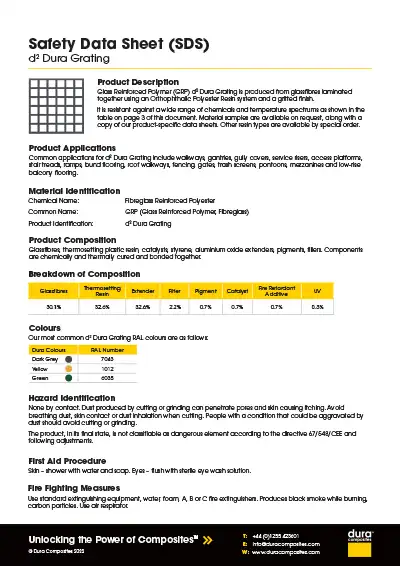

    IMAGE-Material-Safety-Data Sheet-d2-Dura-Grating

    MSDS

    d² Dura Grating MSDS

    Working safely with composite products.

    Download
    d2 Dura Grating Standard Mesh 50mm Product Datasheet Dura Composites

    Datasheets

    d² Dura Grating 50mm Standard Mesh

    d² Dura Grating is a new patent pending GRP grating series that takes structural flooring…

    Download

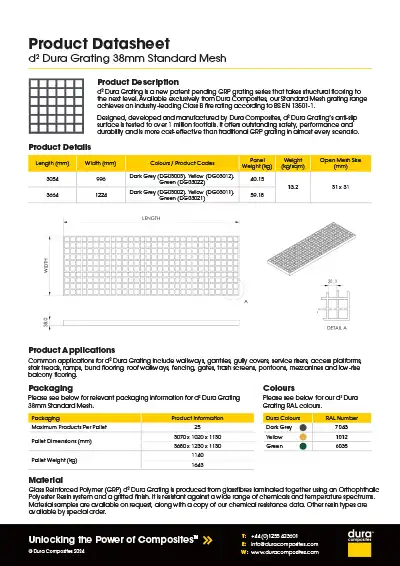

    d2-Dura-Grating-Standard-Mesh-38mm-Product-Datasheet-Dura-Composites

    Datasheets

    d² Dura Grating 38mm Standard Mesh

    d² Dura Grating is a new patent pending GRP grating series that takes structural flooring…

    Download

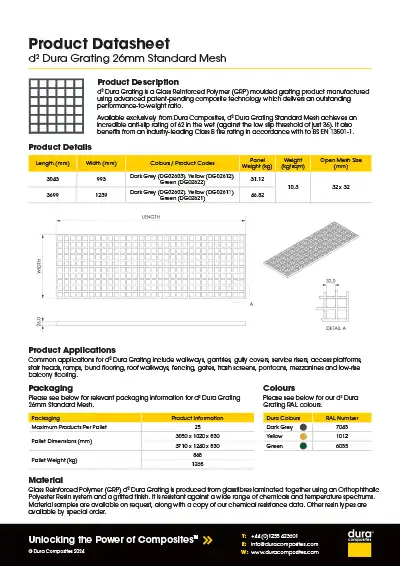

    d2 Dura Grating Standard Mesh 26mm Product Datasheet Dura Composites

    Datasheets

    d² Dura Grating 26mm Standard Mesh

    d² Dura Grating is a new patent pending GRP grating series that takes structural flooring…

    Download

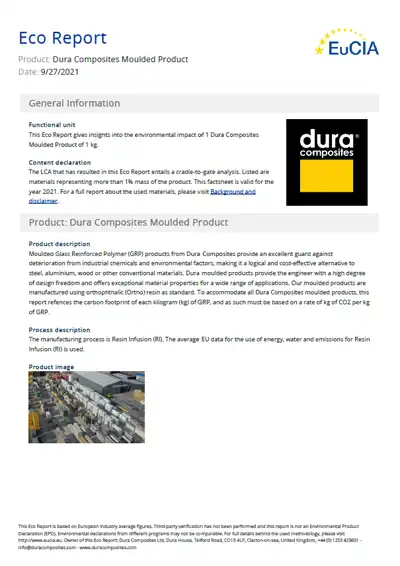

    Dura-Composites-Moulded-Product-Carbon-Report
