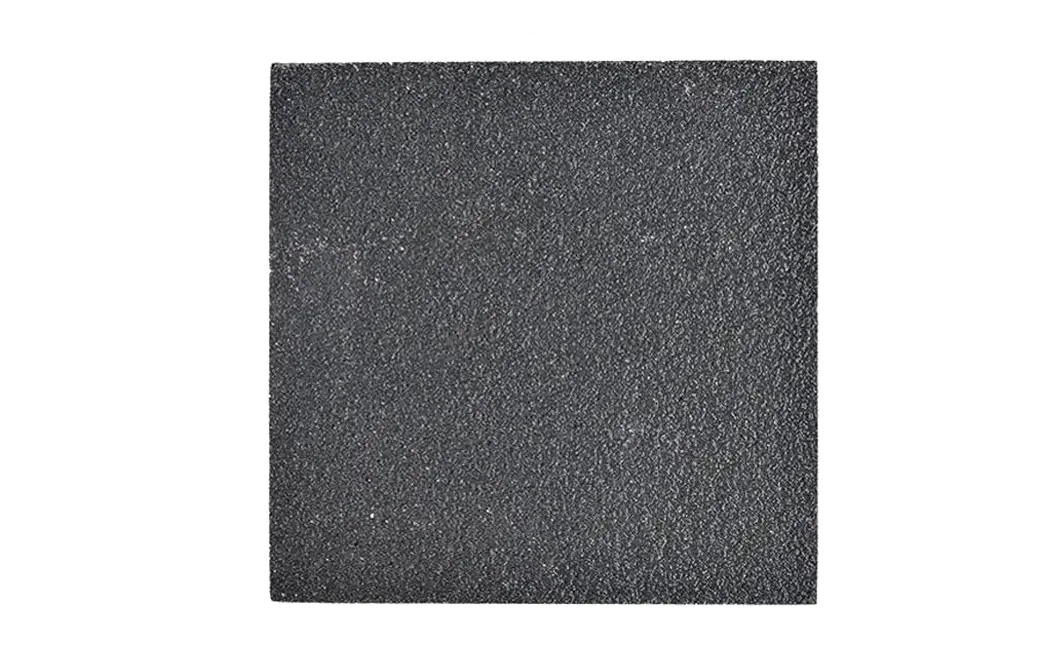

    d² Dura Grating Solid Top is a great choice for situations where no light transmittance, drainage or visual inspection of the area underneath the grating is required. Coming with a reassuring 25 year warranty.

    The gritted, anti-slip properties and uprated surface of d² Dura Grating Solid Top provides higher opacity values than open mesh grating and the solid surface prevents all objects and debris falling through. Available 29mm, 41mm and 53mm thickness in Dark Grey and Light Grey (MOQ apply).

    Patent Granted No: GB2584067.

    • Maximum Load Bearing Strength
    • Maximum Debris Defence
    • Suits All Footwear

    Reset options

    Anti-Slip

    Anti Slip Surface

    Only 5% reduction after 1 million footfalls (BS 7976)

    Fire Rated

    Fire Rated

    Class B fire rating (BS EN 13501)

    Install

    Maintenance Free

    Improved life-cycle offers most cost-effective solution

    Aesthetically Pleasing

    Safe & Secure

    Gives a sense of security for pedestrians and reduces the likelihood of vertigo

    Technical Specifications

    Solid Top Grating Thickness29mm41mm53mm53mm Rectangular Mesh
    Weight16.7kg per m221.1kg per m222.9kg per m237.0kg per m2
    Max Span for 1.5kn Point Load @ 1% deflection1450mm3400mmFull PanelFull Panel
    Max Span for 1.5kn Point Load @ 0.5% deflection830mm1960mm2600mmFull Panel
    Max Span for 5kn Uniformly Distributed Load (UDL) @ 1% deflection910mm1240mm1640mmFull Panel
    Max Span for 5kn Uniformly Distributed Load (UDL) @ 0.5% deflection 710mm890mm1240mmFull Panel

    Need further Technical Information, Point Load And UDL data? Click here to use our GRP Material Data Analysis Tool

    Need to know specifics?

    Panel Specifications

    ThicknessColourLengthWidthWeightProduct Code
    29mmDark Grey3043mm993mm50.46kgDG02903
    29mmDark Grey3699mm1239mm76.54kgDG02902
    41mmDark Grey3054mm996mm64.15kgDG02003
    41mmDark Grey3663mm1224mm94.56kgDG02002
    53mmDark Grey3052mm1057mm73.87kgDG05303
    53mmDark Grey3682mm1267mm106.83kgDG05302

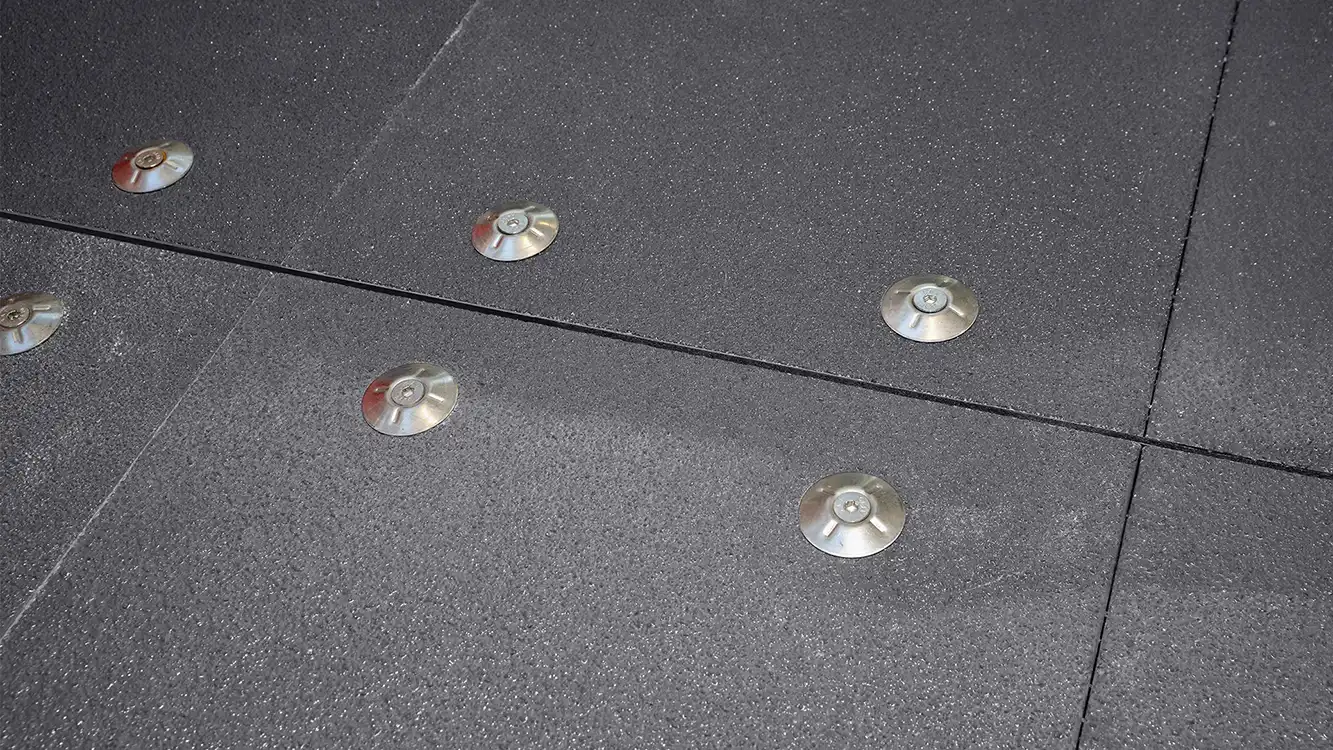

    A wide range of stainless steel fixing solutions are available to cater for the huge number of applications that our d² Dura Grating is suited to. Please review the table below to find the type most suited to your grating thickness.

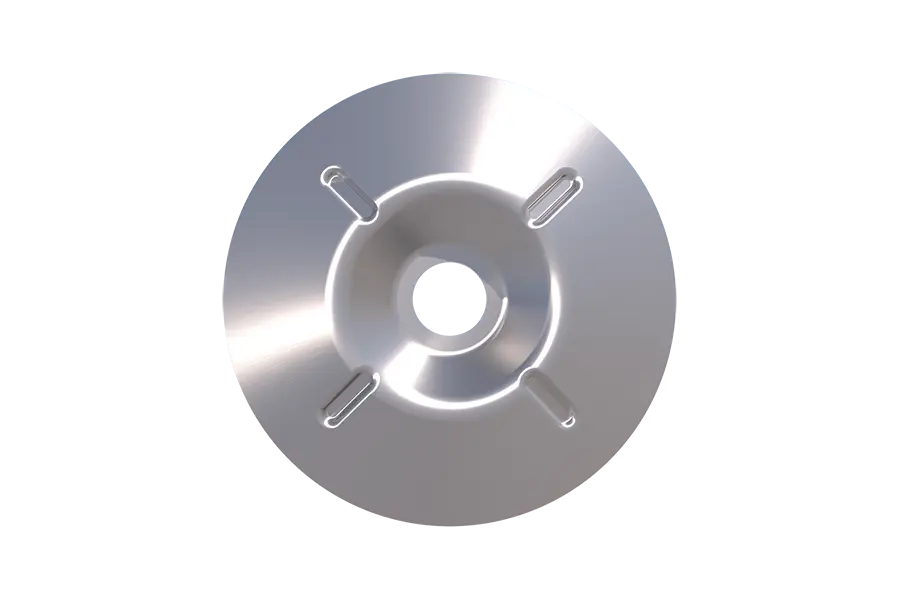

    Dome Washer

    Dome Washer

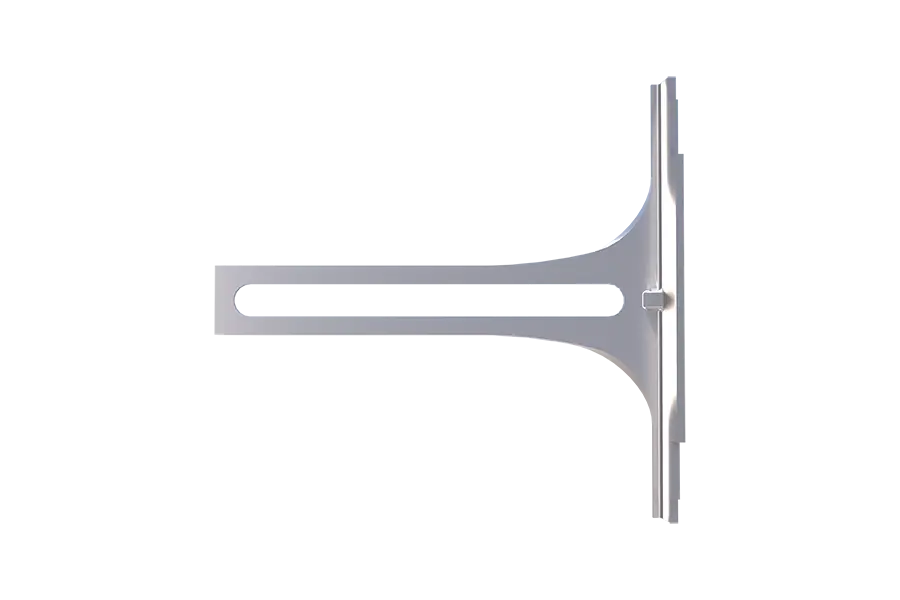

    J Clamp Straight

    Straight J Clamp

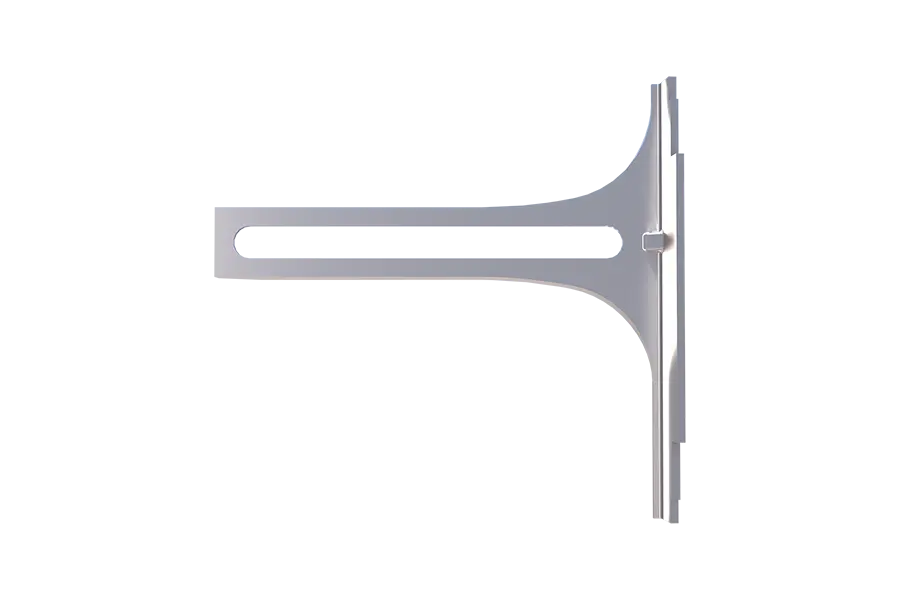

    J Clamp Offset

    Offset J Clamp

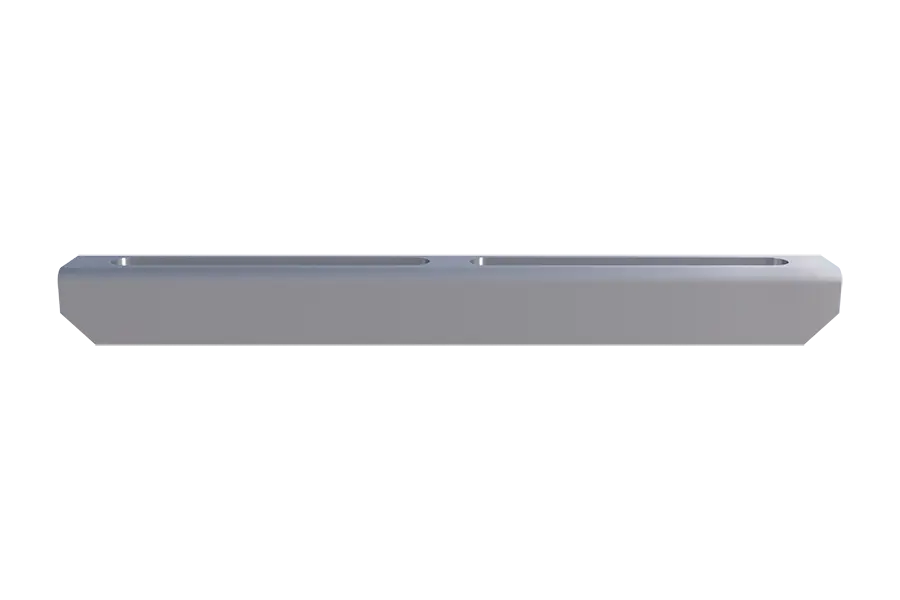

    Channel Bar Clamp

    Channel

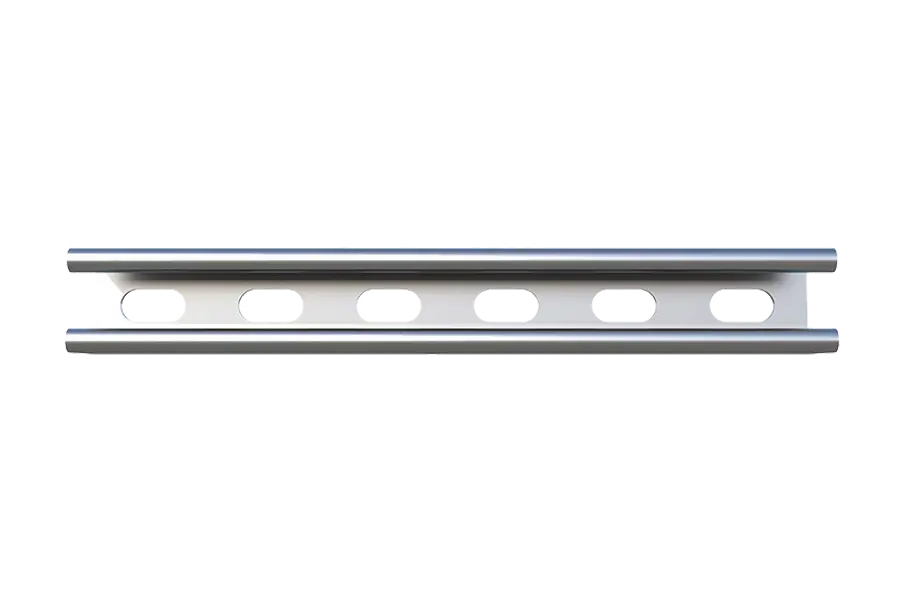

    Unistrut Bar Clamp

    Unistrut Bar

    Fixing TypeProduct Code26mm41mm53mm53mm Rectangular Mesh
    Dome Washer | Small BFX01005
    Dome Washer | LargeBFX01003
    Dome Washer | Extra Large BFX02165
    J Clamp | StraightFX01130
    J Clamp | OffsetFX01128
    Uni-Strut ClampDP05053
    Channel ClampBFX01027

    Key

    Recommended fixing for product
    Limited compatibility, for use only with the recommendation from your Dura representative
    Not compatible or recommended

    Our specialist services empower architects, engineers, project managers, and designers to design, specify and deploy composite products with ease. Our CAD, Structural Design and Fabrication teams support our customers make data-driven decisions about the right product specifications for their projects.

    Our installation consultation services include:

    • Pre-Installation Support, Training & Toolbox Talks
    • Contract Installation
    • Drone & Laser Scanning
    • Day 1 Installation Support
    • Site Visits & Snagging Assessments
    • Final Inspection & Sign Off

    Other value added services available at any project stage include Design & Engineering, Fabrication, Preventative Maintenance Inspections and Specialist Cutting.

    Find out more

    Delivery

    Standard lead time on orders from our Webshop is 3 – 5 working days (Mainland UK; stock dependent).

    Large orders may be subject to palletised deliveries which are to the property kerbside only. Your order will need to be unloaded by hand (hand-balled) off the lorry side. A person must be present to help unload the goods and sign for receipt. Delivery drivers are not insured to help unload the goods beyond the property kerbside.

    For our Dura Deck Tile products we offer free delivery to the majority of mainland UK. Unfortunately, Dura Composites is unable to offer free delivery to certain areas – including Northern Ireland, the Scottish Highlands & Offshore Islands, Isle Of Wight, Isle of Man, the Channel Islands and the Isles of Scilly.

    If your postcode prefix is listed below we would be happy to provide a delivery quote. Please call our Websales Customer Care Team on 01255 446838 to place your order. Postcodes subject to delivery charge include:

    • Northern Ireland (All BT postcodes)
    • Scottish Highlands (AB30, AB33 – AB38, AB41 – AB56, FK17 – FK21, IV1 – IV63, PA20 – PA80, PH15 – PH27, PH30 – PH45, PH49, PH50, KW1 – KW18)
    • Scottish Offshore (HS1 – HS9, KA27, KA28, ZE1 – ZE3)
    • Scottish Borders (All TD and DG postcodes)
    • Isle of Man (All IM postcodes)
    • Isle of Wight (PO30 to PO41)
    • Isles of Scilly (TR21 to TR25)
    • Channel Islands incl. Jersey, Guernsey, Alderney, Sark & Herm (All JE and GY postcodes)

    Returns

    If you wish to return or exchange your goods, please complete the form dispatched with your order and return within 14 days to the address below. Items must be unused and in perfect, resale condition and in their original packaging, and the Returns Form must be included. Once the goods have been received and inspected to check they meet the requirements outlined above you will receive a refund (credited back to the method you paid with) or a new shipping notification for your requested exchange within 7 working days of receipt.

    The replacement item(s) will be shipped to you free of charge (once per customer). Please note we cannot exchange items of differing value. If you choose to return any items that were purchased as part of a promotion, and by returning part of your order your remaining total means you are no longer eligible for the original discount, the value of that discount will be deducted from any refunds due.

    Please note the customer is responsible for the postage to return the item to us. We recommend using a Signed For recorded postal service as Dura Composites Ltd are not liable for any items that go missing en-route back to us. Thank you for your cooperation.

    Returns should be sent to:

    Dura Composites Returns Dept.
    Dura Operations Centre,
    Telford Road,
    Clacton on Sea,
    Essex CO15 4LP

    If you have not yet been issued with your Unique Returns Number (URN) or require a Returns Form, please e-mail customercare@duracomposites.com or call us on +44 (0)1255 423601 to discuss your request.

    Please register your product to activate your warranty. Dura Composites warranty gives you peace of mind and expert back up should you ever need it, so you can rest assured you’re buying the best in design excellence, quality and durability. Please note that your warranty must be registered and activated within 30 days of your invoice date to be eligible. For details of terms and conditions, length of warranty and how to activate your warranty, click below.

    Warranty Registration

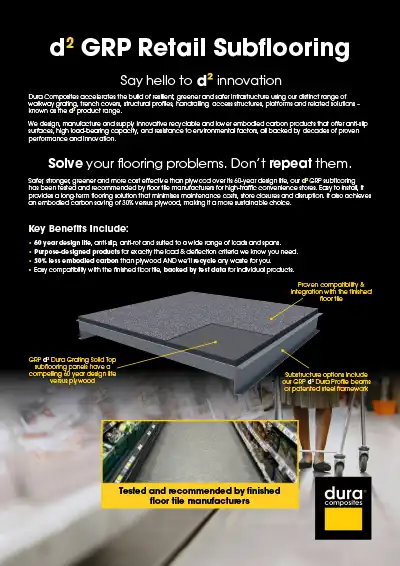

    Retail-Subflooring-Booklet

    Flyers

    d² GRP Retail Subflooring

    Dura Composites accelerates the build of resilient, greener and safer infrastructure using our distinct range…

    Download

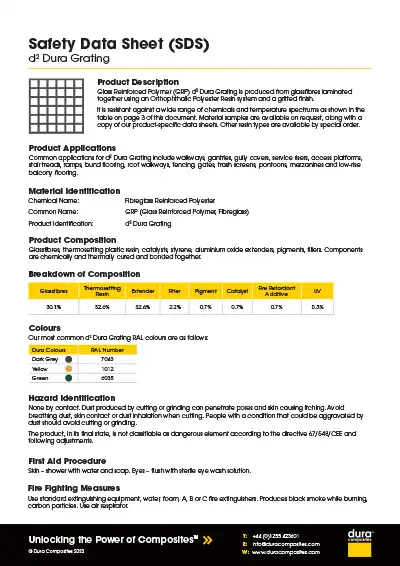

    IMAGE-Material-Safety-Data Sheet-d2-Dura-Grating

    MSDS

    d² Dura Grating MSDS

    Working safely with composite products.

    Download

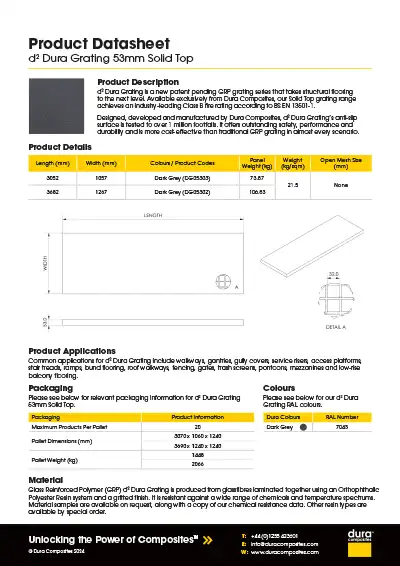

    d2 Dura Grating Solid Top 53mm Product Datasheet Dura Composites

    Datasheets

    d² Dura Grating 53mm Solid Top

    d² Dura Grating is a new patent pending GRP grating series that takes structural flooring…

    Download
    d2 Dura Grating Solid Top 41mm Product Datasheet Dura Composites

    Datasheets

    d² Dura Grating 41mm Solid Top

    d² Dura Grating is a new patent pending GRP grating series that takes structural flooring…

    Download

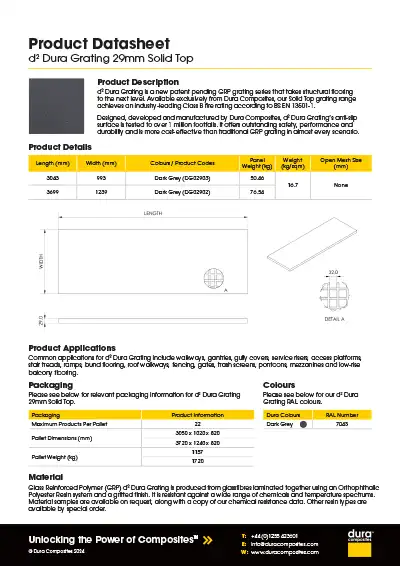

    d2-Dura-Grating-Solid-Top-29mm-Product-Datasheet-Dura-Composites

    Datasheets

    d² Dura Grating 29mm Solid Top

    d² Dura Grating is a new patent pending GRP grating series that takes structural flooring…

    Download

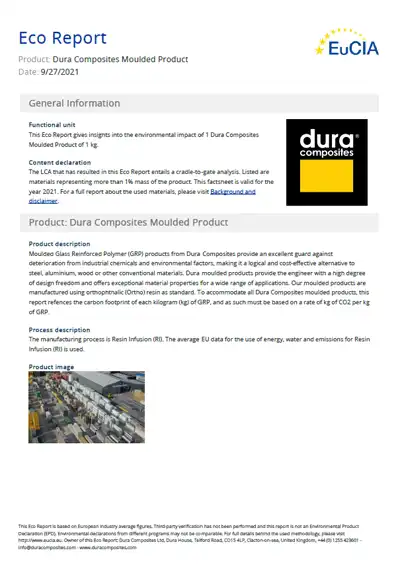

    Dura-Composites-Moulded-Product-Carbon-Report

    Certificates

    Moulded GRP Carbon Report

    Embodied Carbon Report of our Moulded GRP Products.

    Download

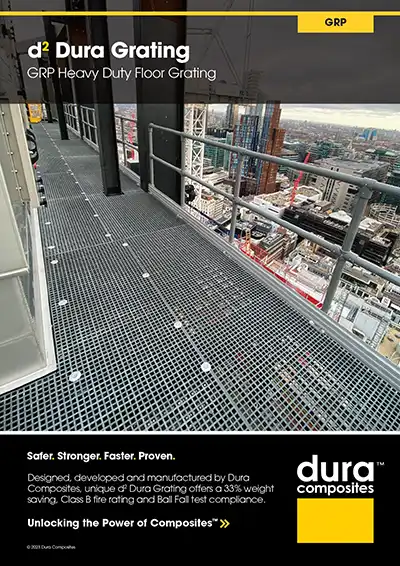

    Front Cover Image For d2 Dura Grating Brochure Dura Composites
