    Access Structures

    We provide the most comprehensive material data in the industry, to help engineers have confidence in designing safe structures with our d² composite products.

    We design, fabricate and supply cost-effective, practical and safe GRP access structures using our market-leading d² Dura Profile, Dura Grating and Dura Handrailing components. Heavy duty, non-conductive, non-corrosive and chemically resistant, they provide a lightweight and durable alternative to steel, other metals or wood.

    Our specialist fabrication team boasts an impressive project portfolio fabricated within our East Anglian workshop, where Dura Composites is certified to ISO-9001 – the International standard for Quality Management. and use the latest technology, such as computer numerical controlled (CNC) machines, to produce intricate and bespoke designs.

    We offer a number of stepover access systems that can be easily specified on our website using our simple configurator. Our standard duty Access Structures have been designed to the stair configuration, height, and obstacle width of your specific project. Simply select your project site parameters to view available designs with pricing. Both straight and U-Shaped 180° turn configurations are available.

    We also offer a bespoke access structure fabrication service. Our most commonly requested bespoke GRP fabrications include Driver Hop-Ups, Machine Access, Embankment Staircases, Vehicle Access Steps, Roof Walkways, Trackside Walkways, Mezzanines, Handrailing, Gantries, Stepovers and Ladders.

    3D Model: Dura Embankment Steps

    Long Performance

    Long-Term Performance

    All individual components are individually tested to ensure performance

    Install

    Exacting Assembly

    Assembled in our state-of-the-art Fabrication Centre in East Anglia, UK

    Anti-Slip

    Anti-Slip

    All flooring components have been anti-slip tested for the equivalent of over 1m footfalls

    Applications

    • 1Elevated Platforms
    • 2Step Overs
    • 3Embankment Steps
    • 4Driver Access Platforms
    • 5Ladders
    • Elevated Platforms

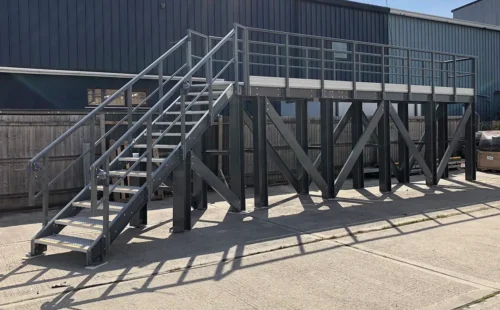

      Elevated Platforms

      When it comes to elevated platforms, we have extensive in-house design and fabrication capabilities which deliver high-performance access structures at height, including GRP Machine Access Platforms, Driver Access Platforms, Mezzanines, Embankment Staircases, Maintenance Platforms, Gantries or any other heavy-duty non-conductive structure required in the industrial environment.

      Read more

    • Step Overs

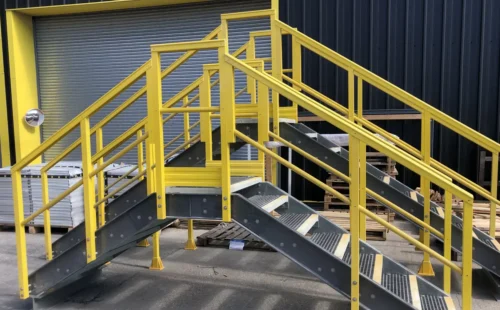

      Step Overs

      We are the experts in the design, fabrication and supply of GRP step-over access systems, up and over stairs and step units to help navigate obstacles such as pipework, plant equipment, bund walling or changes in level and to provide safe access.

      Read more

    • Embankment Steps

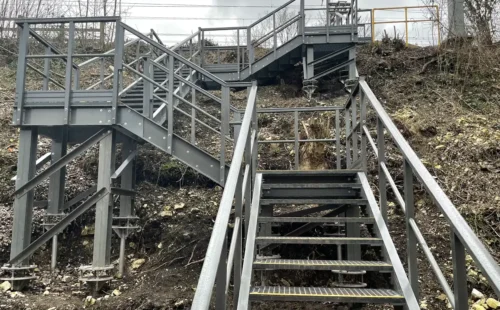

      Embankment Steps

      Our GRP embankment steps are fabricated from our d² GRP grating and profile sections to provide safe pedestrian access up and down railway embankments and steep slopes. We can supply fully fabricated or in kit format for simple installation on site for Network Rail Infrastructure Access Points and our designs include intermediate stair landings, self-closing gates and handrailing.

      Read more

    • Driver Access Platforms

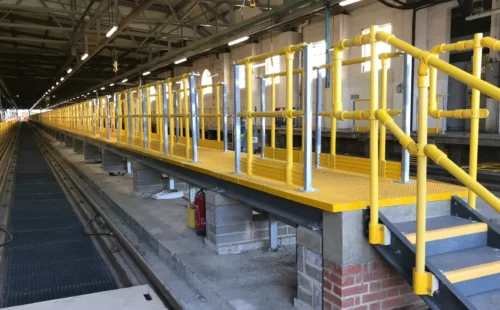

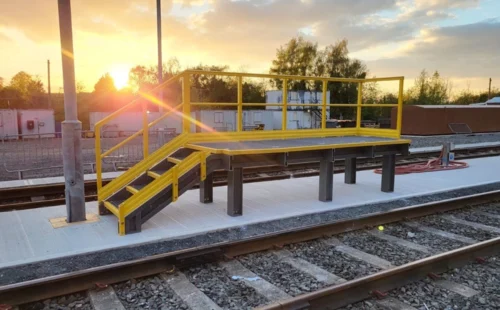

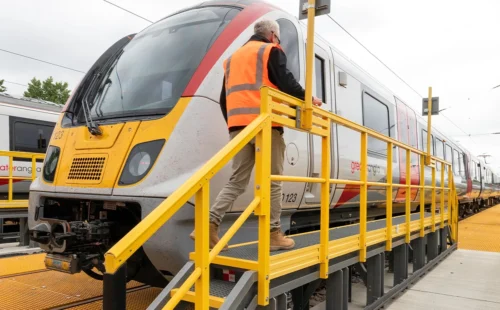

      Driver Access Platforms

      We offer a range of efficiently-designed GRP driver hop-ups which can be employed by guards, train drivers and cleaning crews for safe access to (or exit from) trains. All components are individually tested to ensure performance, and can be pre-assembled in our state-of-the-art UK Fabrication Centre, where Dura Composites is certified to ISO-9001 – the International standard for Quality Management.

      Read more

    • Ladders

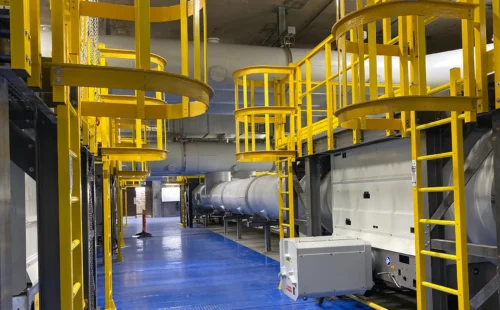

      GRP hooped ladders

      Ladders

      Dura GRP Ladders are manufactured using our market-leading fibreglass GRP pultruded profiles, which produce lightweight, chemically resistant, easily installed ladder solutions. Supplied in any specified length, our access ladders can be equipped with walk throughs, safety cages and returns.

      Read more

    Projects

    Find out how our market-leading composite products and applications are reshaping the industry.

    FAQ

    We design your GRP structure to your specific project requirements and can fully support modular installation methods if required. All fabricated structures can be supplied with detailed dimensions and weights, including overall footprint size to ensure it will fit within your overall planned design.

    GRP fabrications can be free-standing (depending on the overall size and required application). Our specialist fabrication team can advise on the individual requirements of specific scenarios to ensure safety and structural stability is not compromised.

    Load requirements are factored into the structural design based on customer requirements and if our standard duty fabrications are not suitable for your project, we can design bespoke solutions. The 45mm mini mesh d² Dura Grating of the landings and treads of our standard duty stepovers for example are designed to be compliant with BS 6399 to meet 2.5Kn loadings (at 0.5% / L200) deflection. This is around 30% stronger than the standard 38mm grating used by other manufacturers. Handrail loadings achieve a 17mm Deflection at 0.36kN and landings achieve a 1.5kN Point Load / 2.5kN UDL @L/200.

    All Dura Composites structures are fully assembled in our workshop and can then be partially disassembled and shipped in simple batched or modular format to assist with speed of install. If you plan to self-assemble on site, simply let us know prior to placing your order and we’ll factor self-assembly methods into our design process. We’ll also supply full fabrication drawings to make sure you can install with confidence. Thanks to the versatility of our GRP and its lightweight nature, it can be affixed to virtually any substrate including concrete, steel framing and tarmac.

    Yes, we have a dedicated specialist installation team. All installation teams are supervised by an SSSTS trained supervisor, and all operatives carry CSCS cards, so you can be confident that Dura Composites adheres to safe working practices on site. If installation conditions are particularly challenging, we can conduct a site survey and provide additional guidance which may influence or improve the planned design. We also have a team of CAD experts and an in-house GRP structural design resource to ensure your planned fabrication meets all the safety and loading requirements for your specific application.

    Brochures

    High Rise Solutions

    High performance composite product solutions for High Rise buildings, including riser voids, balconies & terraces,…

    Download

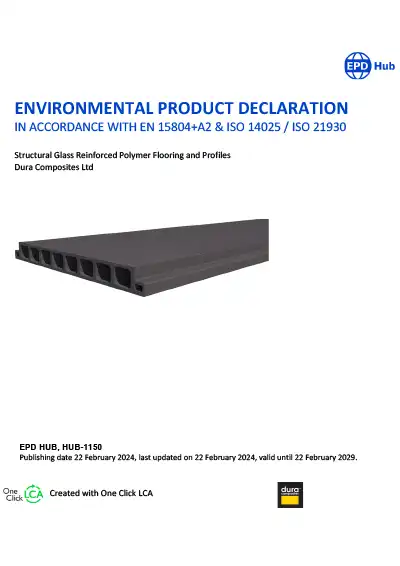

    EPD_Pultruded Grating

    Certificates

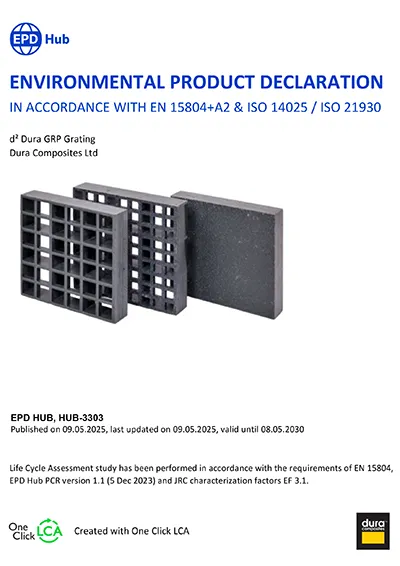

    EPD For Pultruded GRP

    This is an Environmental Product Declaration in accordance with EN 15804+A2 & ISO 14025/ISO 21930…

    Download

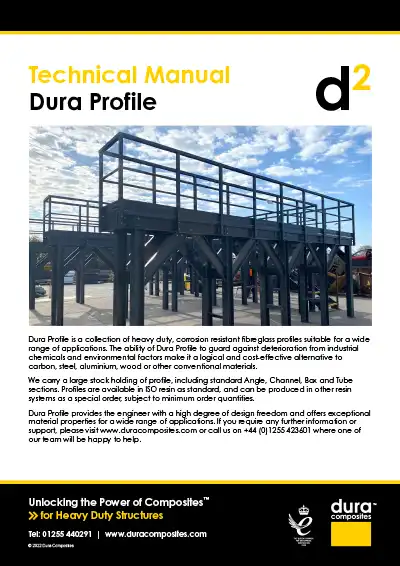

    Dura Profile Technical Manual Dura Composites

    Installation Manuals

    Dura Profile

    This Dura Profile Install Manual enables designers and contractors to gather the necessary material data,…

    Download
    Front Cover Image For d2 Dura Grating Brochure Dura Composites

    Brochures

    d² Dura Grating

    Designed, developed and manufactured by Dura Composites, unique d² Dura Grating offers a 33% weight…

    Download
    Front Cover Image For Anti-Slip Flooring & Handrail Product For Industry Brochure Dura Composites

    Brochures

    Anti-Slip Flooring & Handrail Products for Industry

    High performance composite flooring and walkway solutions including trench covers, A2 fire rated decking, access…

    Download
    Front Cover Image For Access Structures Brochure Dura Composites

    Brochures

    d² GRP Access Structures

    Cost-effective, practical and safe GRP platforms, walkways, access structures & bespoke fabrications constructed from our…

    Download

    Our Specialists

    Our innovative recyclable products can help accelerate the construction of critical infrastructure. Talk to our experienced team about how you can tap into our specialist knowledge and engineering capability for your project.
