    Phenolic Grating Standard Mesh

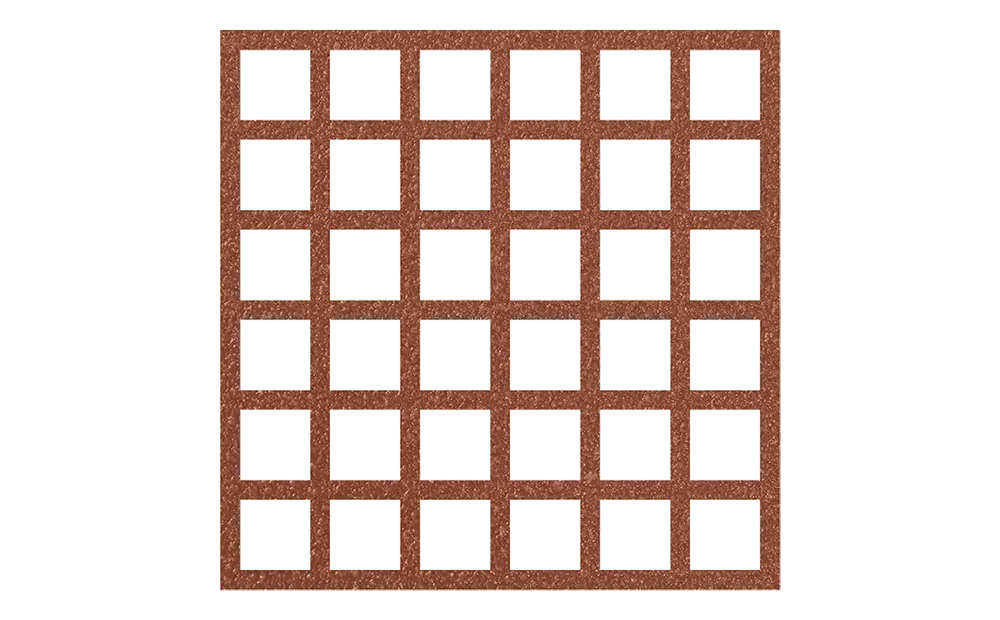

    d² Dura Phenolic Grating in Dark Russet

    Ideal for Tunnels, Basements & Offshore Projects

    Engineered to withstand prolonged fire exposure without sustaining structural damage, phenolic grating can achieve maximum fire resistance, low smoke and low toxic fume emissions.

    Our Phenolic Grating safety flooring is manufactured from high strength Glass Reinforced Plastic (GRP) and is an excellent alternative to maintenance-intensive metal grating applications.

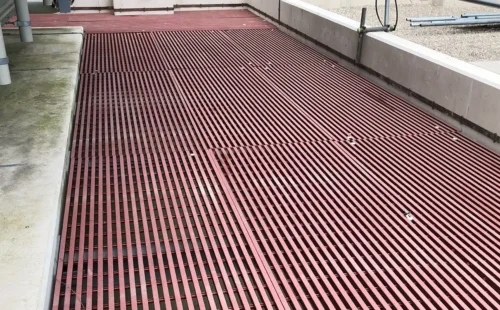

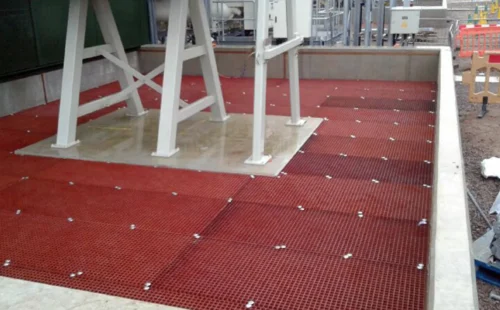

    It offers superior resistance to flame and high temperatures whilst maintaining its structural integrity, making it ideal for use on platforms at height. Widely installed in offshore production platforms, mobile offshore drilling units, tunnels and within mass transit systems, it also emits lower levels of smoke emissions than other types of GRP grating. d² Dura Phenolic Grating meets the requirements of BS 6853, BS 476 class 0 and is registered for use within the London Underground system.

    • Colour: Dark Russet (for easy identification on site)
    • Length: 3660mm
    • Width: 1220mm
    • Thickness: 38mm
    • Panel Weight: 85.10kg
    • Weight/m²: 19.06kg
    Fire Rated

    Fire Rated Performance

    Engineered to withstand prolonged fire exposure with low smoke and toxic fume emissions.

    Anti-Slip

    Anti Slip Surface

    Only an incredible 5% reduction in slip performance after 1 million footfalls (BS 7976)

    Strong

    High Strength

    Superior structural performance with an exceptional strength-to-weight ratio.

    Non-Conductive

    Non-Conductive

    Perfect for reducing risk in high-voltage areas and hazardous environments.

    Need to know specifics?

    A wide range of stainless steel fixing solutions are available to cater for the huge number of applications that our d² Dura Grating is suited to. Please review the table below to find the type most suited to your grating thickness.

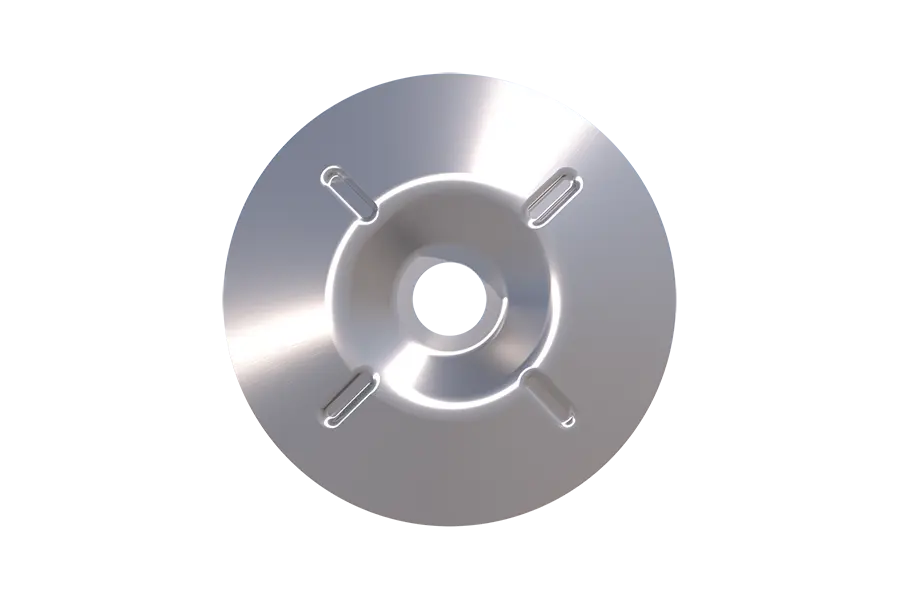

    Dome Washer

    Dome Washer

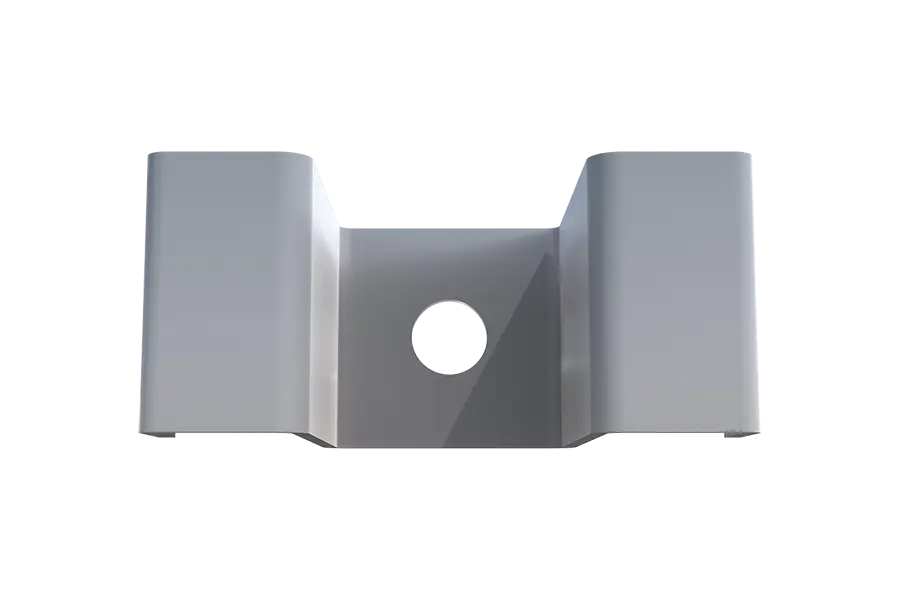

    M Clip

    M Clip

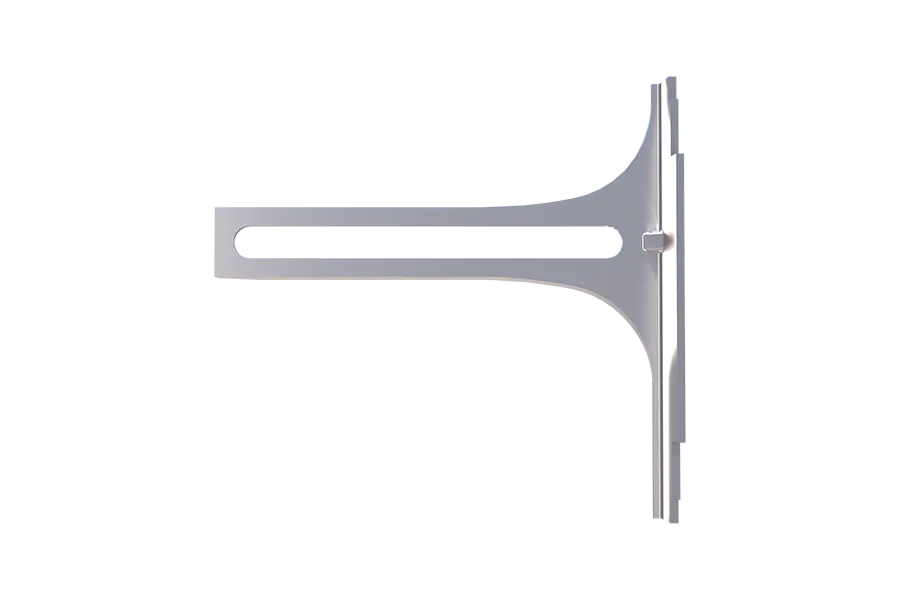

    J Clamp Offset

    Offset J Clamp

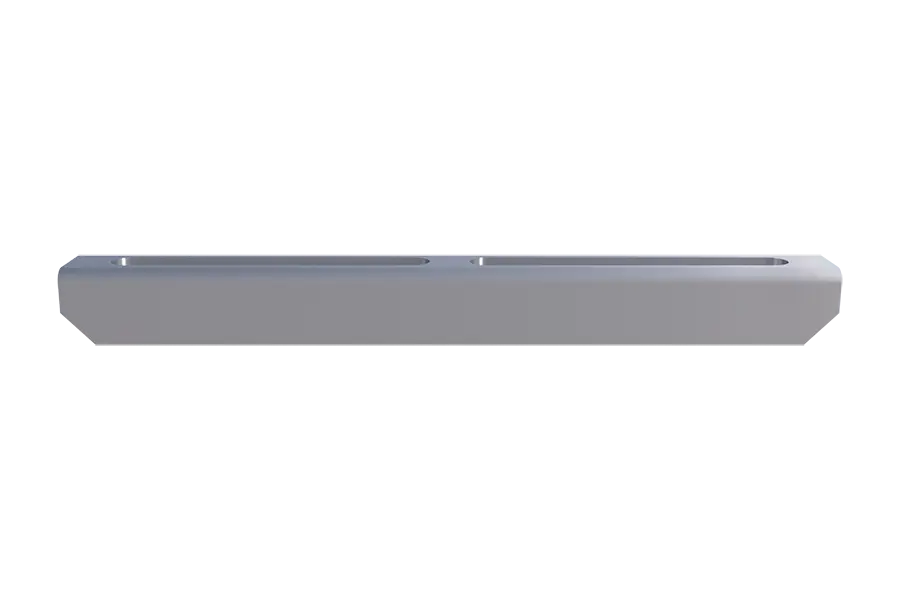

    Channel Bar Clamp

    Channel

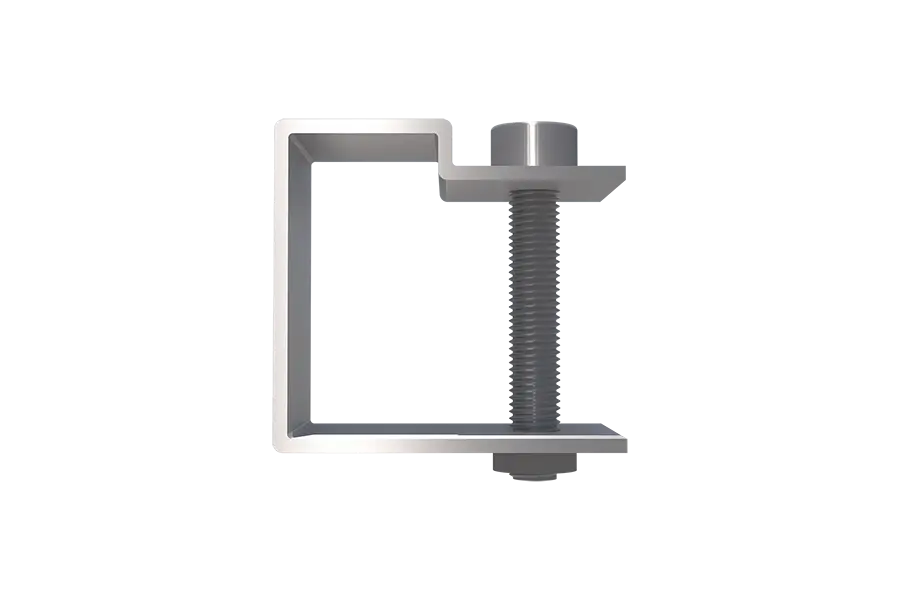

    G Clamp

    G Clamp

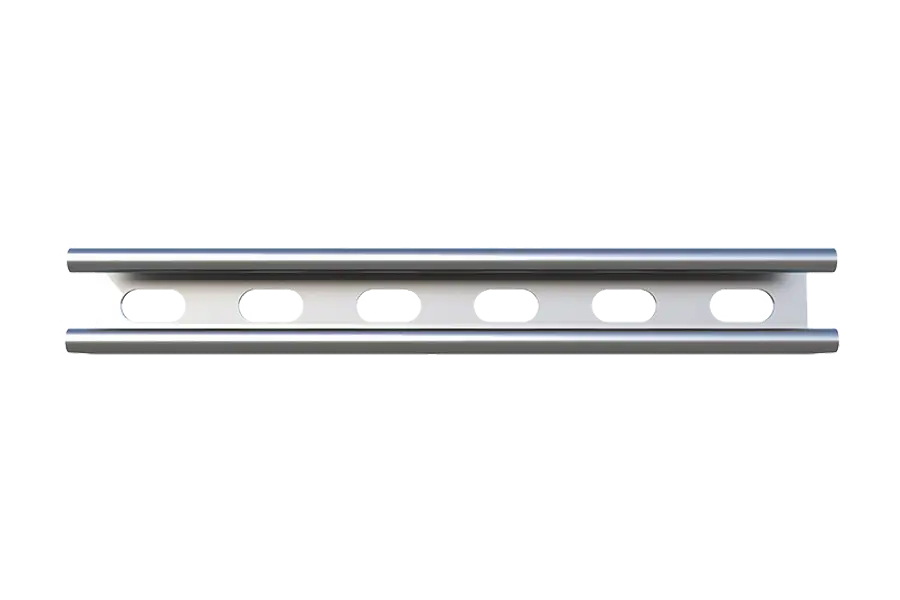

    Unistrut Bar Clamp

    Unistrut Bar

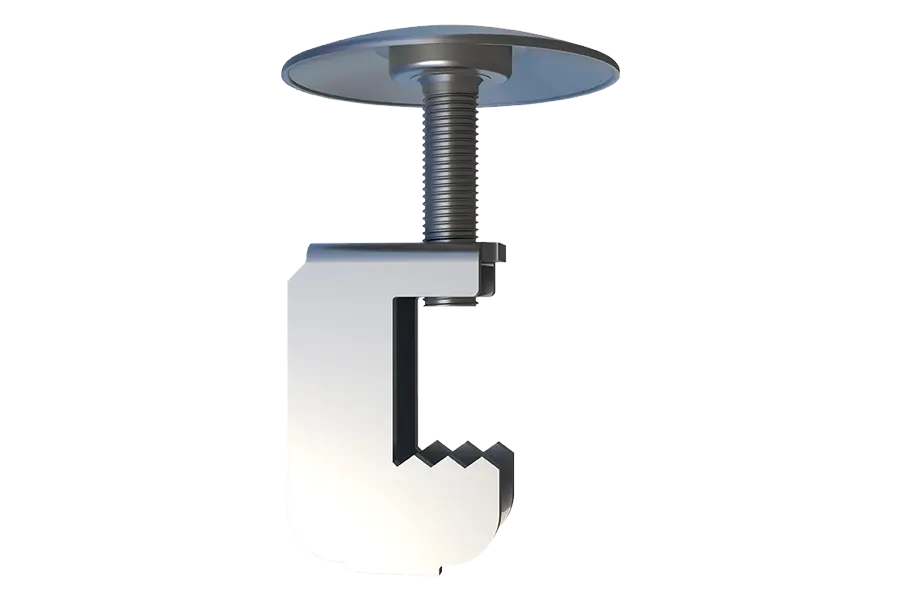

    Jaw Clamp

    Jaw Clamp

    Fixing TypeProduct Code38mm
    Dome Washer | LargeBFX01003
    Dome Washer | Extra Large BFX02165
    M Clip | Standard ShallowBFX01011
    M Clip | Standard DeepBFX01013
    M Clip | Standard Extra DeepBFX01014
    J Clamp | OffsetFX01128
    Uni-Strut ClampDP05053
    Channel ClampBFX01027
    Jaw ClampFX01033
    G ClampBFX01022

    Key

    Recommended fixing for product

    Our specialist services empower architects, engineers, project managers, and designers to design, specify and deploy composite products with ease. Our CAD, Structural Design and Fabrication teams support our customers make data-driven decisions about the right product specifications for their projects.

    Our installation consultation services include:

    • Pre-Installation Support, Training & Toolbox Talks
    • Contract Installation
    • Drone & Laser Scanning
    • Day 1 Installation Support
    • Site Visits & Snagging Assessments
    • Final Inspection & Sign Off

    Other value added services available at any project stage include Design & Engineering, Fabrication, Preventative Maintenance Inspections and Specialist Cutting.

    Find out more

    Delivery

    Standard lead time on orders from our Webshop is 3 – 5 working days (Mainland UK; stock dependent).

    Large orders may be subject to palletised deliveries which are to the property kerbside only. Your order will need to be unloaded by hand (hand-balled) off the lorry side. A person must be present to help unload the goods and sign for receipt. Delivery drivers are not insured to help unload the goods beyond the property kerbside.

    For our Dura Deck Tile products we offer free delivery to the majority of mainland UK. Unfortunately, Dura Composites is unable to offer free delivery to certain areas – including Northern Ireland, the Scottish Highlands & Offshore Islands, Isle Of Wight, Isle of Man, the Channel Islands and the Isles of Scilly.

    If your postcode prefix is listed below we would be happy to provide a delivery quote. Please call our Websales Customer Care Team on 01255 446838 to place your order. Postcodes subject to delivery charge include:

    • Northern Ireland (All BT postcodes)
    • Scottish Highlands (AB30, AB33 – AB38, AB41 – AB56, FK17 – FK21, IV1 – IV63, PA20 – PA80, PH15 – PH27, PH30 – PH45, PH49, PH50, KW1 – KW18)
    • Scottish Offshore (HS1 – HS9, KA27, KA28, ZE1 – ZE3)
    • Scottish Borders (All TD and DG postcodes)
    • Isle of Man (All IM postcodes)
    • Isle of Wight (PO30 to PO41)
    • Isles of Scilly (TR21 to TR25)
    • Channel Islands incl. Jersey, Guernsey, Alderney, Sark & Herm (All JE and GY postcodes)

    Returns

    If you wish to return or exchange your goods, please complete the form dispatched with your order and return within 14 days to the address below. Items must be unused and in perfect, resale condition and in their original packaging, and the Returns Form must be included. Once the goods have been received and inspected to check they meet the requirements outlined above you will receive a refund (credited back to the method you paid with) or a new shipping notification for your requested exchange within 7 working days of receipt.

    The replacement item(s) will be shipped to you free of charge (once per customer). Please note we cannot exchange items of differing value. If you choose to return any items that were purchased as part of a promotion, and by returning part of your order your remaining total means you are no longer eligible for the original discount, the value of that discount will be deducted from any refunds due.

    Please note the customer is responsible for the postage to return the item to us. We recommend using a Signed For recorded postal service as Dura Composites Ltd are not liable for any items that go missing en-route back to us. Thank you for your cooperation.

    Returns should be sent to:

    Dura Composites Returns Dept.
    Dura Operations Centre,
    Telford Road,
    Clacton on Sea,
    Essex CO15 4LP

    If you have not yet been issued with your Unique Returns Number (URN) or require a Returns Form, please e-mail customercare@duracomposites.com or call us on +44 (0)1255 423601 to discuss your request.

    Please register your product to activate your warranty. Dura Composites warranty gives you peace of mind and expert back up should you ever need it, so you can rest assured you’re buying the best in design excellence, quality and durability. Please note that your warranty must be registered and activated within 30 days of your invoice date to be eligible. For details of terms and conditions, length of warranty and how to activate your warranty, click below.

    Warranty Registration

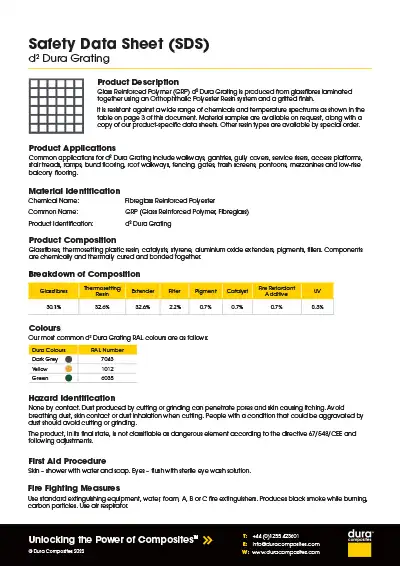

    IMAGE-Material-Safety-Data Sheet-d2-Dura-Grating

    MSDS

    d² Dura Grating MSDS

    Working safely with composite products.

    Download
    d2 Dura Grating Standard Mesh 50mm Product Datasheet Dura Composites

    Datasheets

    d² Dura Grating 50mm Standard Mesh

    d² Dura Grating is a new patent pending GRP grating series that takes structural flooring…

    Download

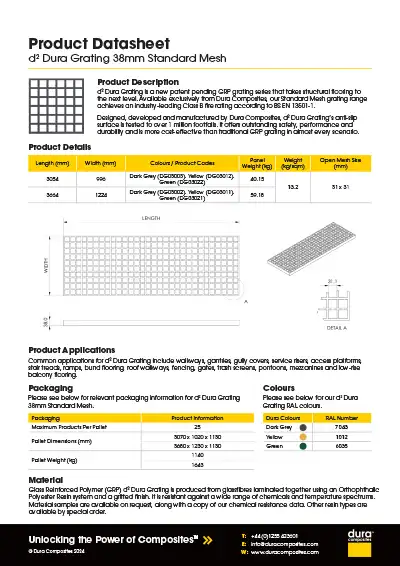

    d2-Dura-Grating-Standard-Mesh-38mm-Product-Datasheet-Dura-Composites

    Datasheets

    d² Dura Grating 38mm Standard Mesh

    d² Dura Grating is a new patent pending GRP grating series that takes structural flooring…

    Download

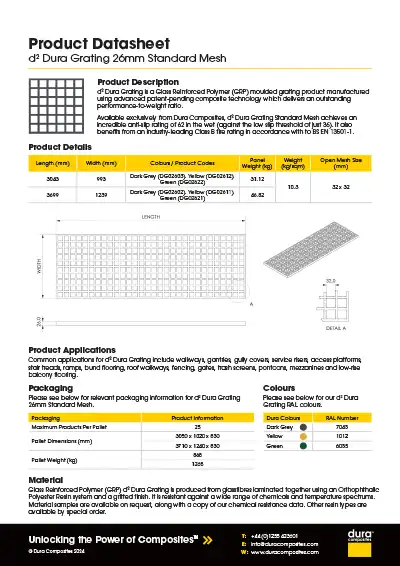

    d2 Dura Grating Standard Mesh 26mm Product Datasheet Dura Composites

    Datasheets

    d² Dura Grating 26mm Standard Mesh

    d² Dura Grating is a new patent pending GRP grating series that takes structural flooring…

    Download

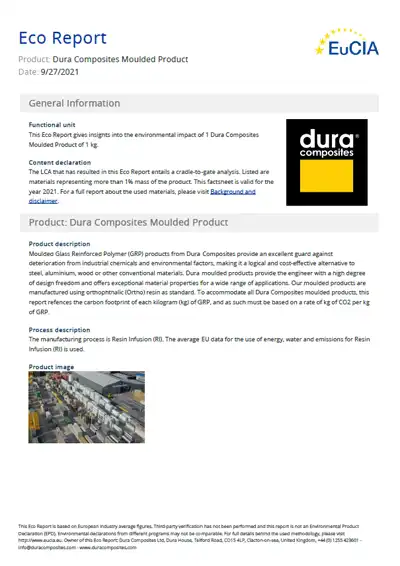

    Dura-Composites-Moulded-Product-Carbon-Report

    Certificates

    Moulded GRP Carbon Report

    Embodied Carbon Report of our Moulded GRP Products.

    Download

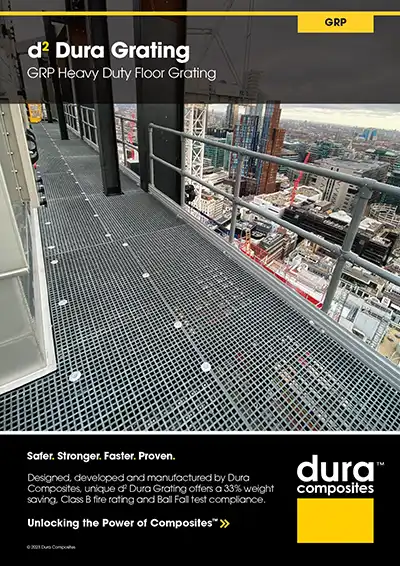

    Front Cover Image For d2 Dura Grating Brochure Dura Composites
