    Canopies

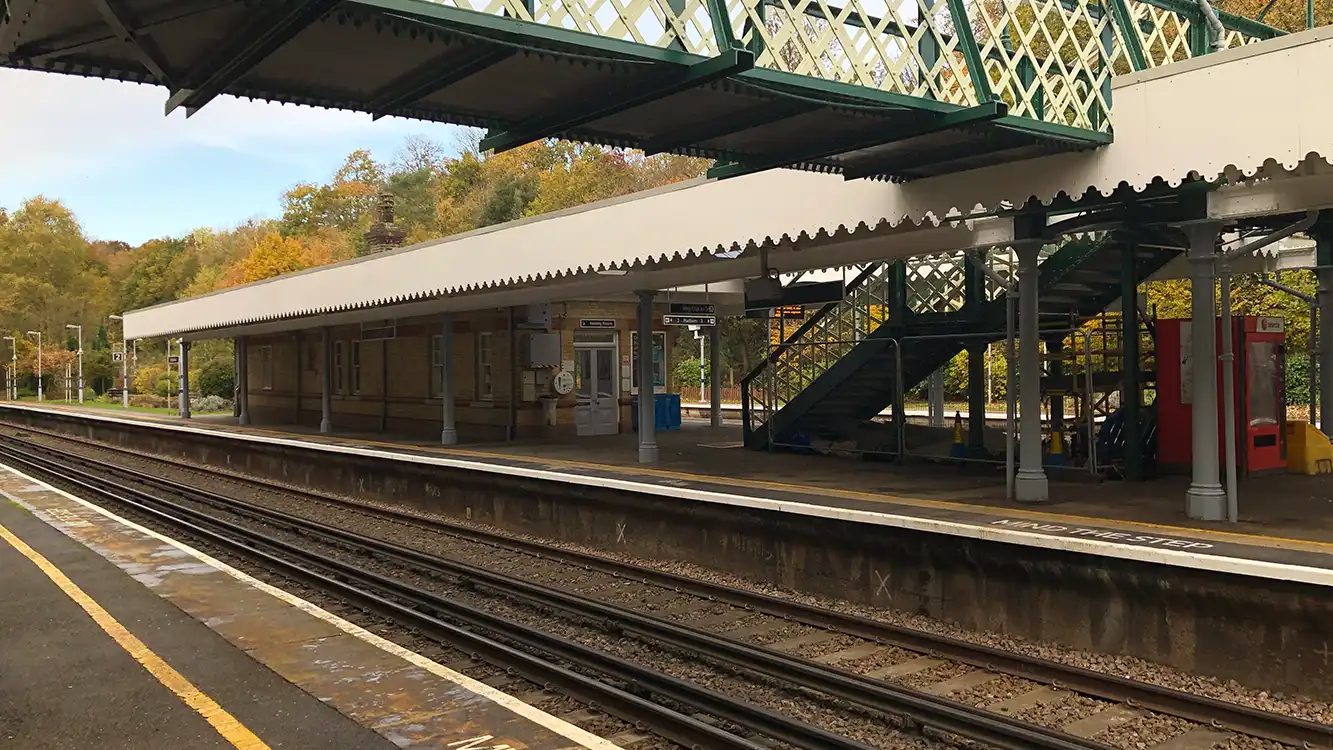

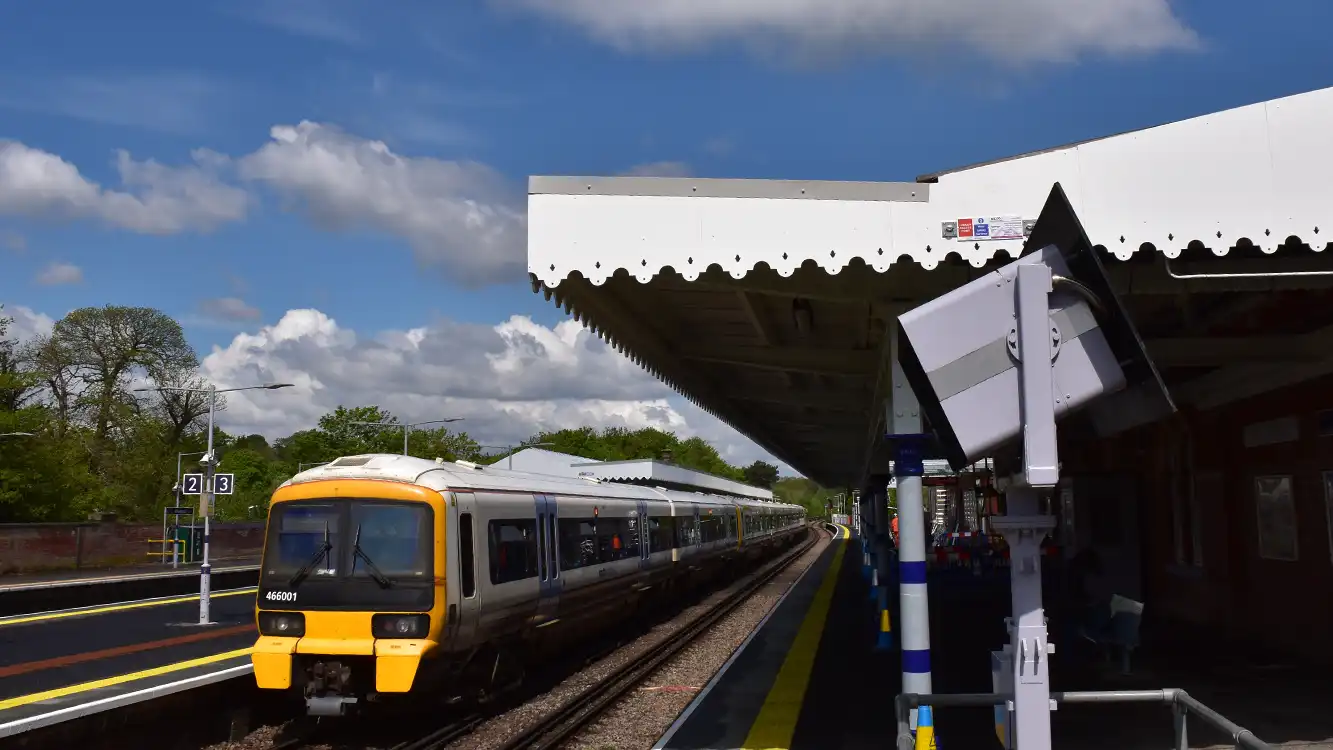

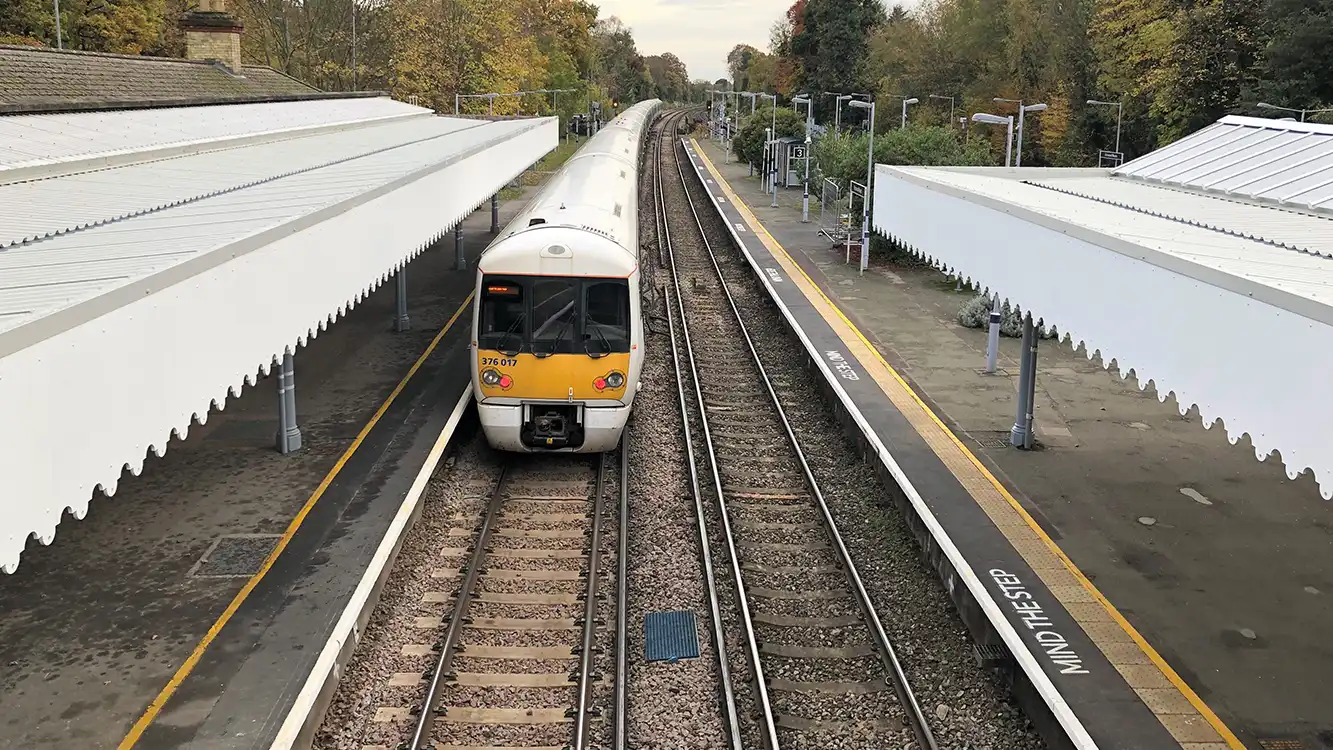

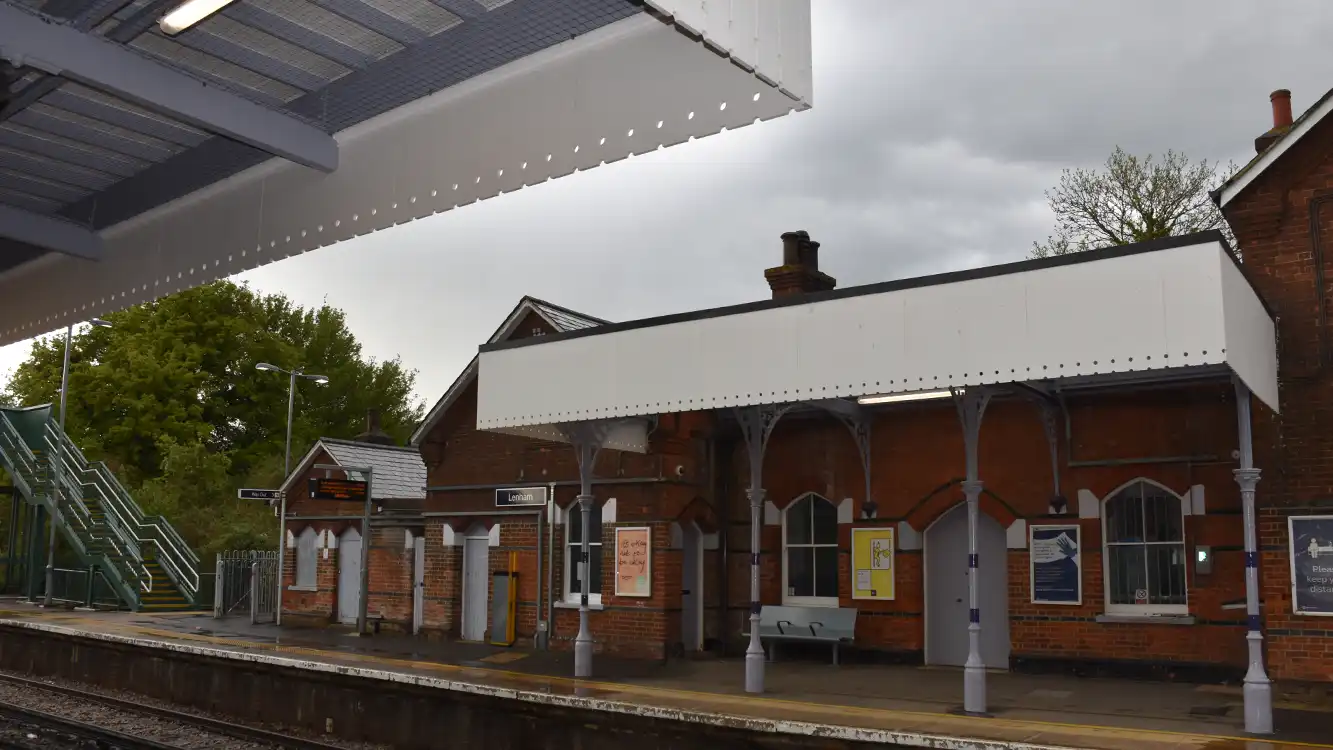

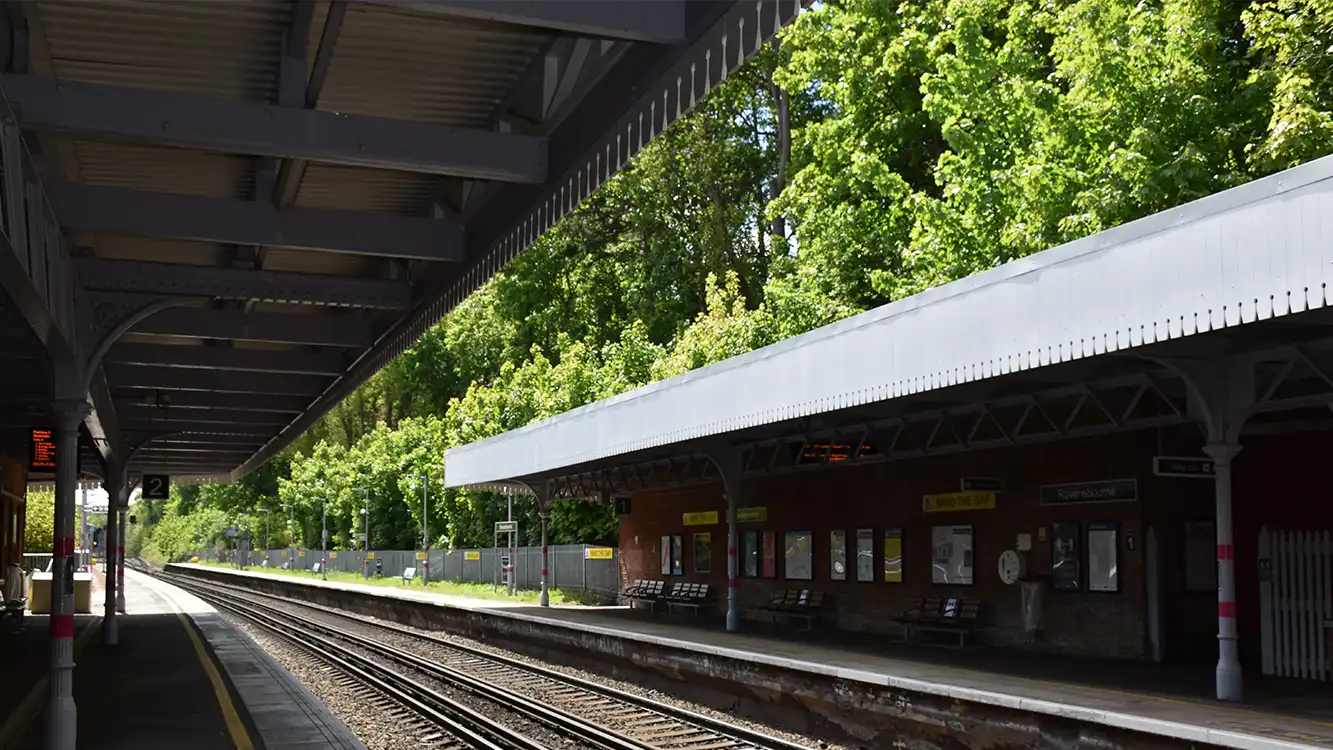

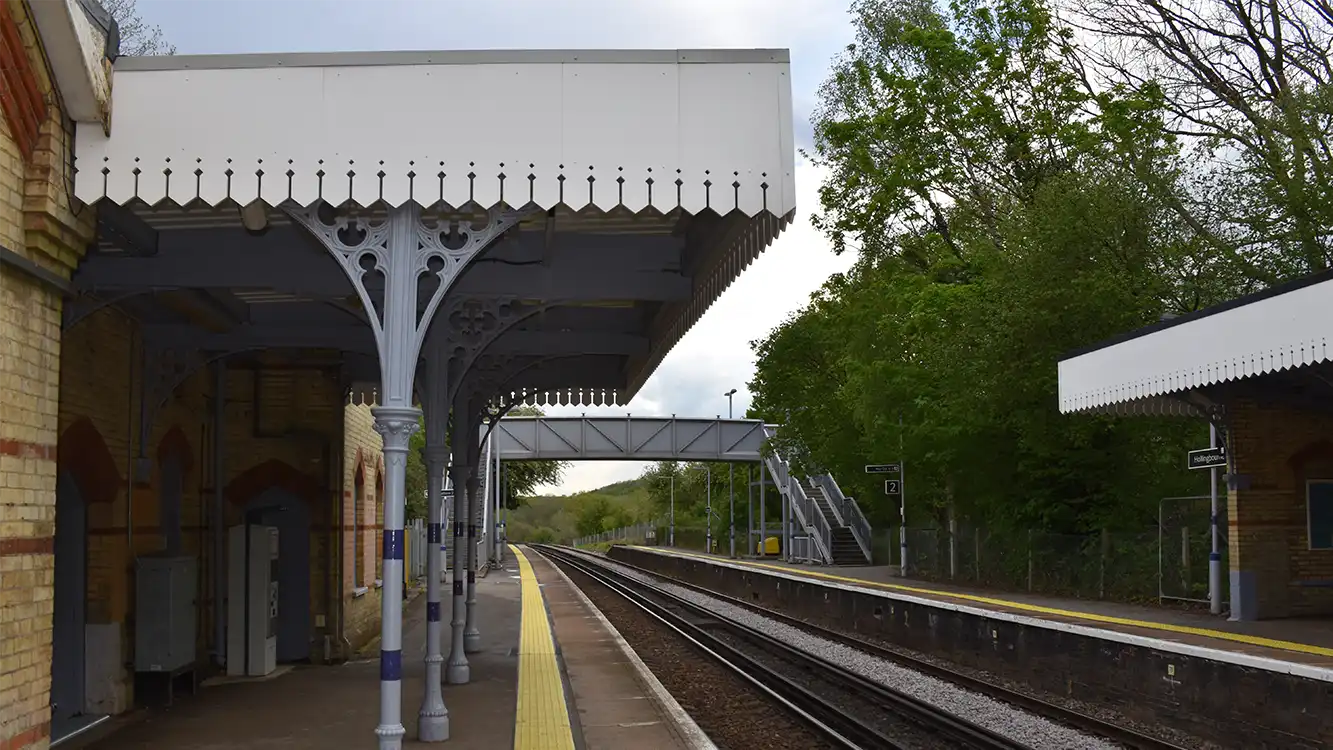

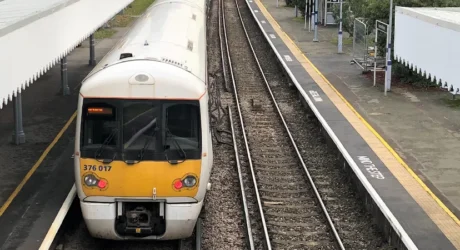

    Dura Dagger Boards are the ideal replacement material for timber dagger boards on railway station canopy fascias. Made from durable patented (GB2582967) composite material with a Class B fire rating in accordance with BS EN 13501, our dagger boards mimic the appearance of traditional wooden valance boards but are simple to install and require virtually no maintenance over their 60 year design life.

    Sometimes known as valance boards or ‘dags’.

    Dura Daggerboards are half the weight and price of GRP alternatives and are supplied in 2.1 x 1.2 metre sections for faster and cheaper install. Panels can be supplied in a range of attractive profiles, all of which are non-conductive and require minimal maintenance over their long lifecycle – eliminating the need for repainting or replacing damaged or rotted sections at height, and saving valuable labour time on site. Our CNC and 3D laser survey expertise enables exact replications of beautiful heritage designs with a turnkey 2 week lead time.

    Dagger boards have been common at UK stations since the late 1850s, and primarily served the practical function of removing water from the canopy and reducing weather-inflicted damage such as rot, thereby preventing deterioration of the canopy itself. In addition to their practical functions, dagger boards were recognised as having positive decorative and aesthetic qualities, and were produced in a range of intricate designs.

    However railway station canopy valances and awnings are traditionally made from timber which requires extensive maintenance due to weathering. This periodic maintenance can cause considerable disruption to passengers and station operators as rotten or warped boards normally need replacing in situ – leading to station platform closures. Now, with composite Dura Daggerboards there is a realistic and cost-effective alternative.

    Dura Dagger Board Colours

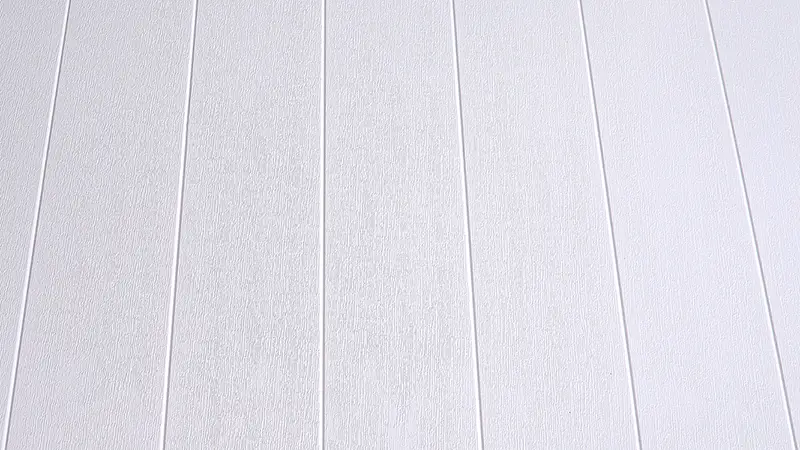

    White

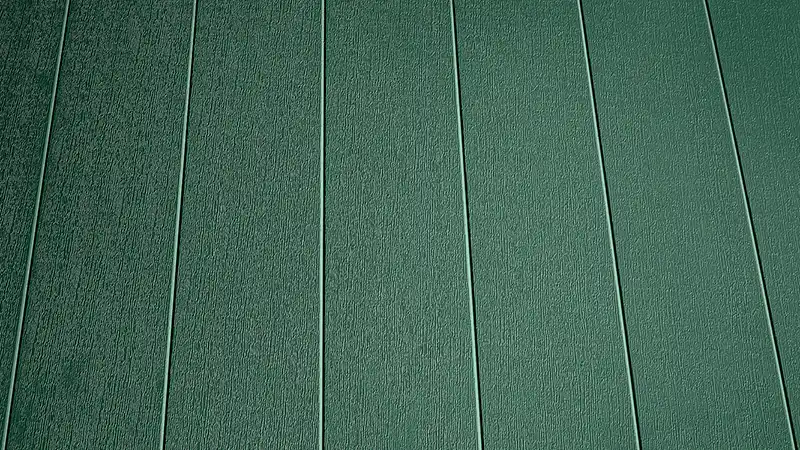

    Hollybush Green

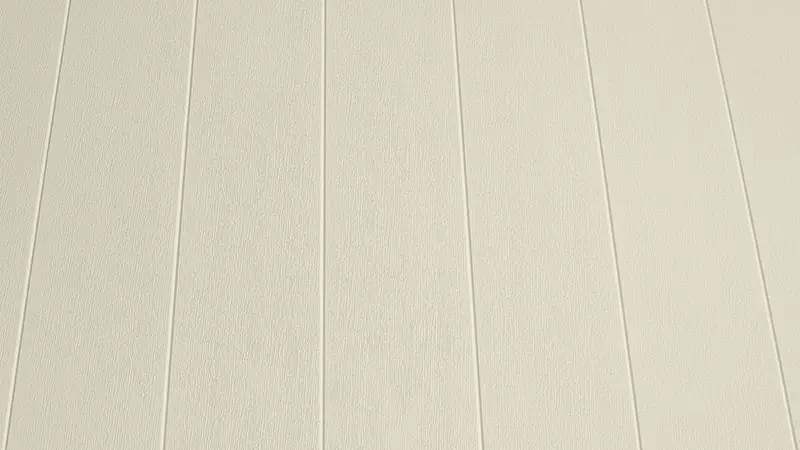

    Light Beige

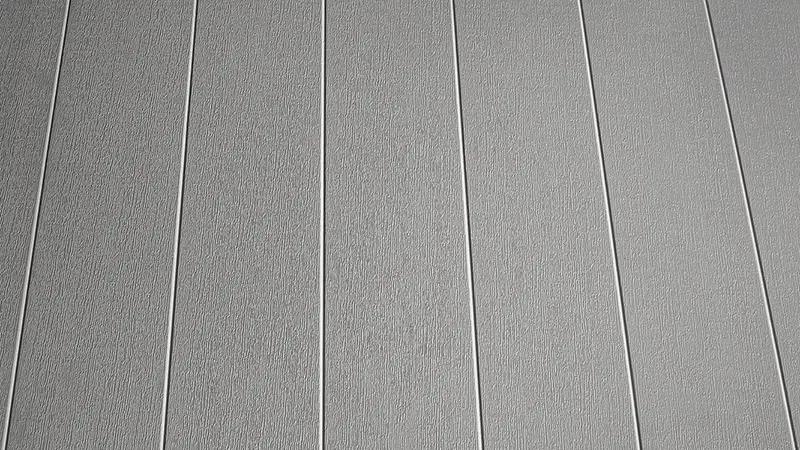

    Flint

    Extended lead times and minimum order quantities apply to this product.

    Dura Dagger Board Trims

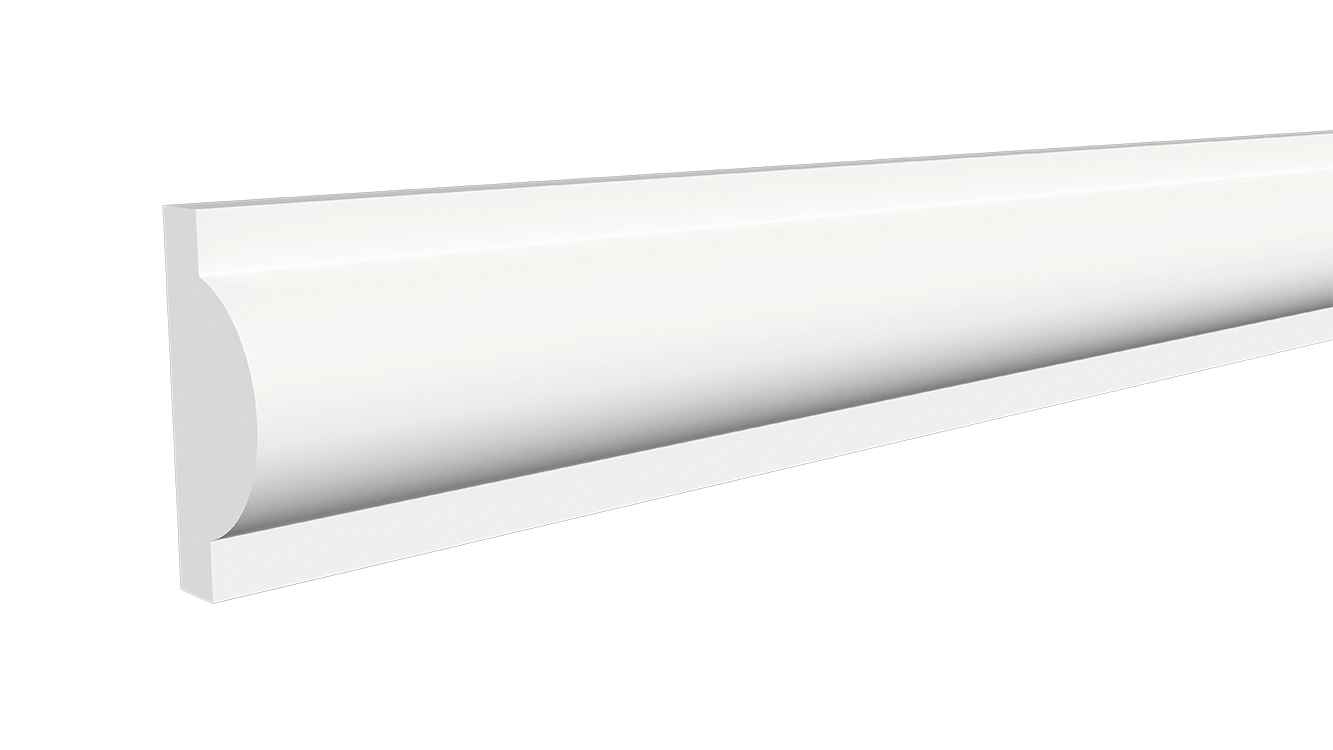

    Middle Trim

    Trim Profile to be positioned horizontally along upper or lower edges.

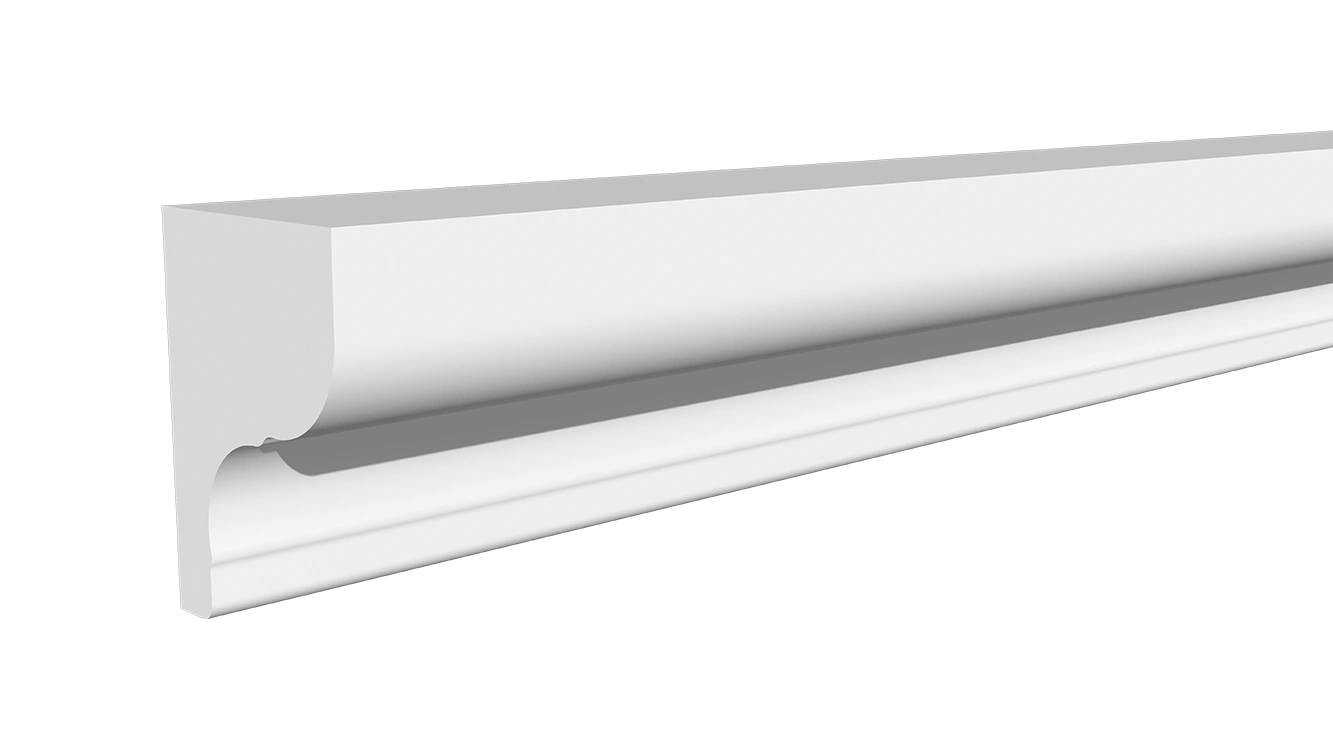

    Top Trim

    Trim to be positioned along the edge of the boards.

    Projects

    Find out how our market-leading composite products and applications are reshaping the industry.

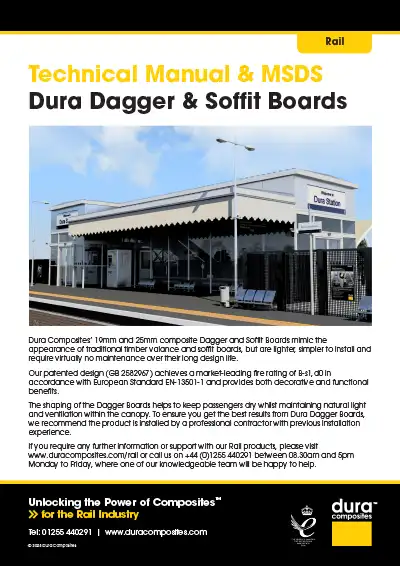

    Dagger & Soffit Boards Technical Manual Dura Composites

    Installation Manuals

    Dura Dagger & Soffit Boards

    Our 19mm and 25mm composite Dagger and Soffit Boards mimic the appearance of traditional timber…

    Download
    Front Cover Image For Station Platforms & Accessories Brochure Dura Composites

    Brochures

    Rail Station Platforms and Accessories

    Discover the d² Dura Composites range of solutions for rail stations including platforms, footbridges, end…

    Download

    Our Specialists

    We’re helping to answer the major challenges facing Britain’s railway network such as capacity, reliability and efficiency. Talk to our experienced team about how you can tap into our specialist knowledge and engineering capability for your project.
