    Excellent bi-directional strength and stiffness.

    Our pultruded GRP Grating is an alternative to our moulded grating panels and has various structural shapes, ideal for areas with regular impact that require an extended drainage solution and wide span. All the variants utilise distinct bearing bar shapes and sizes, offering excellent bi-directional strength and stiffness. The selection depends on project-specific requirements, including load-bearing needs and overall aesthetics.

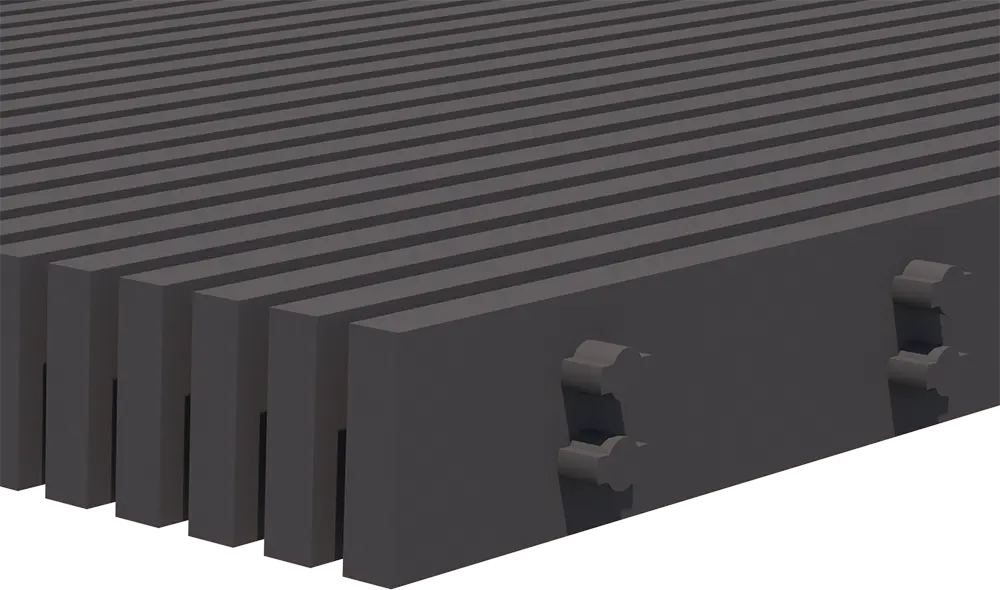

    Pultruded Flat Bar Beam

    Flat Bar Beam

    Provides a smooth, flat surface suitable for pedestrian areas and locations requiring enhanced drainage.

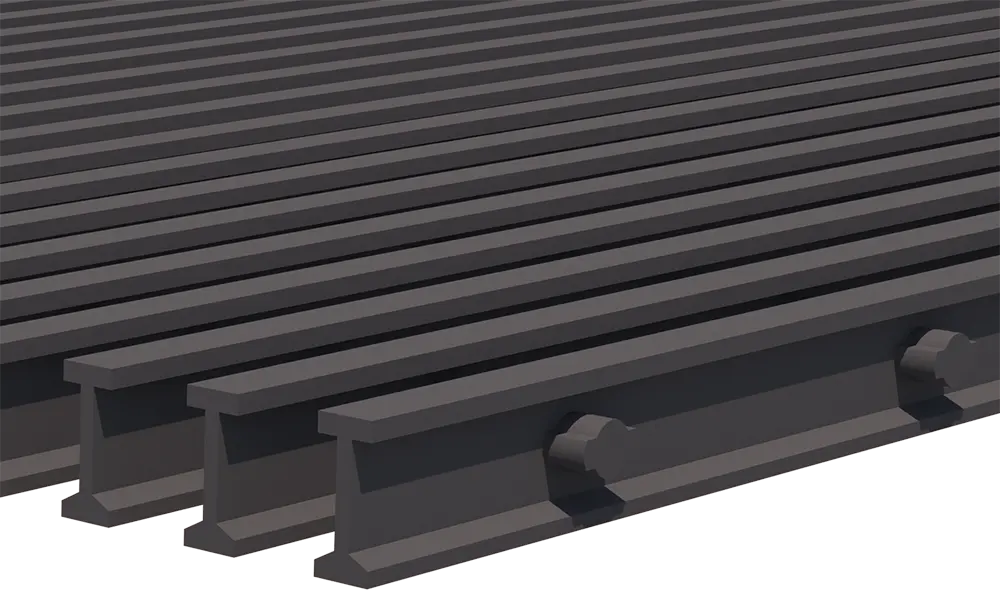

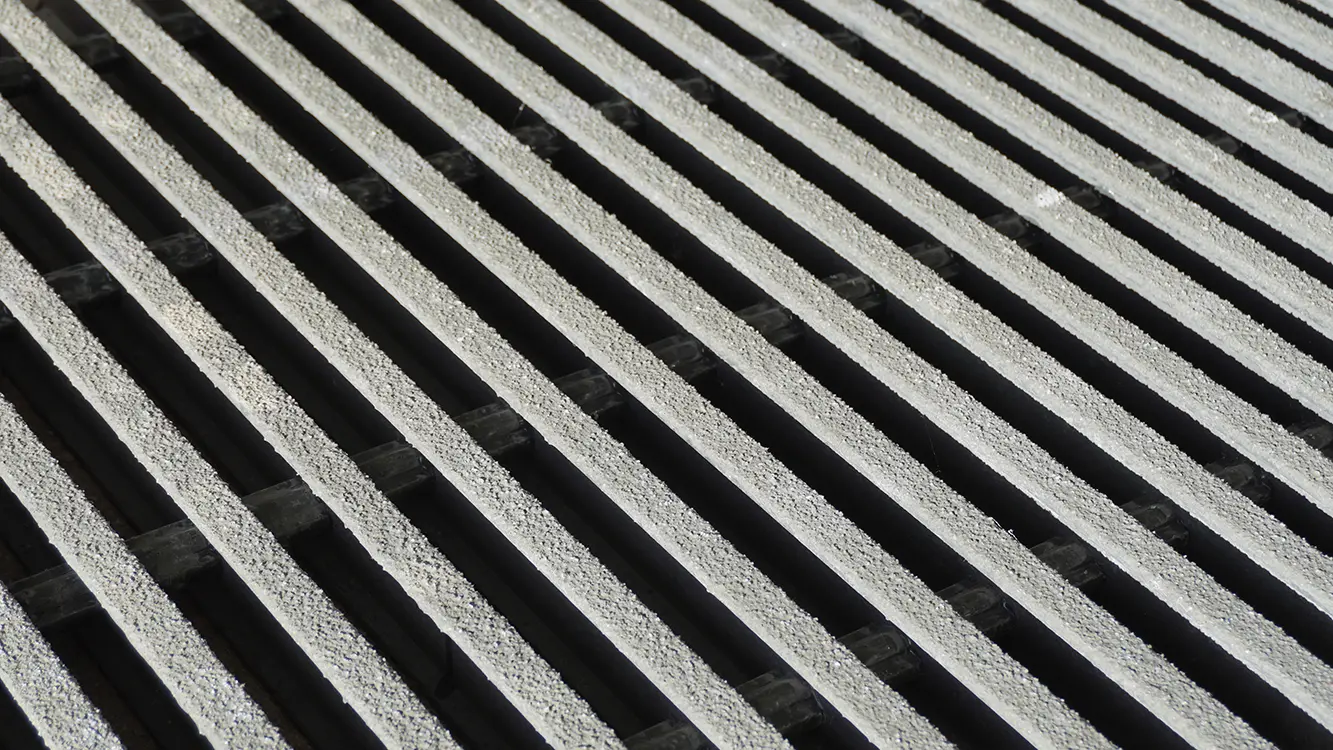

    Pultruded I Beam

    I Beam

    Features an I-shaped cross-section with flanges on both sides of a central web.

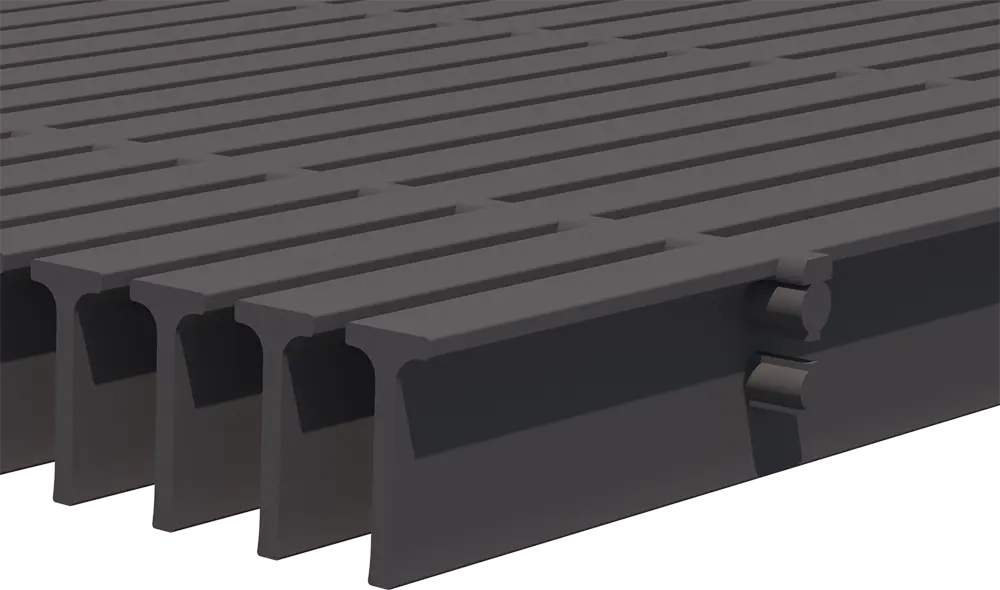

    Pultruded T Beam

    T Beam

    Exhibits a T-shaped cross-section with a central web and flanges extending beyond the web for added lateral stiffness.

    A consistent, high-quality pultrusion process.

    Dura Composites’ pultruded open safety flooring excels in areas with regular impact, offering extended drainage and wide spans. Its durability, lightweight nature, corrosion, and chemical resistance surpass traditional materials like steel. The pultrusion process ensures a consistent, high-quality product, featuring pultruded load bars connected by tie bars.

    • Ideal for Impact Areas: Suited for locations with regular impact, providing extended drainage solutions.
    • Superior to Steel: Outperforms steel in durability, lightweight design, and resistance to corrosion and chemicals.
    • Consistent Quality: The pultrusion process guarantees a consistently high-quality finished product.
    • Large Span Support: Ideal for applications requiring strength at larger spans compared to molded grating.
    • Versatile Applications: Suitable for industrial, chemical, nuclear, construction, and marine industries, including hazardous areas.

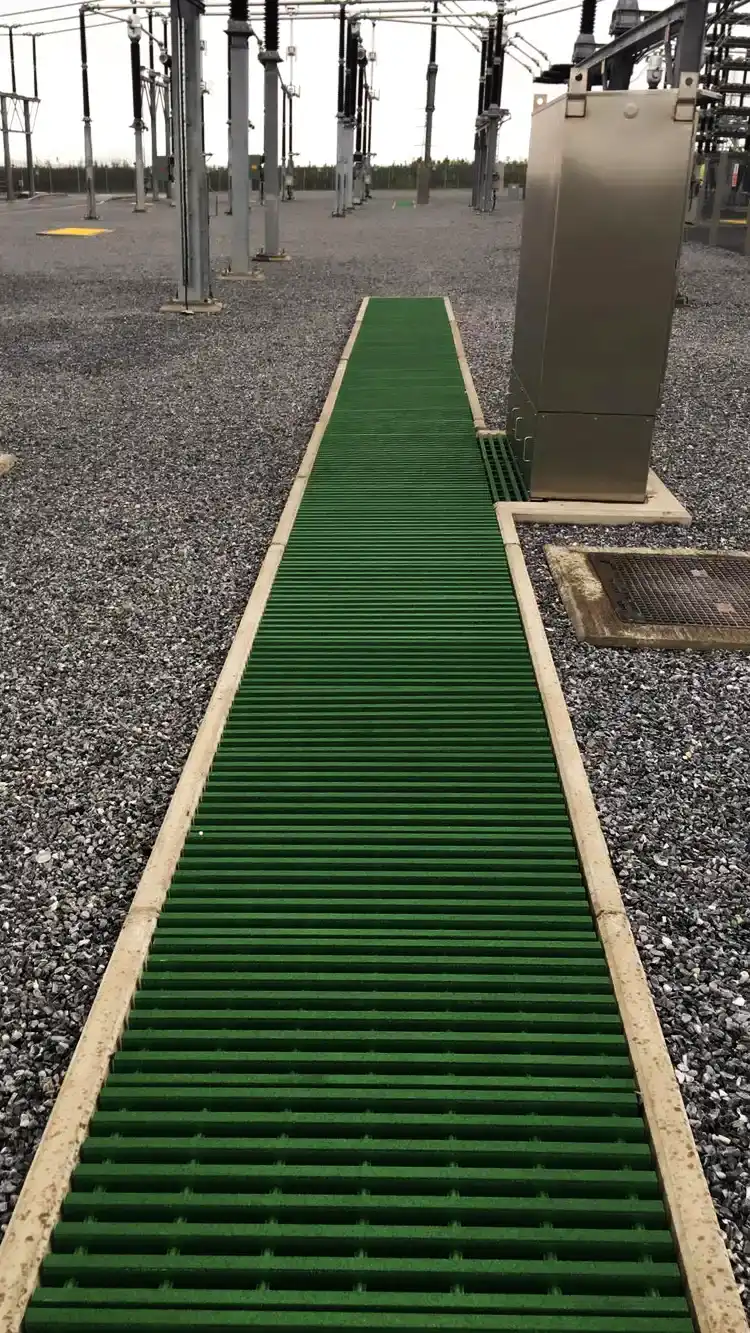

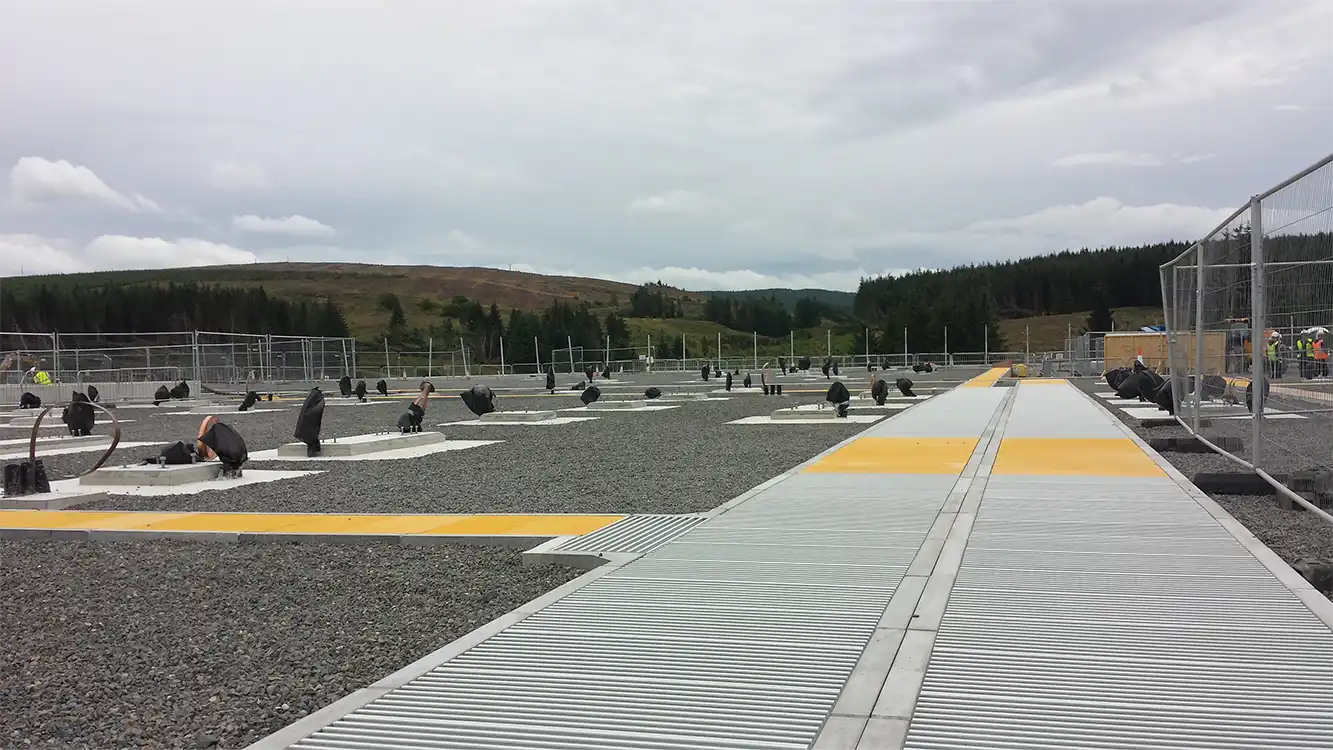

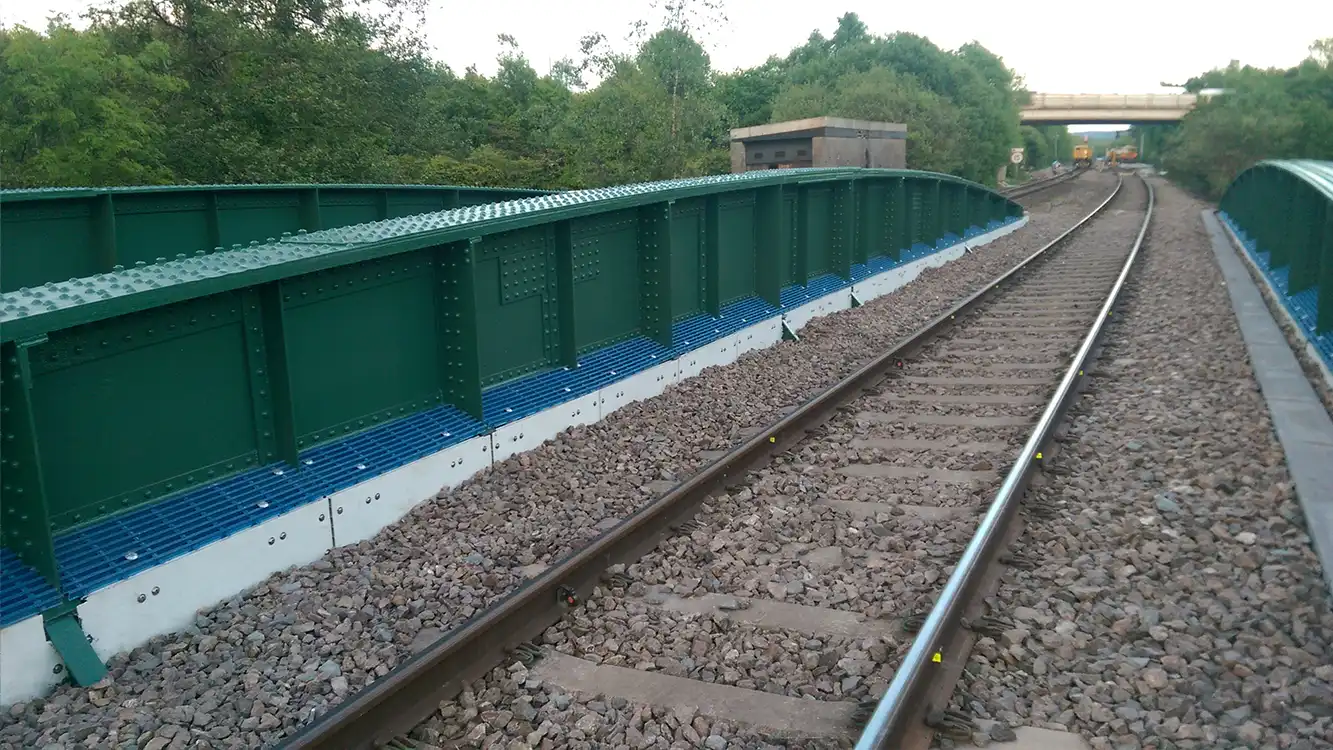

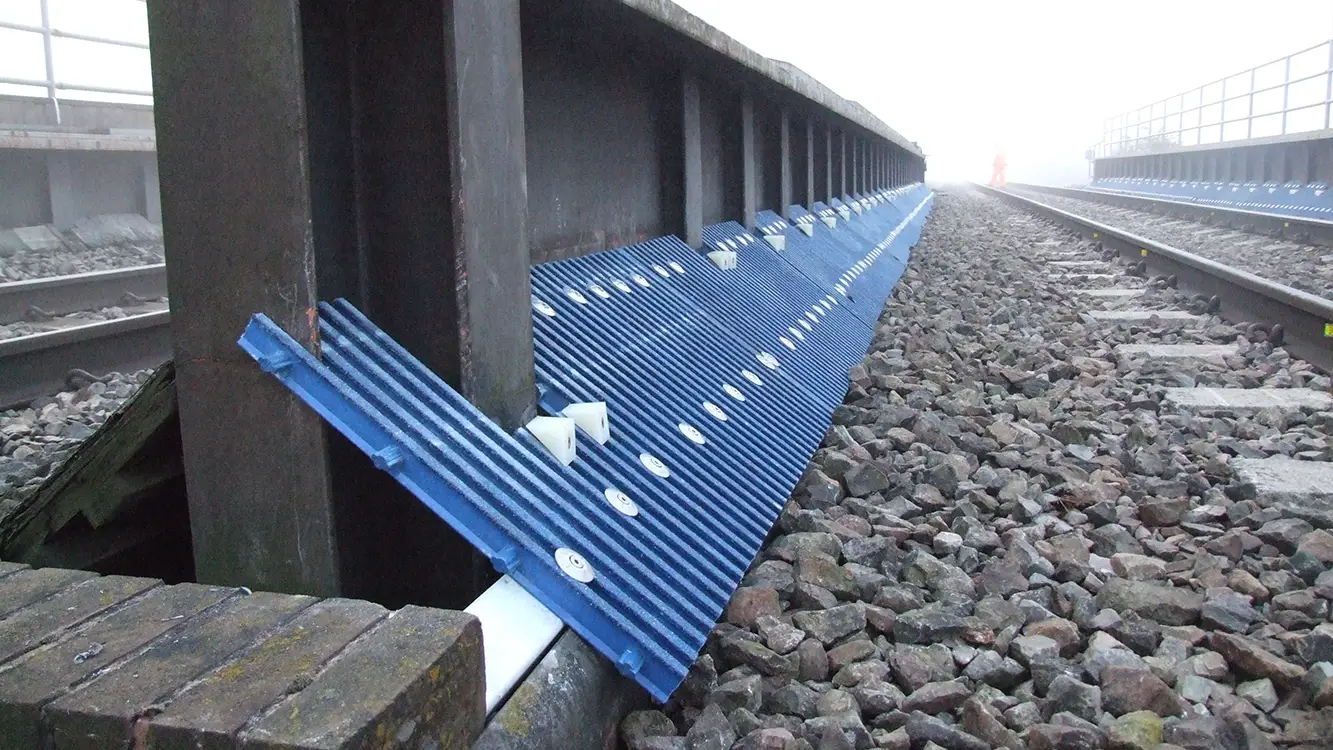

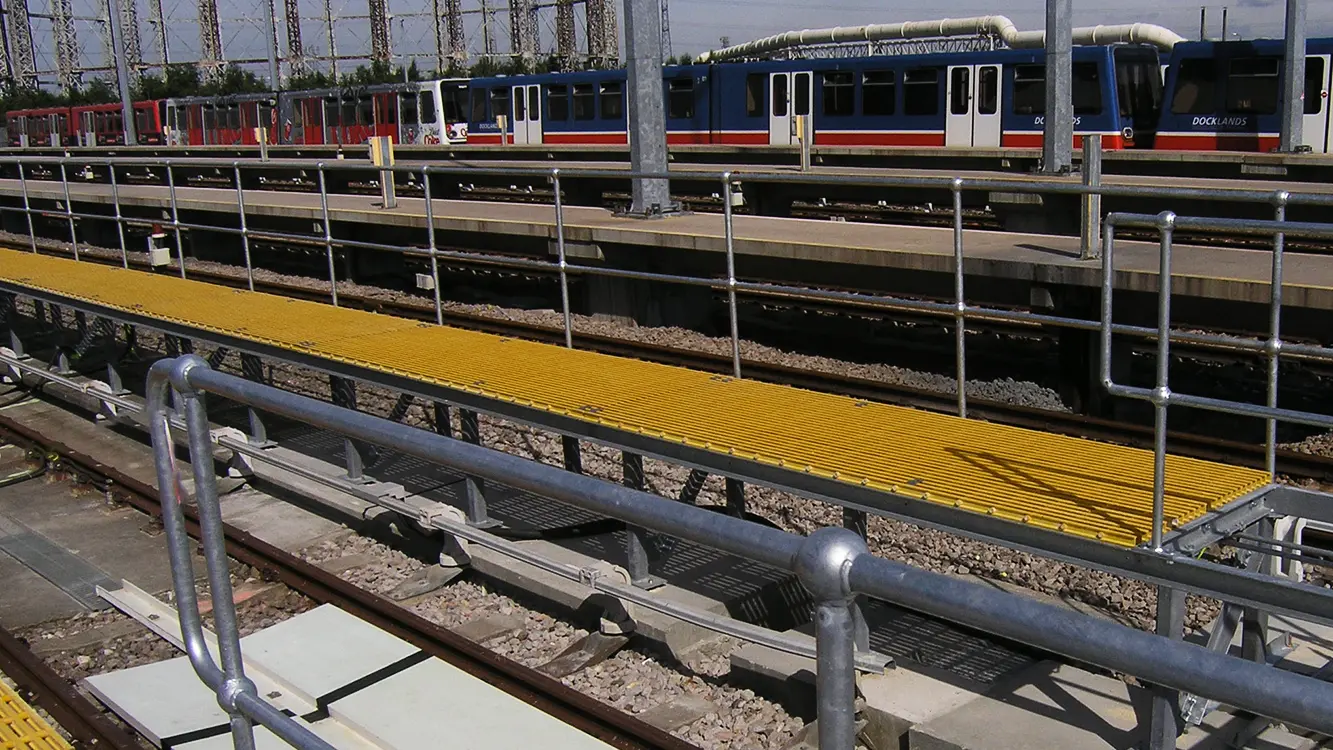

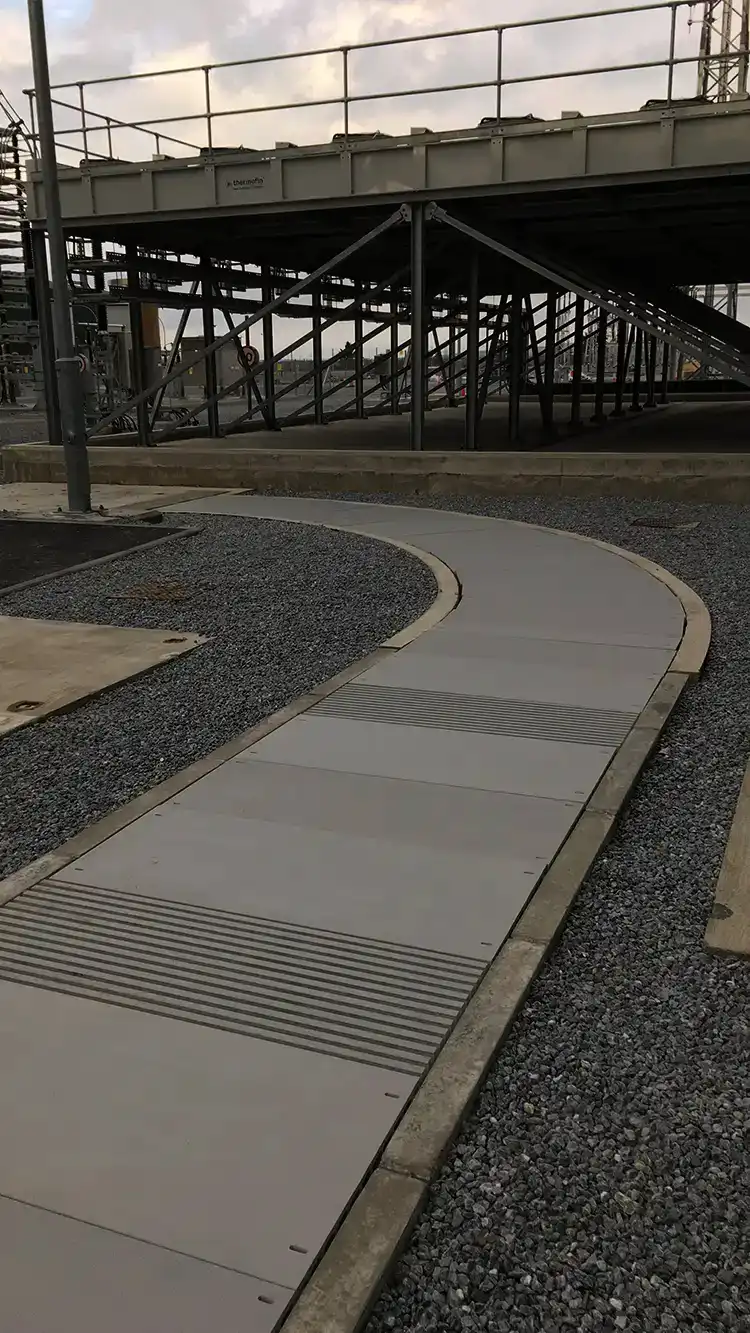

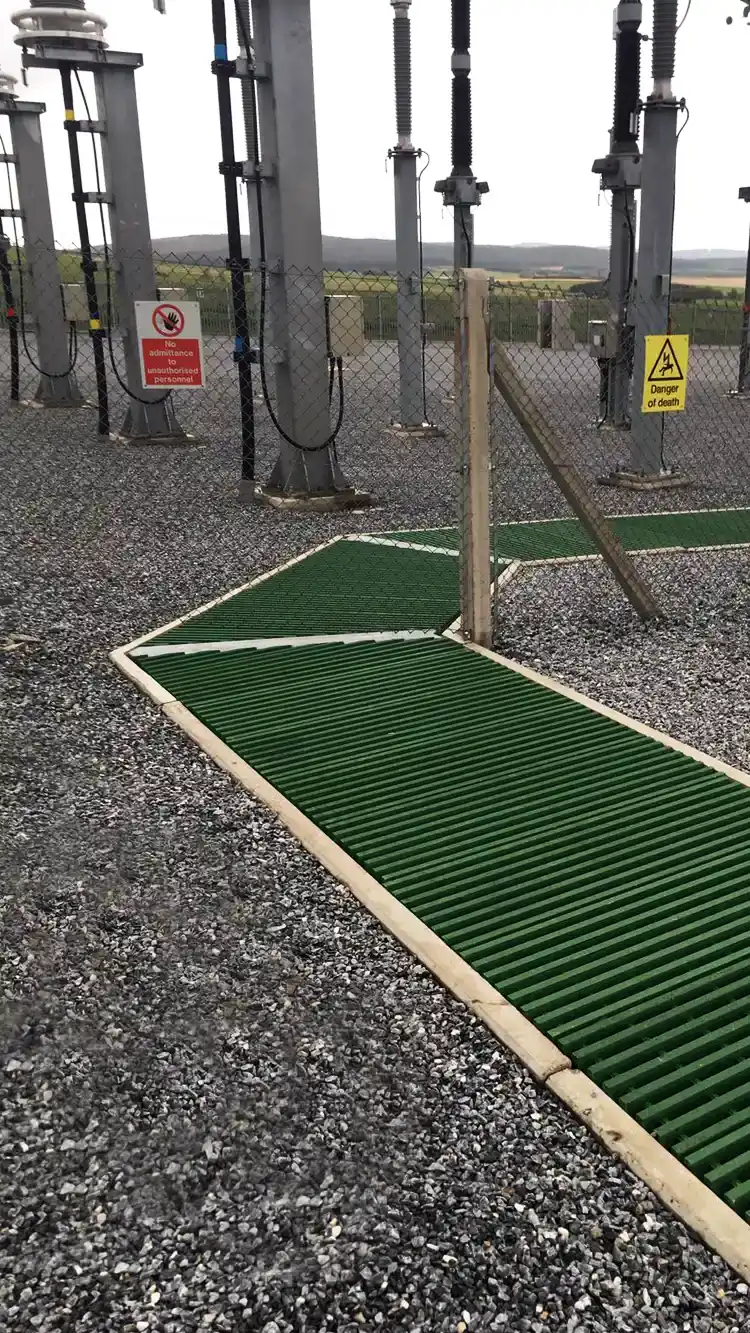

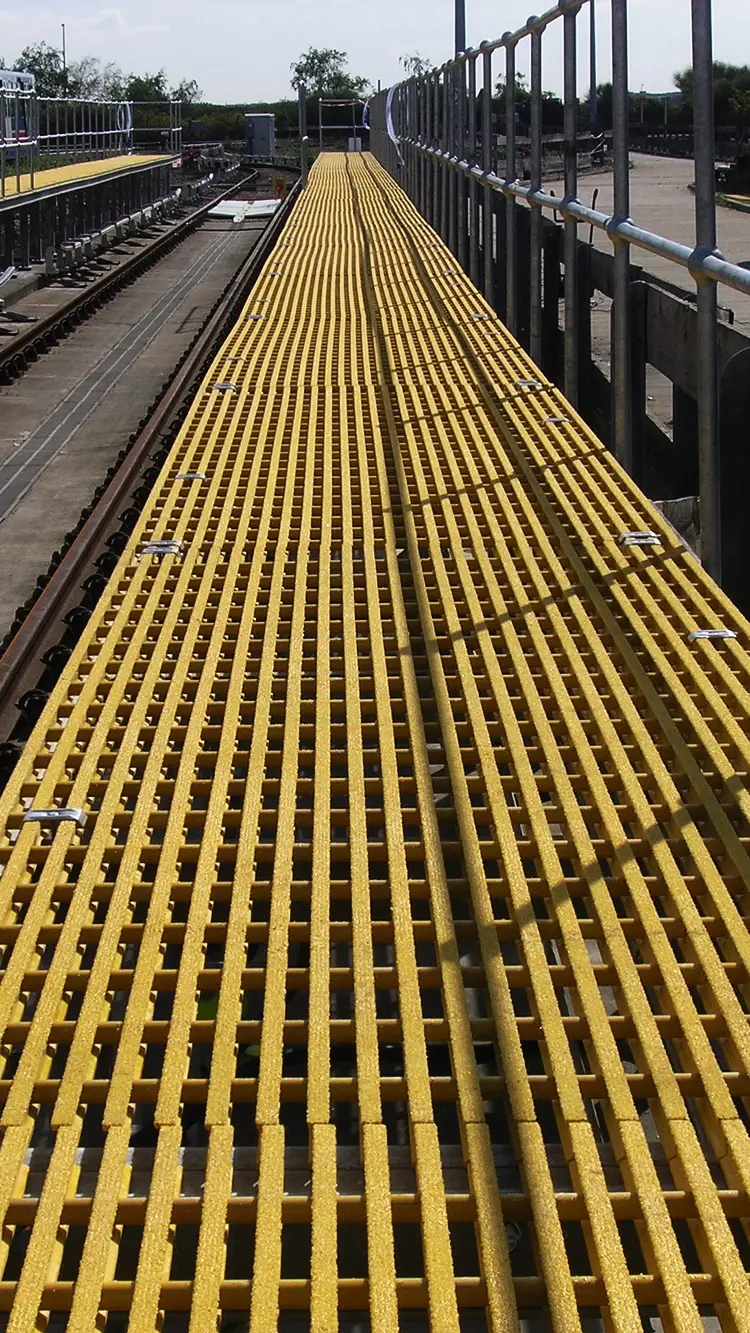

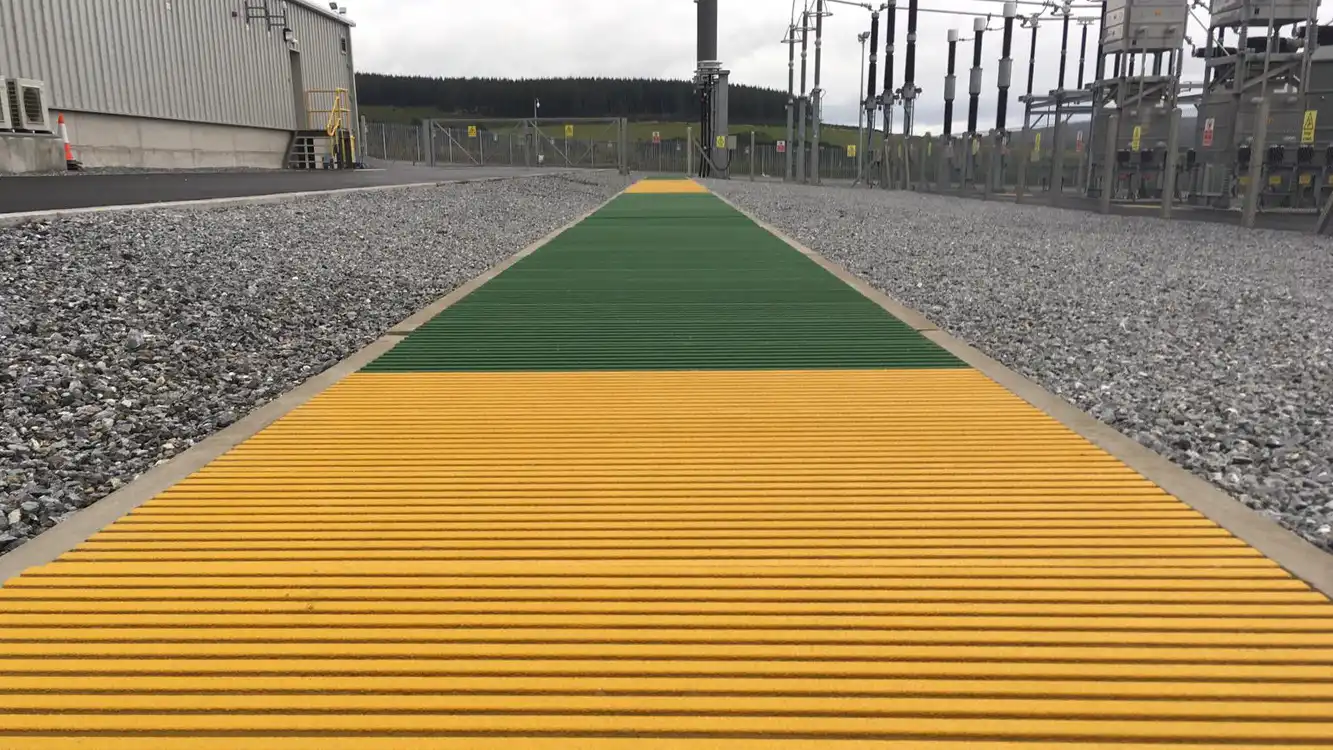

    Dura Grating in blue is a preferred choice for rail catchpit covers, aquaculture industries, and drainage walkway solutions in busy leisure centers. Pultruded components are also ideally suited as trench covers to vehicular loading requirements for infrastructure installs including power, telecoms and utility projects.


    Versatile in Design

    Ability to achieve wide spans for pedestrian loads.



    Ideal for hazardous utility and energy environments.



    Perfect for reducing risk in high-voltage areas.

    Pultruded Grating I Beam Data

    ThicknessOpen Hole SizeStandard ComplianceMax SpanLengthWidthWeightColours
    38mm10mmEN 124 Class A1300mm3660mm1220mm23kg/m²Green, Yellow, Dark Grey, Blue
    38mm23mmEN 124 Class A1600mm3660mm1220mm16kg/m²Green, Yellow, Dark Grey, Blue

    Pultruded Grating T Beam Data

    ThicknessOpen Hole SizeStandard ComplianceMax SpanLengthWidthWeightColours
    50mm10mmEN 124 Class A | Max Span 1800mm3660mm1220mm24kg/m²Green, Yellow, Dark Grey
    50mm23mmEN 124 Class A1700mm3660mm1220mm16kg/m²Green, Yellow, Dark Grey
    63mm10mmEN 124 Class A1900mm3660mm1220mm28kg/m²Green, Yellow, Dark Grey
    63mm23mmEN 124 Class A1800mm3660mm1220mm19kg/m²Green, Yellow, Dark Grey

    Pultruded Grating Flat Bar Beam Data

    ThicknessOpen Hole SizeStandard ComplianceMax SpanLengthWidthWeightColours
    38mm10mmEN 124 Class B900mm3660mm1220mm54kg/m²Green, Yellow, Dark Grey
    38mm23mmEN 124 Class B730mm3660mm1220mm34kg/m²Green, Yellow, Dark Grey
    50mm10mmEN 124 Class B1200mm3660mm1220mm71kg/m²Green, Yellow, Dark Grey
    50mm23mmEN 124 Class B1000mm3660mm1220mm44kg/m²Green, Yellow, Dark Grey
    63mm10mmEN 124 Class C600mm3660mm1220mm80kg/m²Green, Yellow, Dark Grey
    63mm23mmEN 124 Class C600mm3660mm1220mm58kg/m²Green, Yellow, Dark Grey
    100mm10mmEN 124 Class D700mm3660mm1220mm119kg/m²Green, Yellow, Dark Grey
    100mm23mmEN 124 Class C700mm3660mm1220mm80kg/m²Green, Yellow, Dark Grey

    Need further Technical Information, Point Load And UDL data? Click here to use our GRP Material Data Analysis Tool

    Need to know specifics?

    A wide range of stainless steel fixing solutions are available to cater for the huge number of applications that our d² Dura Grating is suited to. Please review the table below to find the type most suited to your grating thickness.

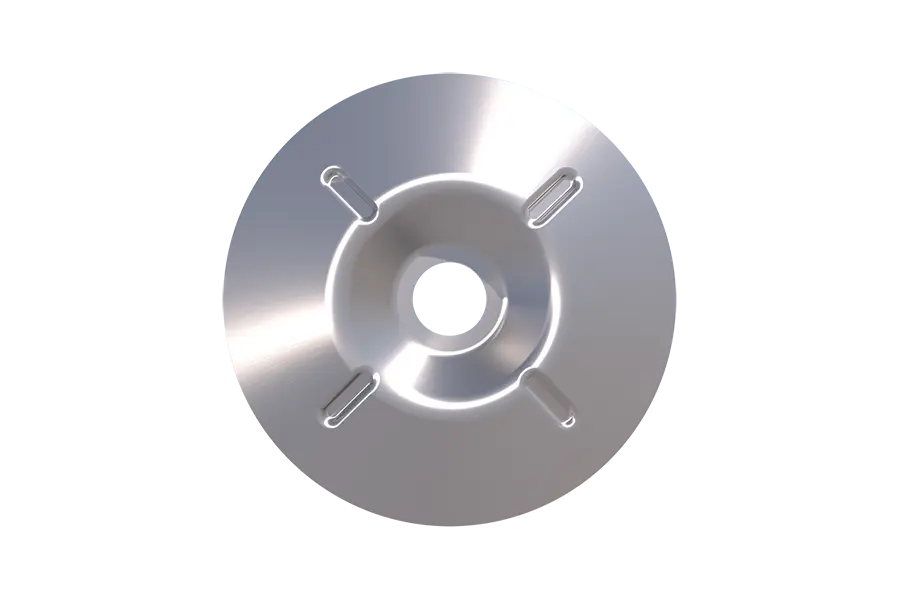

    Dome Washer

    Dome Washer

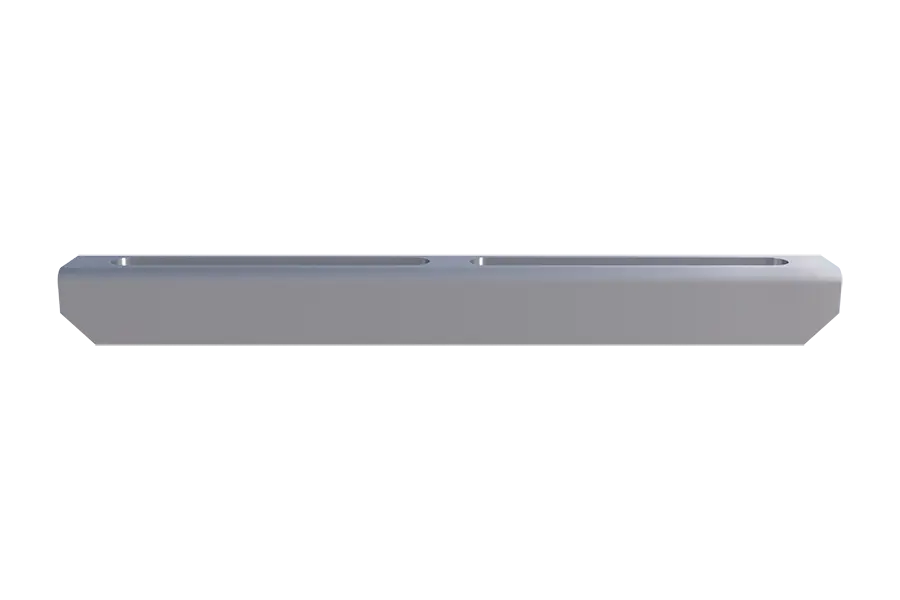

    Channel Bar Clamp


    Unistrut Bar Clamp

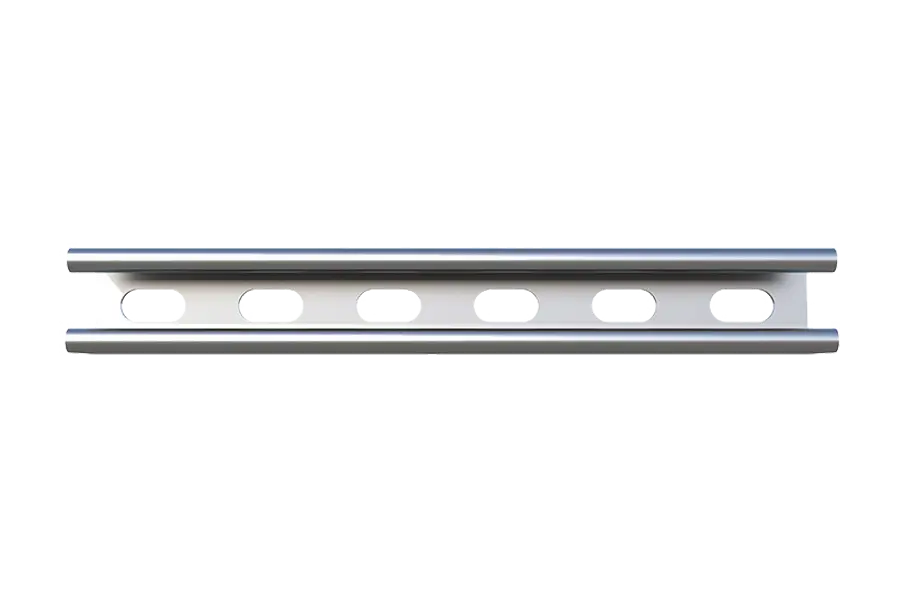

    Unistrut Bar

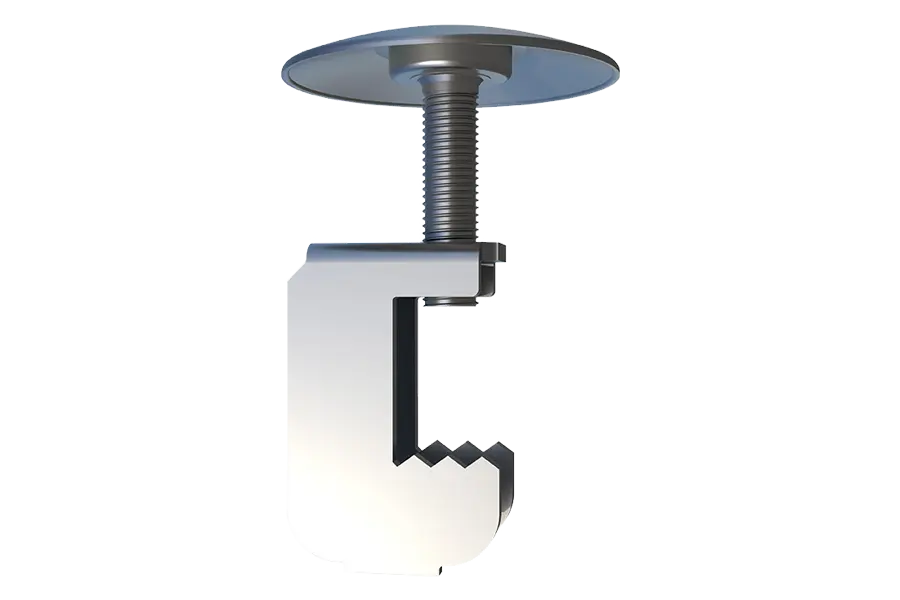

    Jaw Clamp

    Jaw Clamp

    Fixing TypeProduct Code38mm (I, T, Flat) 10mm Open Hole38mm (I, T, Flat) 23mm Open Hole50mm (I, T, Flat) 10mm Open Hole50mm (I, T, Flat) 23mm Open Hole63mm (Flat) 10mm Open Hole63mm (Flat) 23mm Open Hole100mm (Flat) 10mm Open Hole100mm (Flat) 23mm Open Hole
    Dome Washer Small BFX01005
    Dome Washer LargeBFX01003
    Dome Washer Extra Large BFX02165
    Uni-Strut ClampDP05053
    Channel ClampBFX01027
    Jaw ClampFX01033


    Recommended fixing for product
    Limited compatibility, for use only with the recommendation from your Dura representative
    Not compatible or recommended

    Our specialist services empower architects, engineers, project managers, and designers to design, specify and deploy composite products with ease. Our CAD, Structural Design and Fabrication teams support our customers make data-driven decisions about the right product specifications for their projects.

    Our installation consultation services include:

    • Pre-Installation Support, Training & Toolbox Talks
    • Contract Installation
    • Drone & Laser Scanning
    • Day 1 Installation Support
    • Site Visits & Snagging Assessments
    • Final Inspection & Sign Off

    Other value added services available at any project stage include Design & Engineering, Fabrication, Preventative Maintenance Inspections and Specialist Cutting.

    Find out more


    Standard lead time on orders from our Webshop is 3 – 5 working days (Mainland UK; stock dependent).

    Large orders may be subject to palletised deliveries which are to the property kerbside only. Your order will need to be unloaded by hand (hand-balled) off the lorry side. A person must be present to help unload the goods and sign for receipt. Delivery drivers are not insured to help unload the goods beyond the property kerbside.

    For our Dura Deck Tile products we offer free delivery to the majority of mainland UK. Unfortunately, Dura Composites is unable to offer free delivery to certain areas – including Northern Ireland, the Scottish Highlands & Offshore Islands, Isle Of Wight, Isle of Man, the Channel Islands and the Isles of Scilly.

    If your postcode prefix is listed below we would be happy to provide a delivery quote. Please call our Websales Customer Care Team on 01255 446838 to place your order. Postcodes subject to delivery charge include:

    • Northern Ireland (All BT postcodes)
    • Scottish Highlands (AB30, AB33 – AB38, AB41 – AB56, FK17 – FK21, IV1 – IV63, PA20 – PA80, PH15 – PH27, PH30 – PH45, PH49, PH50, KW1 – KW18)
    • Scottish Offshore (HS1 – HS9, KA27, KA28, ZE1 – ZE3)
    • Scottish Borders (All TD and DG postcodes)
    • Isle of Man (All IM postcodes)
    • Isle of Wight (PO30 to PO41)
    • Isles of Scilly (TR21 to TR25)
    • Channel Islands incl. Jersey, Guernsey, Alderney, Sark & Herm (All JE and GY postcodes)


    If you wish to return or exchange your goods, please complete the form dispatched with your order and return within 14 days to the address below. Items must be unused and in perfect, resale condition and in their original packaging, and the Returns Form must be included. Once the goods have been received and inspected to check they meet the requirements outlined above you will receive a refund (credited back to the method you paid with) or a new shipping notification for your requested exchange within 7 working days of receipt.

    The replacement item(s) will be shipped to you free of charge (once per customer). Please note we cannot exchange items of differing value. If you choose to return any items that were purchased as part of a promotion, and by returning part of your order your remaining total means you are no longer eligible for the original discount, the value of that discount will be deducted from any refunds due.

    Please note the customer is responsible for the postage to return the item to us. We recommend using a Signed For recorded postal service as Dura Composites Ltd are not liable for any items that go missing en-route back to us. Thank you for your cooperation.

    Returns should be sent to:

    Dura Composites Returns Dept.
    Dura Operations Centre,
    Telford Road,
    Clacton on Sea,
    Essex CO15 4LP

    If you have not yet been issued with your Unique Returns Number (URN) or require a Returns Form, please e-mail customercare@duracomposites.com or call us on +44 (0)1255 423601 to discuss your request.

    Please register your product to activate your warranty. Dura Composites warranty gives you peace of mind and expert back up should you ever need it, so you can rest assured you’re buying the best in design excellence, quality and durability. Please note that your warranty must be registered and activated within 30 days of your invoice date to be eligible. For details of terms and conditions, length of warranty and how to activate your warranty, click below.

    Warranty Registration

    Front Cover Image For Trench Covers Brochure Dura Composites


    GRP Cable Trough & Trench Cover Lids

    Moulded and pultruded open mesh and solid top GRP trench covers, trough covers and drawpit…

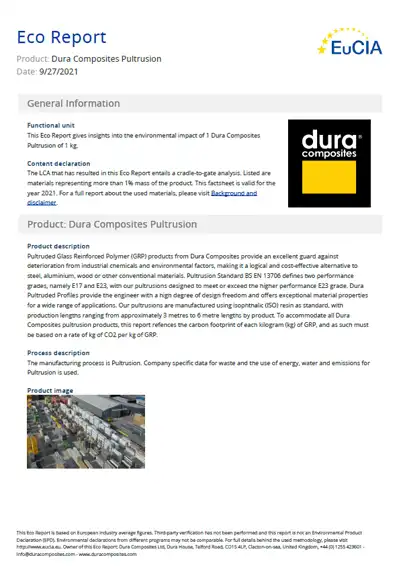

    Pultruded GRP Carbon Report
