    d² Dura Grating Mini Mesh has all the benefits of our Standard Dura Grating but with a smaller open mesh area, which prevent smaller objects from falling through and it complies with BS EN 14122 Category B and the European 20mm Ball Falling Test requirement and comes with a reassuring 25 year warranty.

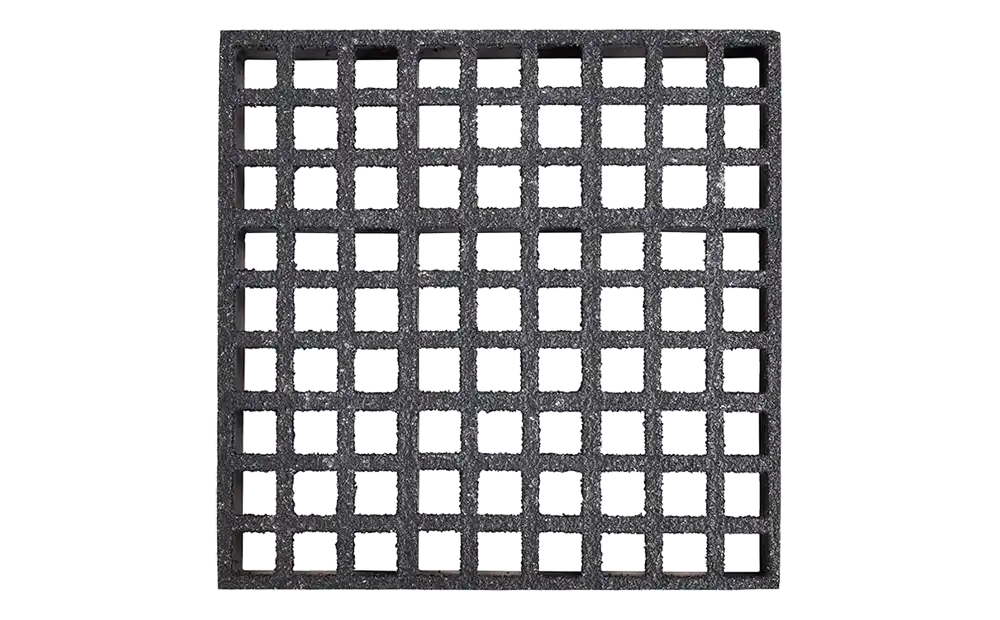

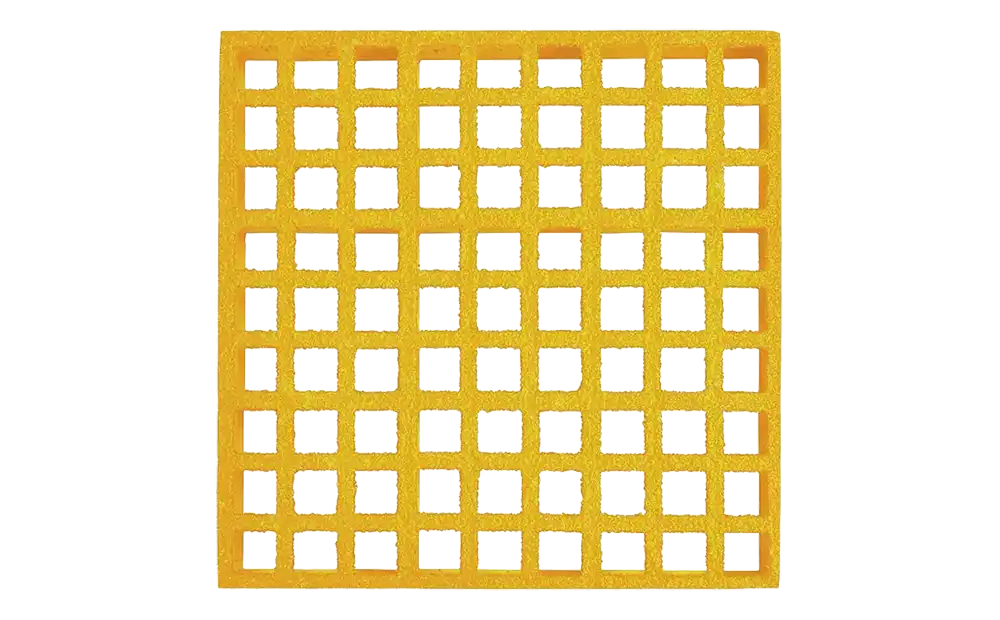

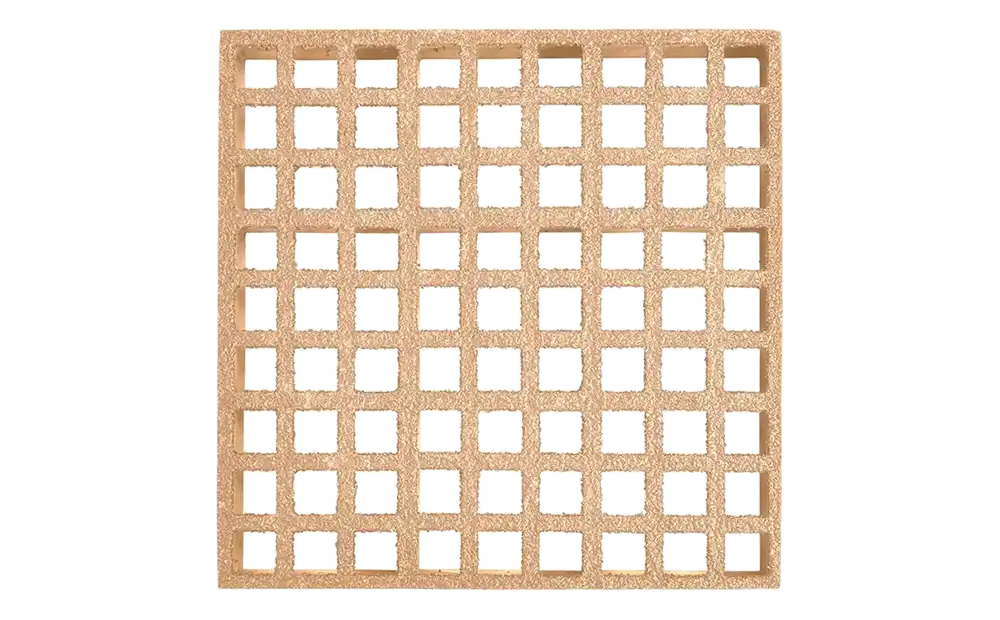

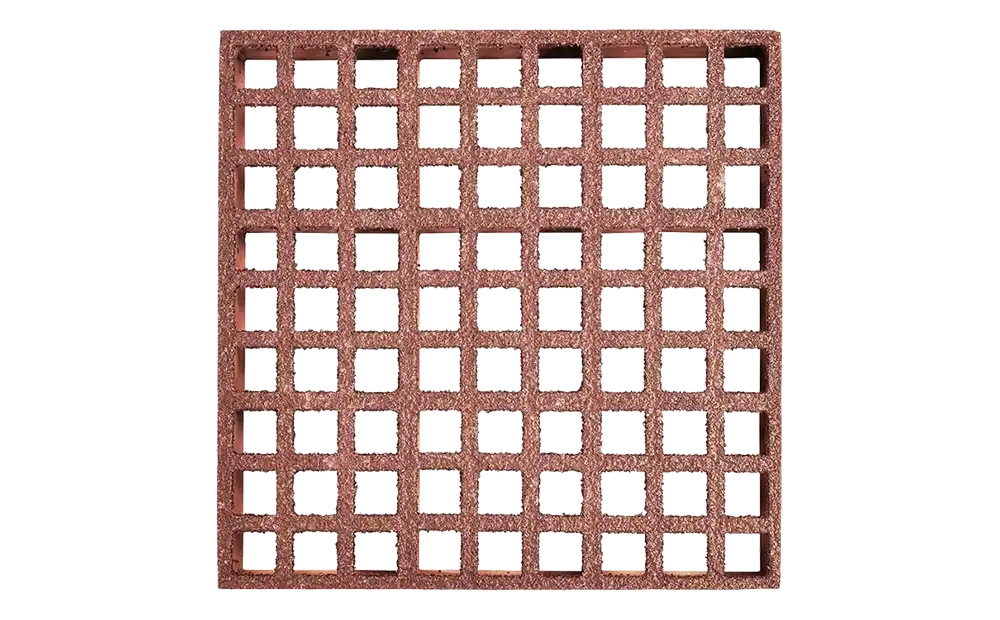

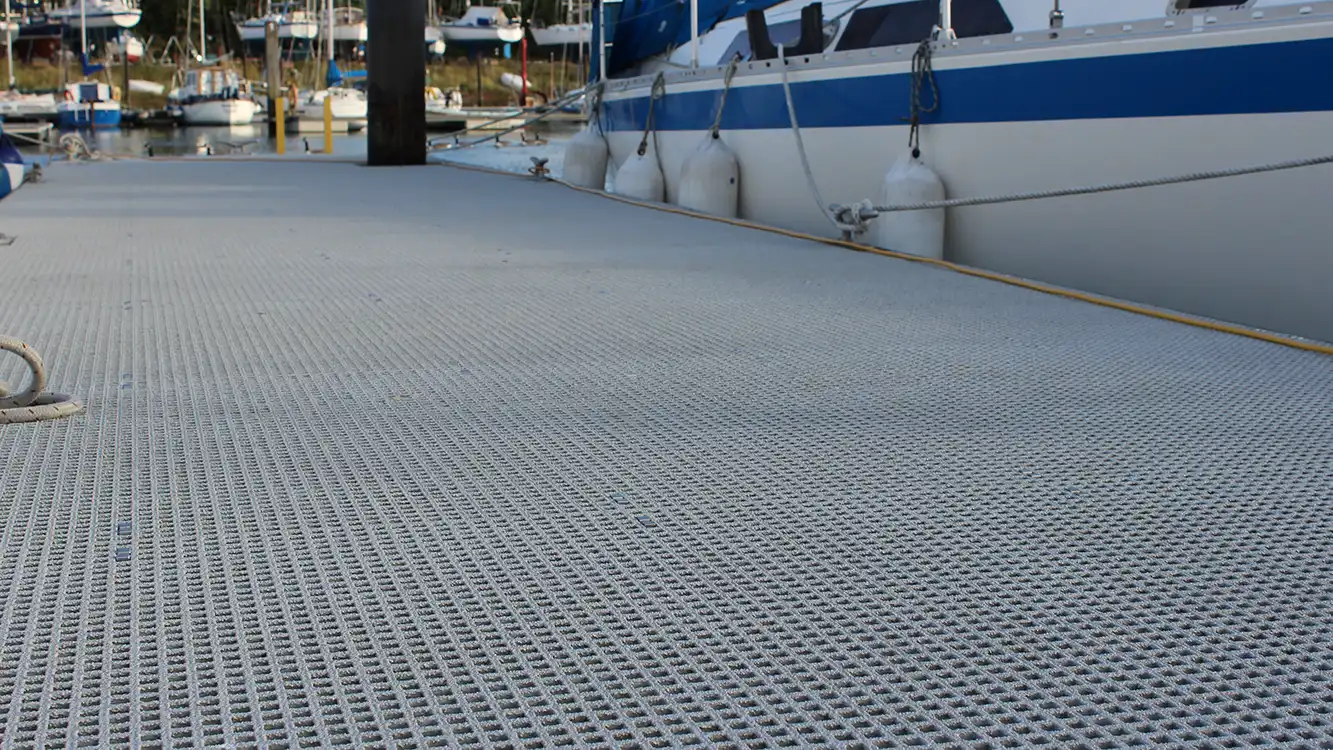

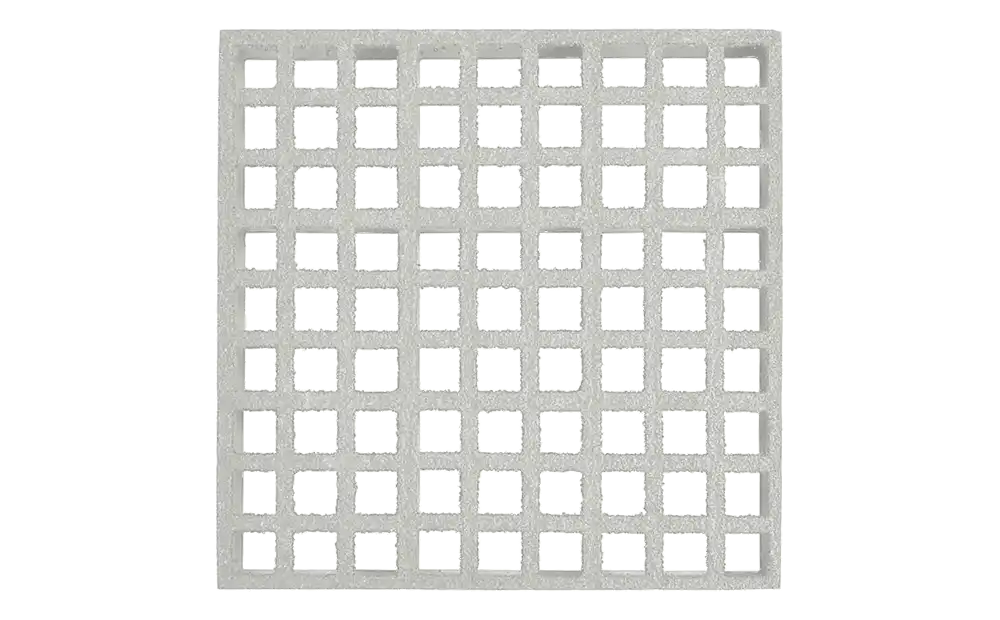

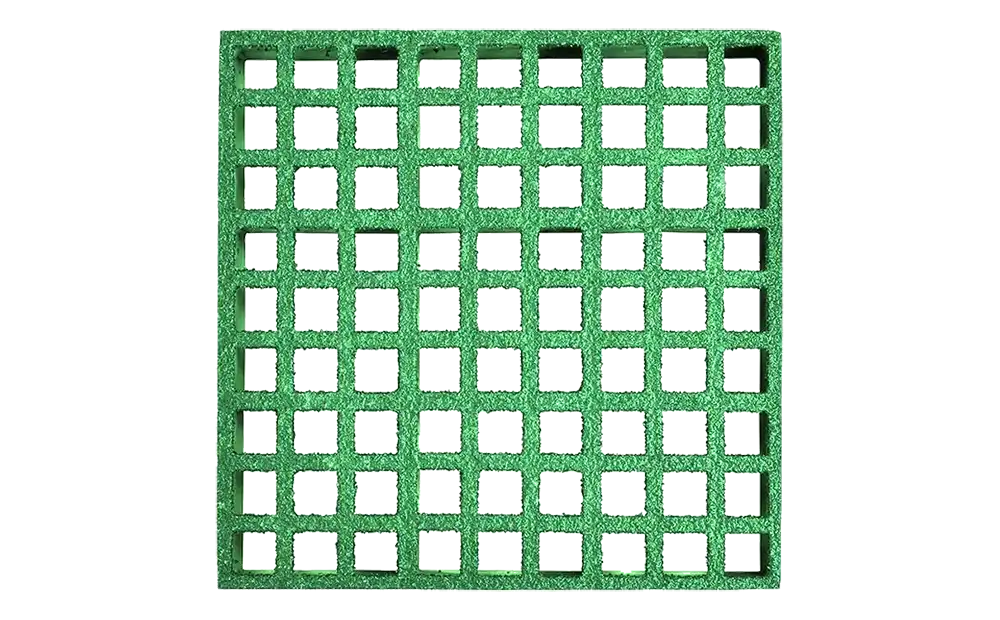

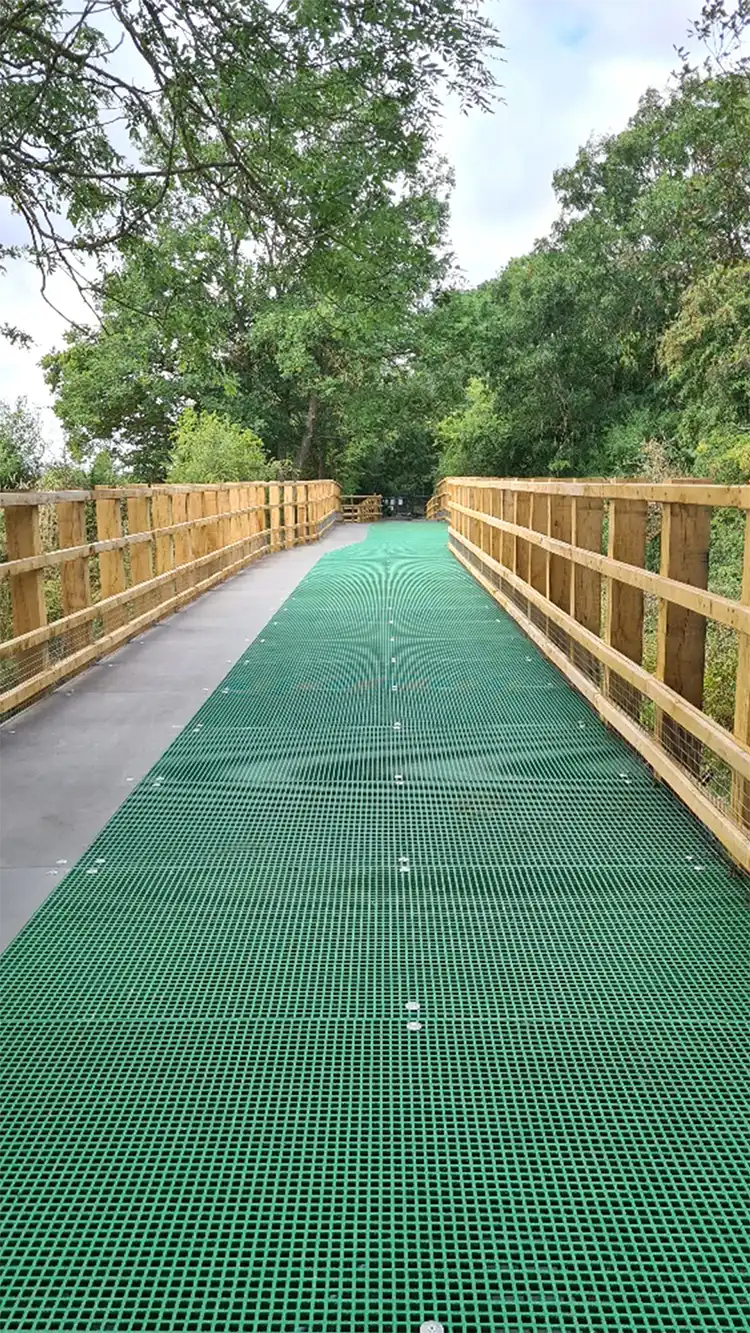

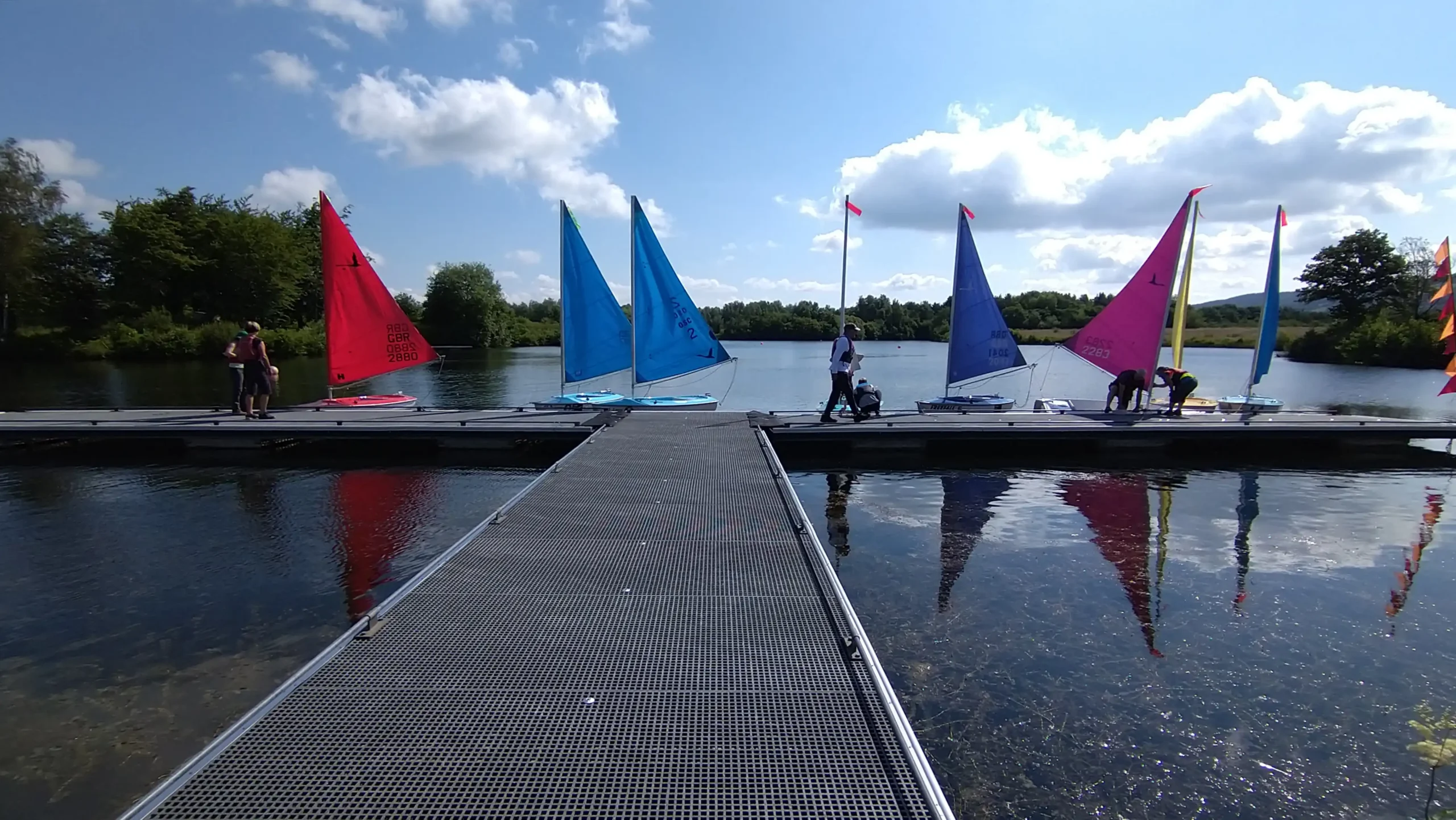

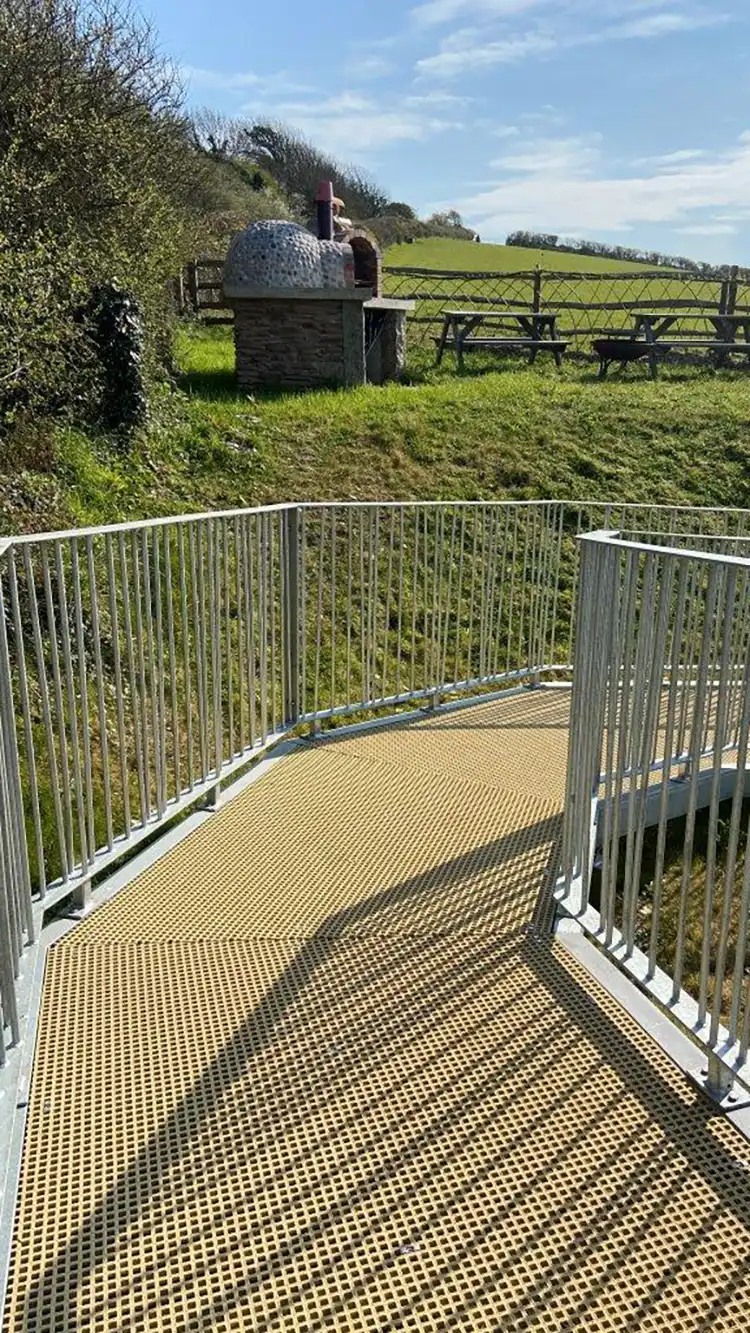

    Our Mini Mesh suits a wide range of projects providing reliability, durability and a long shelf life that is perfect for places like marinas and riser voids. This aesthetically pleasing design comes in several striking colours that really capture the imagination. Available in 30mm, 35mm, 45mm and 55mm thickness in Dark Grey, Yellow and Green. With 23mm available in Green, Dark Grey, Sand, Teak, and Light Grey.

    Patent Granted No: GB2584067.

    • Good Ventilation
    • Suits All Footwear
    • Meets 20mm Ball Test

    Reset options

    Anti-Slip

    Anti Slip Surface

    Maintains 95% of its anti-slip performance even after 1 million footfalls! (BS 7976)

    Fire Rated

    Fire Rated

    Class B fire rating (BS EN 13501)

    Install

    Maintenance Free

    Improved life-cycle offers most cost-effective solution

    Sustainability

    Sustainability in Mind

    Up to 17.33% less embodied carbon than any mini mesh grating available elsewhere in the industry.

    Technical Specifications

    Mini Mesh Grating Thickness23mm30mm35mm45mm50mm55mm
    Open Hole Size / Open Area13mm / 56%13mm / 56%19.5mm / 54%19.5mm / 54%28mm / 63%19.5mm / 54%
    Weight11.1kg per m215.2kg per m213.2kg per m215.3kg per m215.7kg per m219.0kg per m2
    Max Span for 1.5kn Point Load @ 1% deflection630mmTBC1590mm2210mm2770mm2500mm
    Max Span for 1.5kn Point Load @ 0.5% deflection340mmTBC870mm1330mm1800mm2280mm
    Max Span for 5kn Uniformly Distributed Load (UDL) @ 1% deflection1010mmTBC900mm1170mm1270mm1470mm
    Max Span for 5kn Uniformly Distributed Load (UDL) @ 0.5% deflection 770mmTBC710mm880mm970mm1110mm

    Need further Technical Information, Point Load And UDL data? Click here to use our GRP Material Data Analysis Tool

    Need to know specifics?

    Panel Specifications

    ThicknessColourLengthWidthWeightProduct Code
    23mmTeak4033mm1511mm67.40kgDG02310
    23mmTeak4033mm1269mm56.65kgDG02311
    23mmTeak3012mm1029mm34.28kgDG02312
    23mmSand4033mm1511mm67.40kgDG02301
    23mmSand4033mm1269mm56.65kgDG02302
    23mmSand3012mm1029mm34.28kgDG02303
    23mmLight Grey4033mm1511mm67.40kgDG02304
    23mmLight Grey4033mm1269mm56.65kgDG02305
    23mmLight Grey3012mm1029mm34.28kgDG02306
    23mmGreen4033mm1269mm56.65kgDG02313
    23mmGreen4033mm1511mm67.40kgDG02314
    23mmGreen3012mm1029mm34.28kgDG02315
    23mmDark Grey4033mm1511mm67.40kgDG02307
    23mmDark Grey4033mm1269mm56.65kgDG02308
    23mmDark Grey3012mm1029mm34.28kgDG02309
    30mmDark Grey3007mm1027mm46.94kgDG03309
    30mmDark Grey4027mm1267mm77.55kgDG03308
    35mmGreen3030mm1041mm41.64kgDG03522
    35mmGreen3667mm1200mm58.09kgDG03521
    35mmYellow3030mm1041mm41.64kgDG03512
    35mmYellow3667mm1200mm58.09kgDG03511
    35mmDark Grey3030mm1041mm41.64kgDG03503
    35mmDark Grey3667mm1200mm58.09kgDG03502
    45mmGreen3030mm1041mm41.64kgDG01022
    45mmGreen3667mm1200mm58.09kgDG01021
    45mmYellow3030mm1041mm41.64kgDG01012
    45mmYellow3667mm1200mm58.09kgDG01011
    45mmDark Grey3030mm1041mm41.64kgDG01004
    45mmDark Grey3667mm1200mm58.09kgDG01003
    55mmGreen3030mm1041mm41.64kgDG05522
    55mmGreen3667mm1200mm58.09kgDG05521
    55mmYellow3030mm1041mm41.64kgDG05512
    55mmYellow3667mm1200mm58.09kgDG05511
    55mmDark Grey3030mm1041mm41.64kgDG05503
    55mmDark Grey3667mm1200mm58.09kgDG05502

    A wide range of stainless steel fixing solutions are available to cater for the huge number of applications that our d² Dura Grating is suited to. Please review the table below to find the type most suited to your grating thickness.

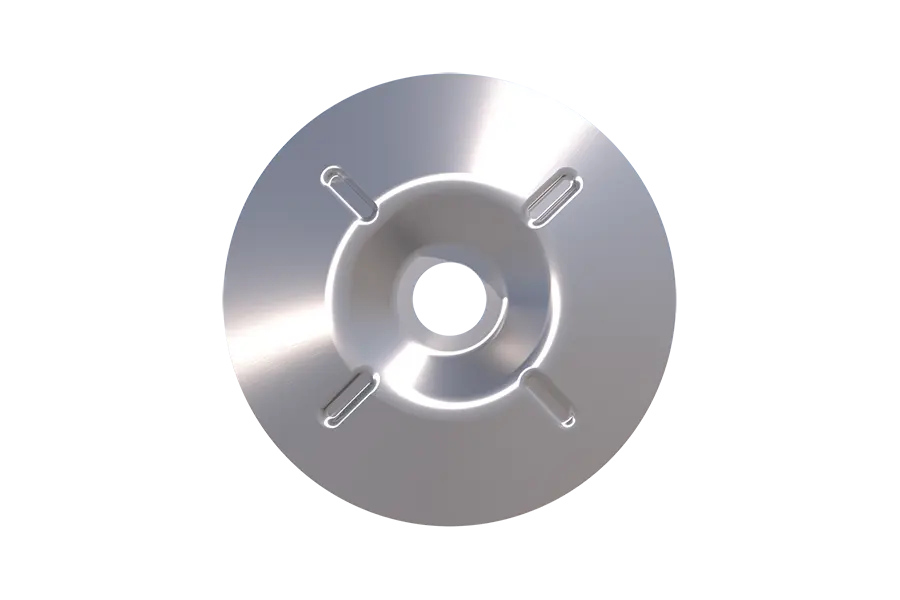

    Dome Washer

    Dome Washer

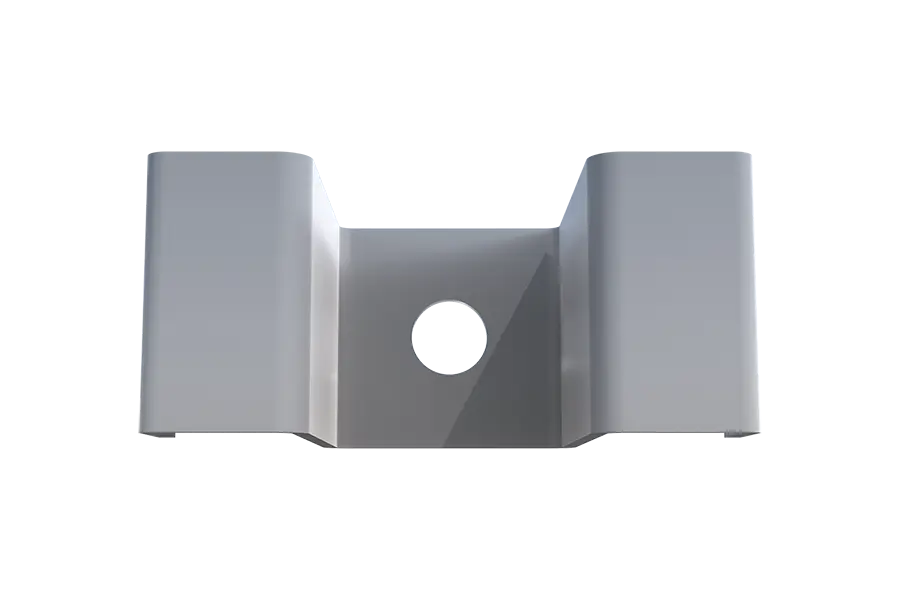

    M Clip

    M Clip

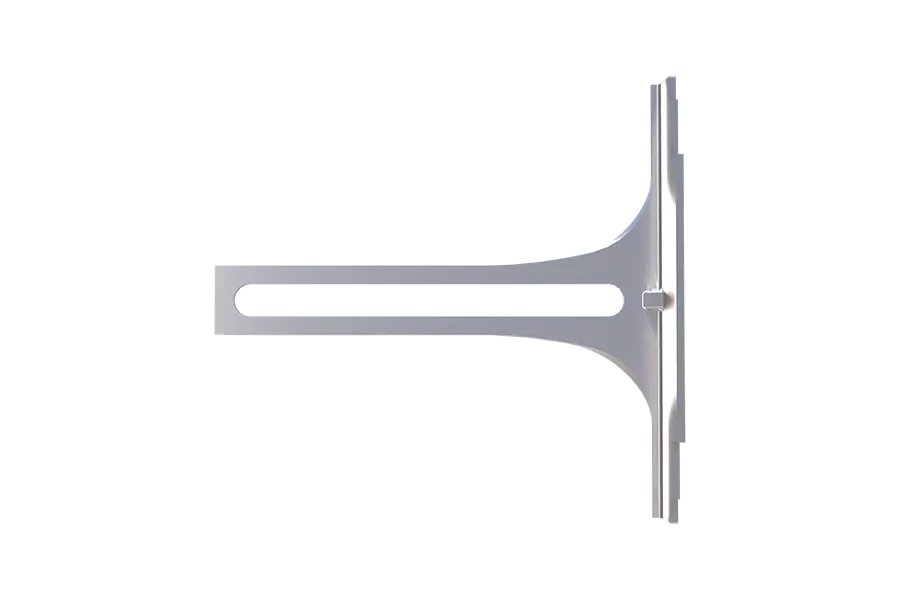

    J Clamp Straight

    Straight J Clamp

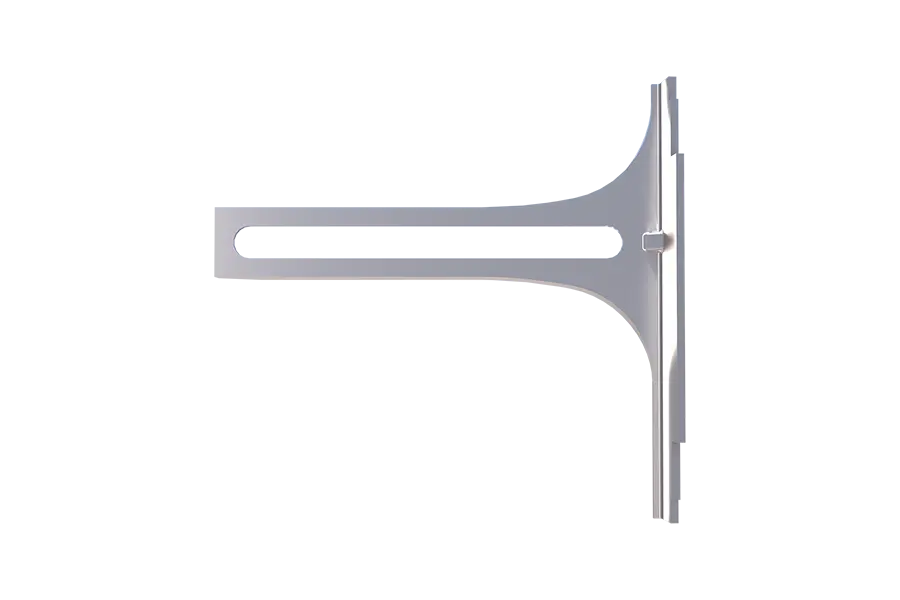

    J Clamp Offset

    Offset J Clamp

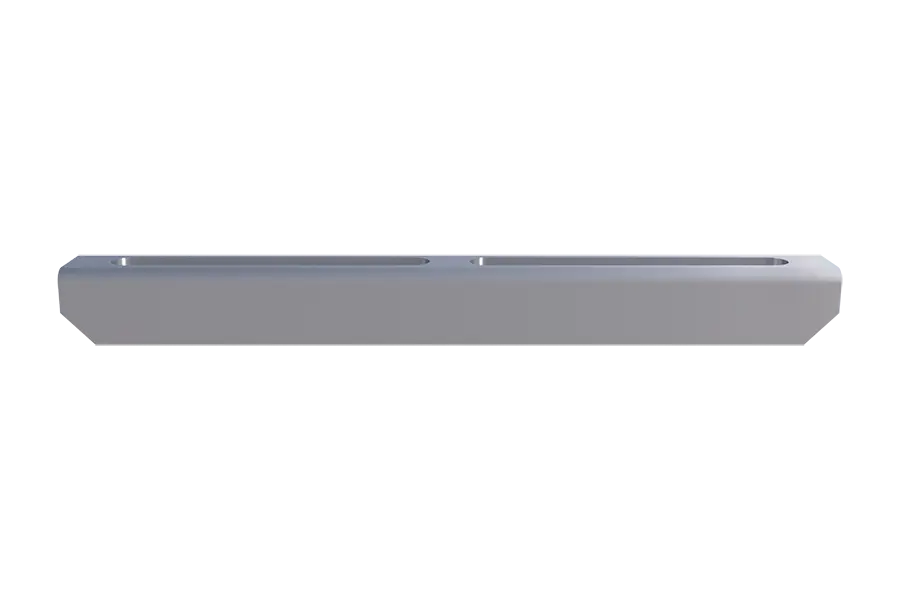

    Channel Bar Clamp

    Channel

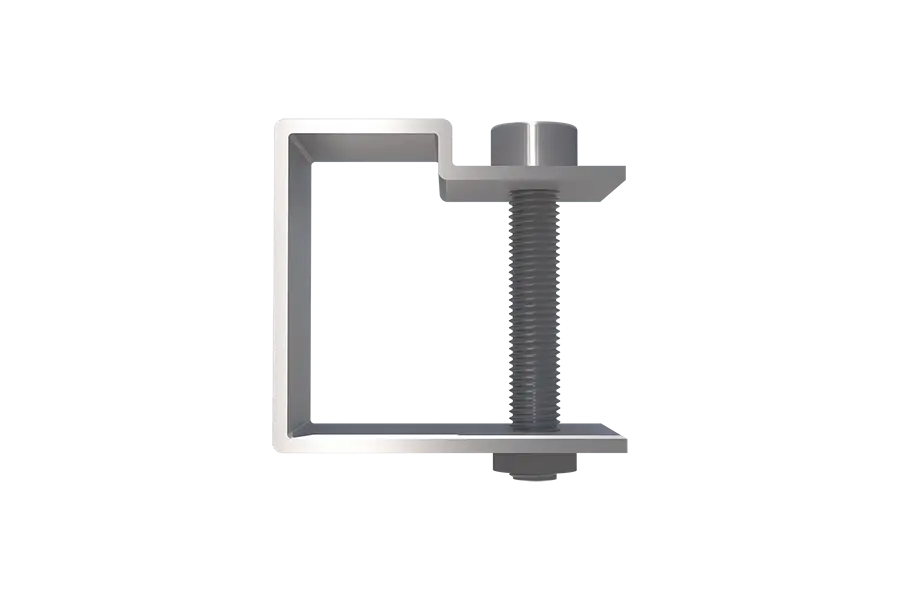

    G Clamp

    G Clamp

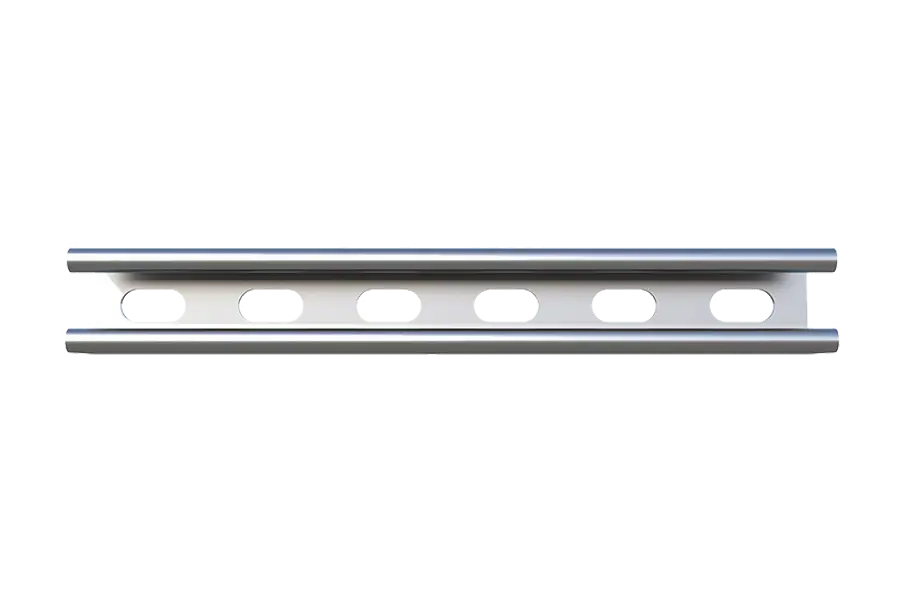

    Unistrut Bar Clamp

    Unistrut Bar

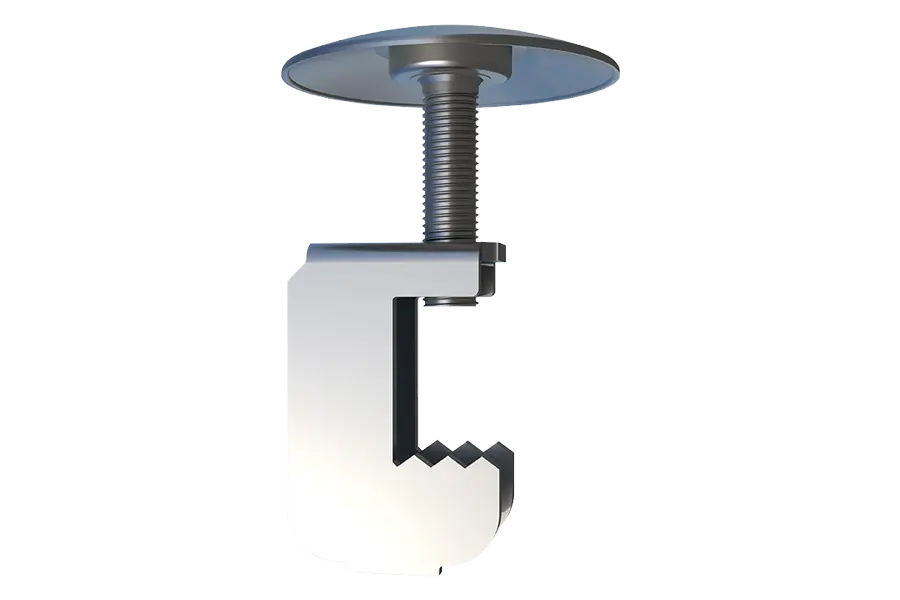

    Jaw Clamp

    Jaw Clamp

    Fixing TypeProduct Code23mm30mm35mm45mm55mm
    Dome Washer | MicroBFX01002
    Dome Washer | Small BFX01005
    Dome Washer | LargeBFX01003
    Dome Washer | Extra Large BFX02165
    M Clip | Shallow BFX01010
    M Clip | Deep BFX01009
    J Clamp | StraightFX01130
    J Clamp | OffsetFX01128
    Uni-Strut ClampDP05053
    Channel ClampBFX01027
    Jaw ClampFX01033
    G ClampBFX01017
    G ClampBFX01018

    Key

    Recommended fixing for product
    Limited compatibility, for use only with the recommendation from your Dura representative
    Not compatible or recommended

    Our specialist services empower architects, engineers, project managers, and designers to design, specify and deploy composite products with ease. Our CAD, Structural Design and Fabrication teams support our customers make data-driven decisions about the right product specifications for their projects.

    Our installation consultation services include:

    • Pre-Installation Support, Training & Toolbox Talks
    • Contract Installation
    • Drone & Laser Scanning
    • Day 1 Installation Support
    • Site Visits & Snagging Assessments
    • Final Inspection & Sign Off

    Other value added services available at any project stage include Design & Engineering, Fabrication, Preventative Maintenance Inspections and Specialist Cutting.

    Find out more

    Delivery

    Standard lead time on orders from our Webshop is 3 – 5 working days (Mainland UK; stock dependent).

    Large orders may be subject to palletised deliveries which are to the property kerbside only. Your order will need to be unloaded by hand (hand-balled) off the lorry side. A person must be present to help unload the goods and sign for receipt. Delivery drivers are not insured to help unload the goods beyond the property kerbside.

    For our Dura Deck Tile products we offer free delivery to the majority of mainland UK. Unfortunately, Dura Composites is unable to offer free delivery to certain areas – including Northern Ireland, the Scottish Highlands & Offshore Islands, Isle Of Wight, Isle of Man, the Channel Islands and the Isles of Scilly.

    If your postcode prefix is listed below we would be happy to provide a delivery quote. Please call our Websales Customer Care Team on 01255 446838 to place your order. Postcodes subject to delivery charge include:

    • Northern Ireland (All BT postcodes)
    • Scottish Highlands (AB30, AB33 – AB38, AB41 – AB56, FK17 – FK21, IV1 – IV63, PA20 – PA80, PH15 – PH27, PH30 – PH45, PH49, PH50, KW1 – KW18)
    • Scottish Offshore (HS1 – HS9, KA27, KA28, ZE1 – ZE3)
    • Scottish Borders (All TD and DG postcodes)
    • Isle of Man (All IM postcodes)
    • Isle of Wight (PO30 to PO41)
    • Isles of Scilly (TR21 to TR25)
    • Channel Islands incl. Jersey, Guernsey, Alderney, Sark & Herm (All JE and GY postcodes)

    Returns

    If you wish to return or exchange your goods, please complete the form dispatched with your order and return within 14 days to the address below. Items must be unused and in perfect, resale condition and in their original packaging, and the Returns Form must be included. Once the goods have been received and inspected to check they meet the requirements outlined above you will receive a refund (credited back to the method you paid with) or a new shipping notification for your requested exchange within 7 working days of receipt.

    The replacement item(s) will be shipped to you free of charge (once per customer). Please note we cannot exchange items of differing value. If you choose to return any items that were purchased as part of a promotion, and by returning part of your order your remaining total means you are no longer eligible for the original discount, the value of that discount will be deducted from any refunds due.

    Please note the customer is responsible for the postage to return the item to us. We recommend using a Signed For recorded postal service as Dura Composites Ltd are not liable for any items that go missing en-route back to us. Thank you for your cooperation.

    Returns should be sent to:

    Dura Composites Returns Dept.
    Dura Operations Centre,
    Telford Road,
    Clacton on Sea,
    Essex CO15 4LP

    If you have not yet been issued with your Unique Returns Number (URN) or require a Returns Form, please e-mail customercare@duracomposites.com or call us on +44 (0)1255 423601 to discuss your request.

    Please register your product to activate your warranty. Dura Composites warranty gives you peace of mind and expert back up should you ever need it, so you can rest assured you’re buying the best in design excellence, quality and durability. Please note that your warranty must be registered and activated within 30 days of your invoice date to be eligible. For details of terms and conditions, length of warranty and how to activate your warranty, click below.

    Warranty Registration

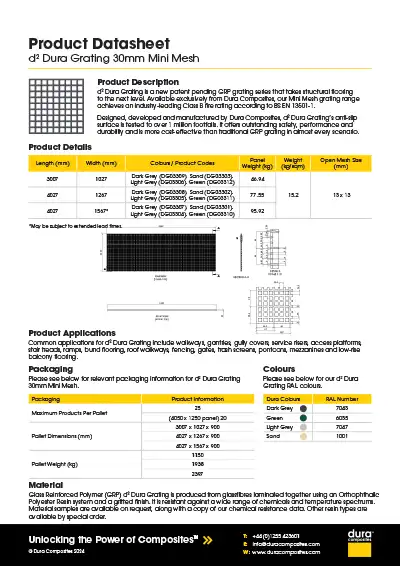

    d2-Dura-Grating-Mini-Mesh-30mm-Product-Datasheet-Dura-Composites

    Datasheets

    d² Dura Grating 30mm Mini Mesh

    d² Dura Grating is a new patent pending GRP grating series that takes structural flooring…

    Download
    IMAGE-Material-Safety-Data Sheet-d2-Dura-Grating

    MSDS

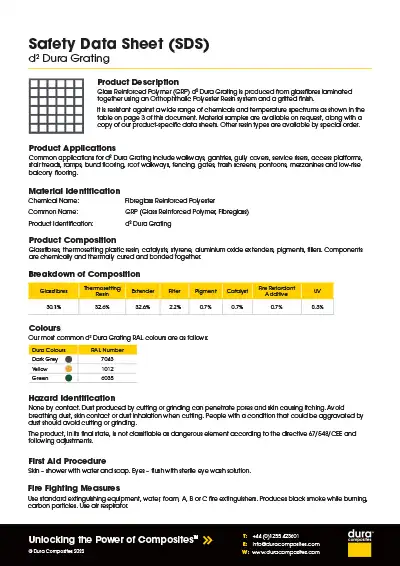

    d² Dura Grating MSDS

    Working safely with composite products.

    Download
    d2-Dura-Grating-Mini-Mesh-55mm-Product-Datasheet-Dura-Composites

    Datasheets

    d² Dura Grating 55mm Mini Mesh

    d² Dura Grating is a new patent pending GRP grating series that takes structural flooring…

    Download

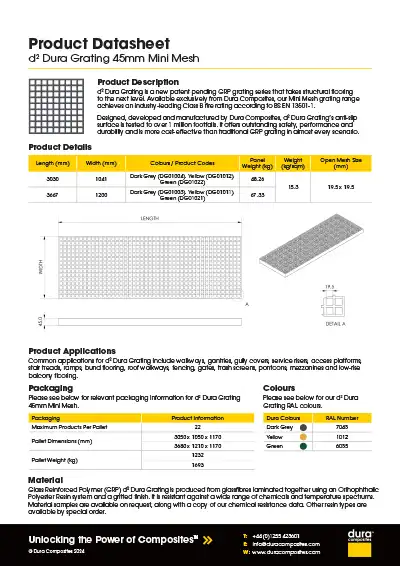

    d2-Dura-Grating-Mini-Mesh-45mm-Product-Datasheet-Dura-Composites

    Datasheets

    d² Dura Grating 45mm Mini Mesh

    d² Dura Grating is a new patent pending GRP grating series that takes structural flooring…

    Download

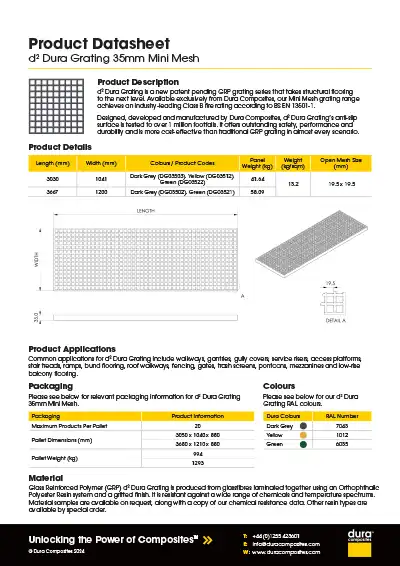

    d2-Dura-Grating-Mini-Mesh-35mm-Product-Datasheet-Dura-Composites

    Datasheets

    d² Dura Grating 35mm Mini Mesh

    d² Dura Grating is a new patent pending GRP grating series that takes structural flooring…

    Download

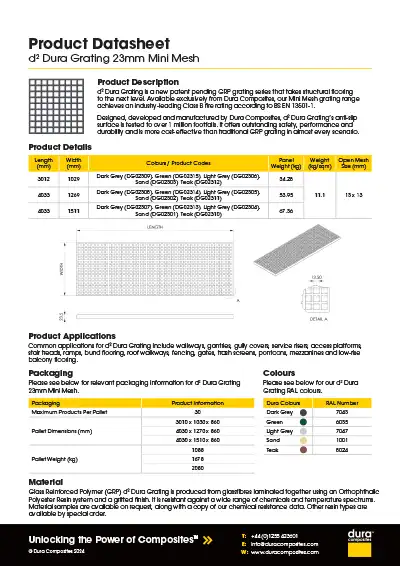

    d2-Dura-Grating-Mini-Mesh-23mm-Product-Datasheet-Dura-Composites

    Datasheets

    d² Dura Grating 23mm Mini Mesh

    d² Dura Grating is a new patent pending GRP grating series that takes structural flooring…

    Download

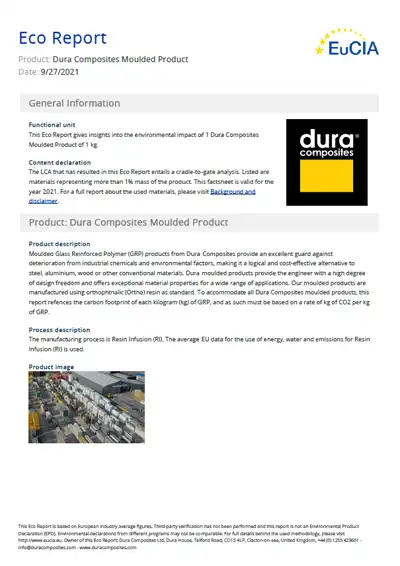

    Dura-Composites-Moulded-Product-Carbon-Report
