Dura Deck® Aluminium Positive-Drain decking is engineered for superior performance and safety, making it the ideal choice for balconies and elevated spaces. Available in 18mm and 27mm thicknesses, its innovative patented profile (Patent No. GB 2 615 096) offers positive drainage, ensuring efficient water management by guiding rainwater to a gutter across areas exceeding 6m².

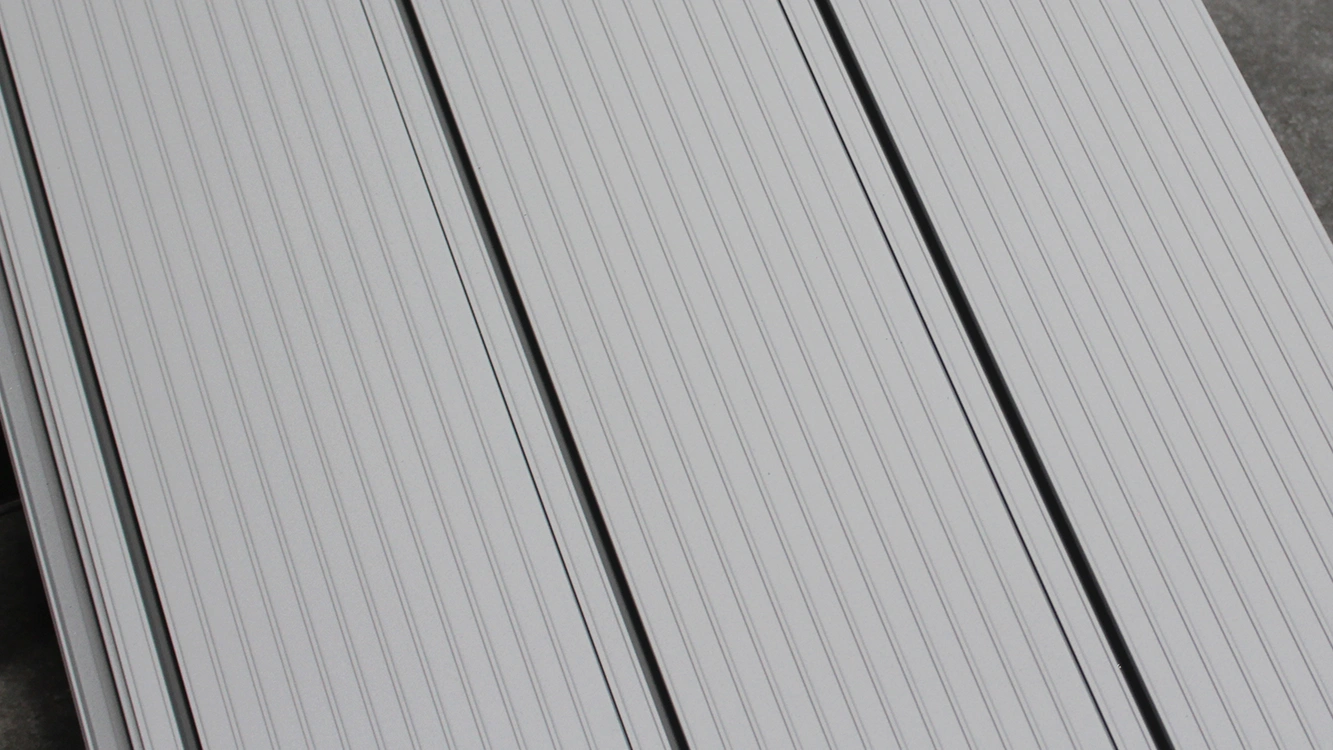

With a 150mm visible face, the Positive-Drain planks combine exceptional fire safety with modern functionality, achieving a Class A2 fl-s1 fire rating, essential for mid and high-rise buildings. The robust double-skin construction features an anti-slip surface for added safety and a smooth underside that creates an integrated, attractive soffit detail.
Our aluminium decking is designed for durability and sustainability, being 100% recyclable at the end of its life to support a circular economy. Advanced engineering reduces material use by up to 25%, lowering our carbon footprint without compromising performance.
When paired with Dura Bearers and Dura Pedestals, this system offers a fully Class A2 fire-rated, low-maintenance flooring solution. All Dura Deck Aluminium products are UKAS accredited, delivering reliable performance and peace of mind.
Compliant with EU and UK government recommendations, perfect for buildings over 11 metres in height.
Anti-slip tested, achieving low Pendulum Test Values (PTV) in both wet and dry conditions.

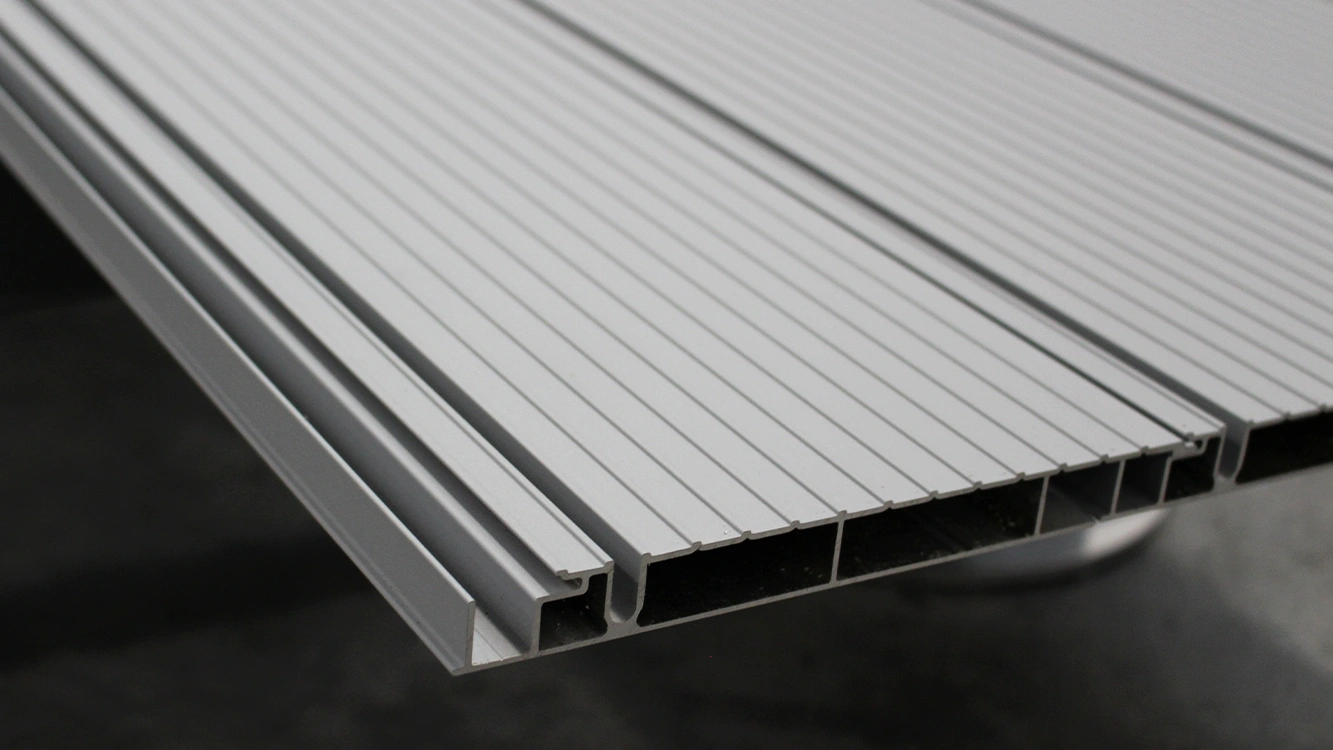

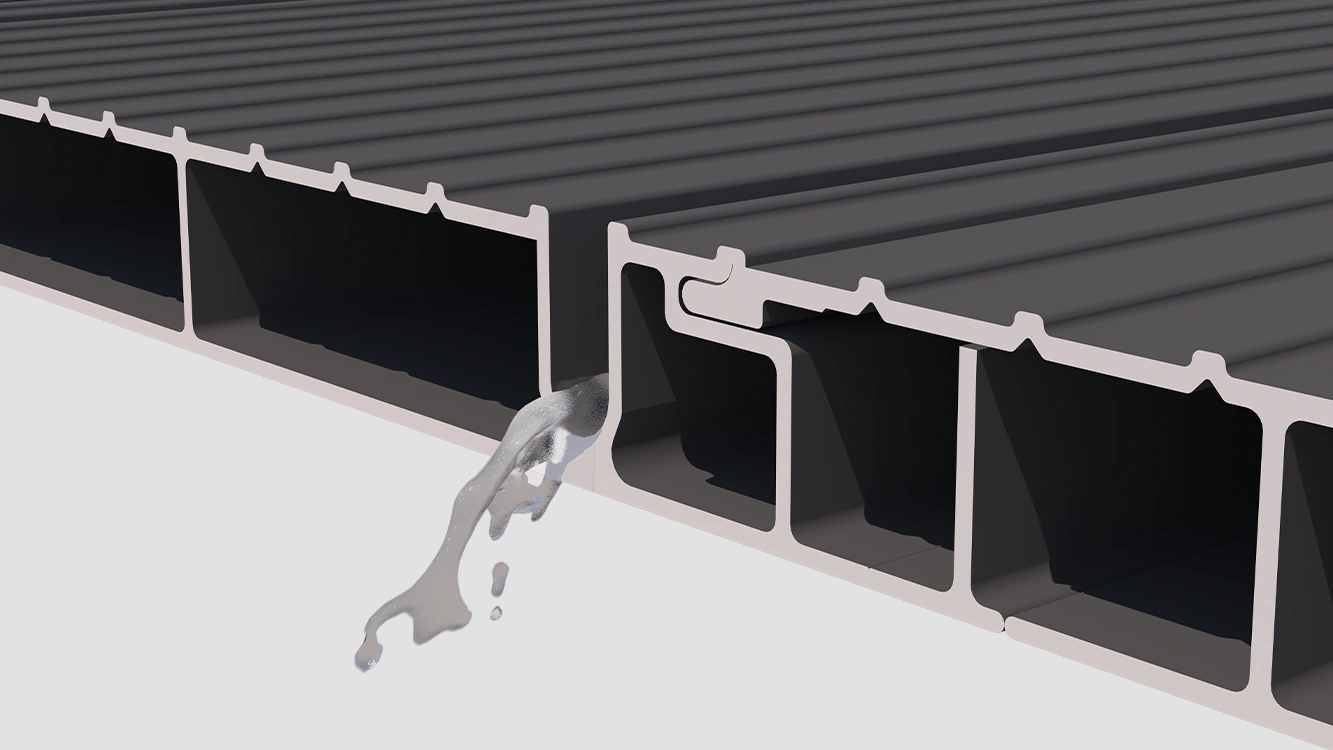

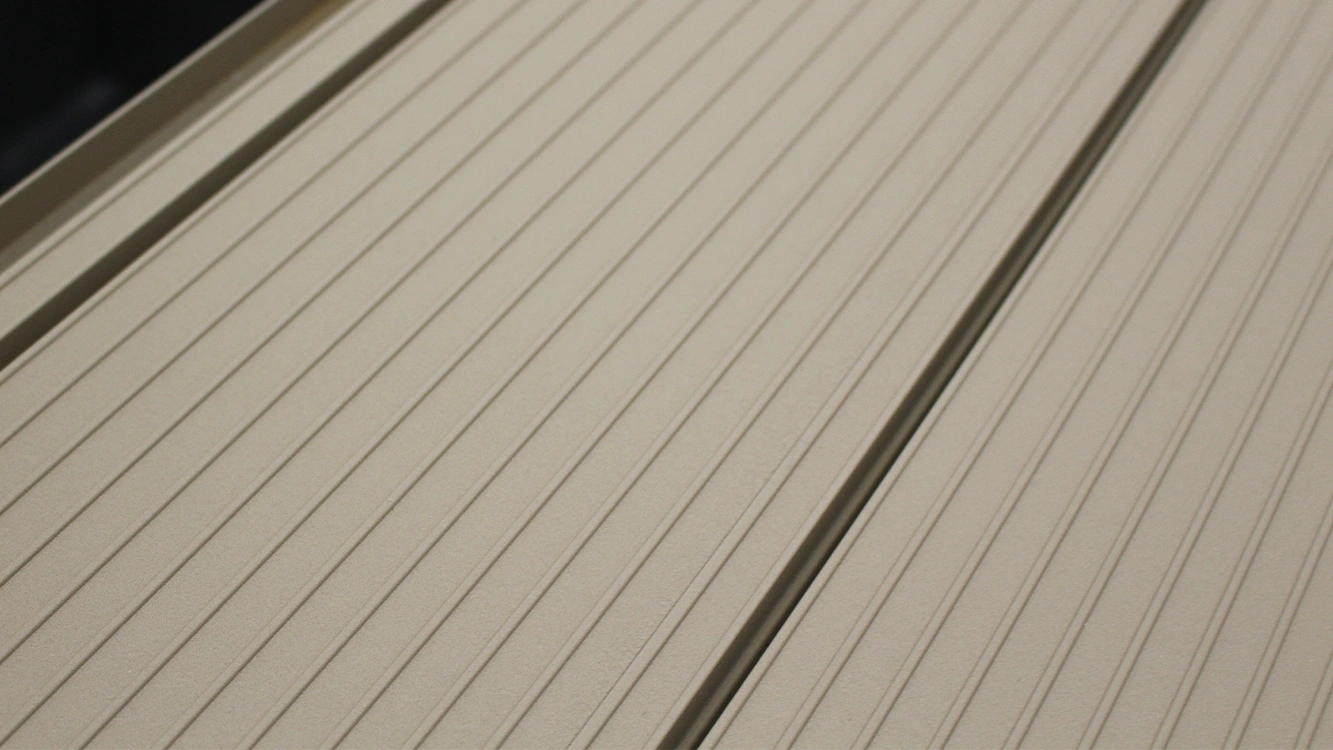

Efficient water management to gutters for areas over 6m² and reeded deck surface for rainwater dispersal.
Positive-Drain Type | Length (mm) | Width (mm) | Face Cover (mm) | Thickness (mm) | Plank Weight m² (kg) | Weight Per m² (kg) | Aluminium Grade | Colours/Product Codes | Product Datasheet |
---|---|---|---|---|---|---|---|---|---|

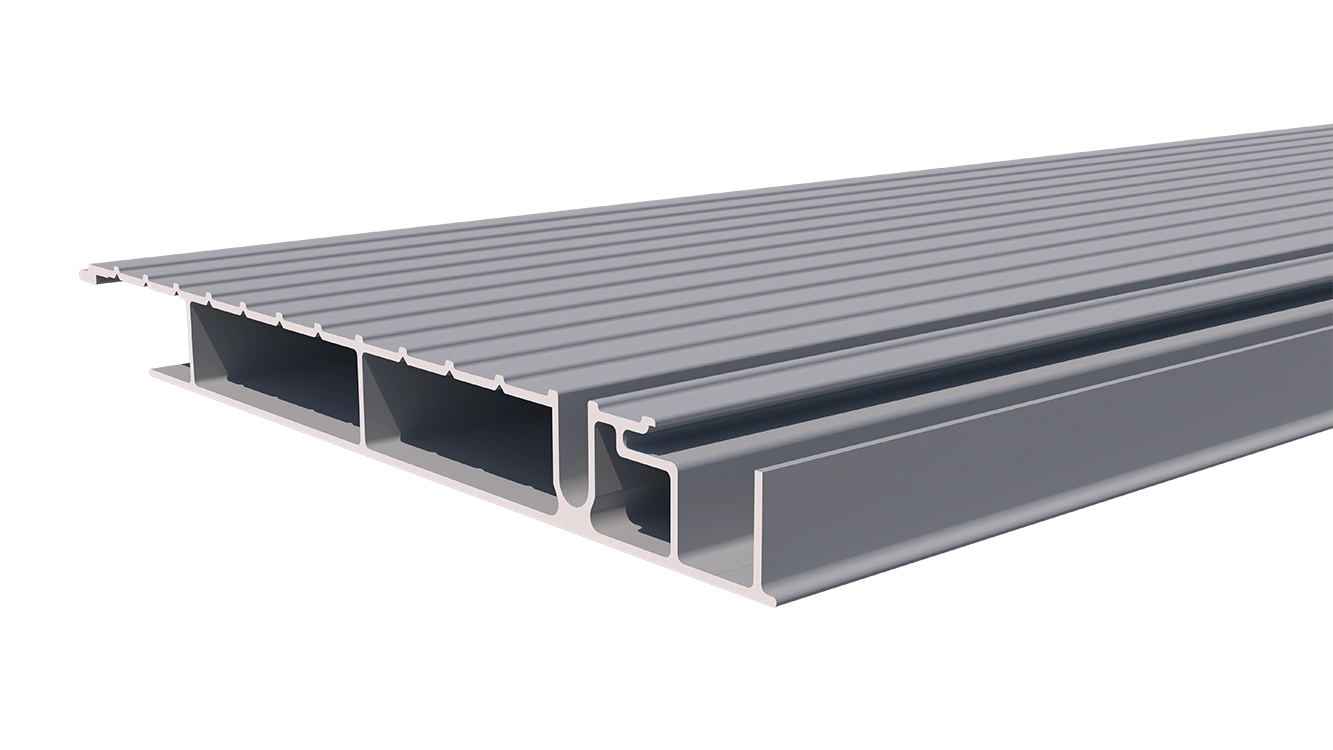

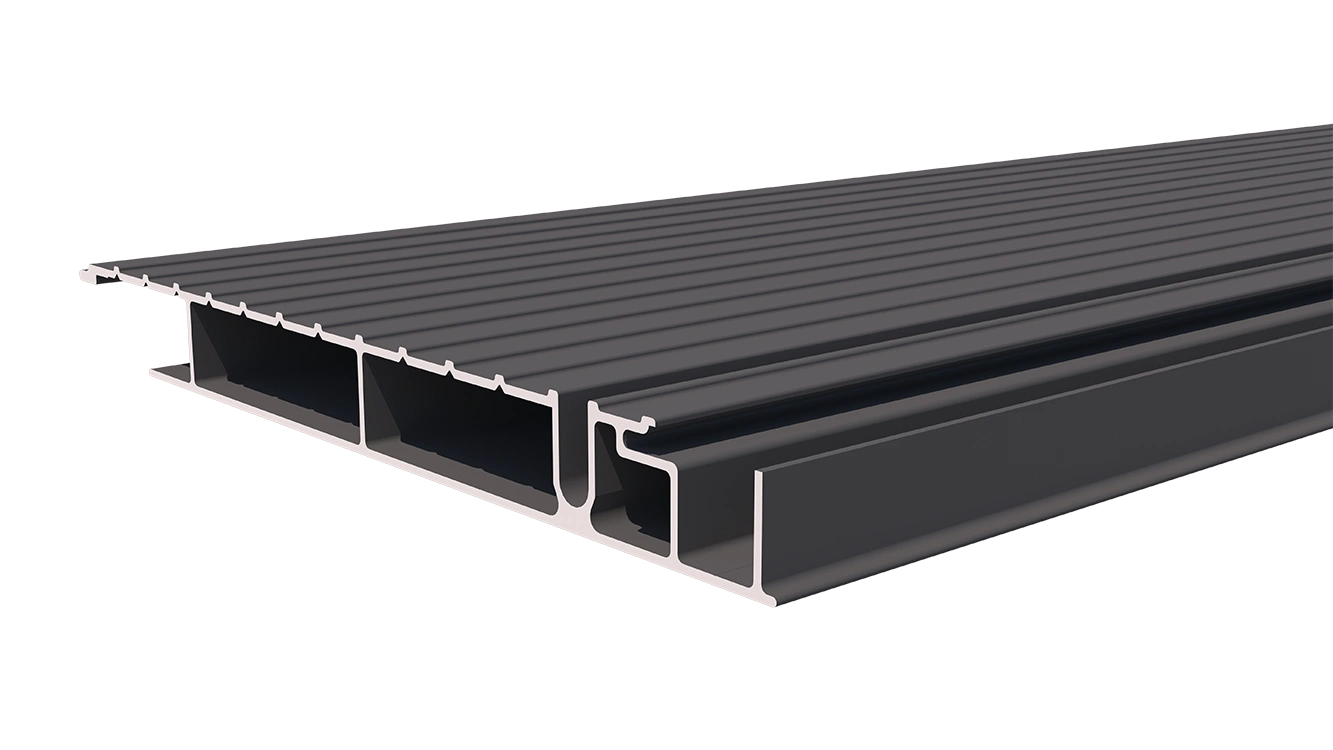

Positive-Drain 18mm | 5800 | 183 | 150 | 18 | 8.75 | 10.05 | 6063 T6 | Cedar (DDA07001) Mist (DDA08001) Anthracite (DDA09001) | 18mm Datasheet |

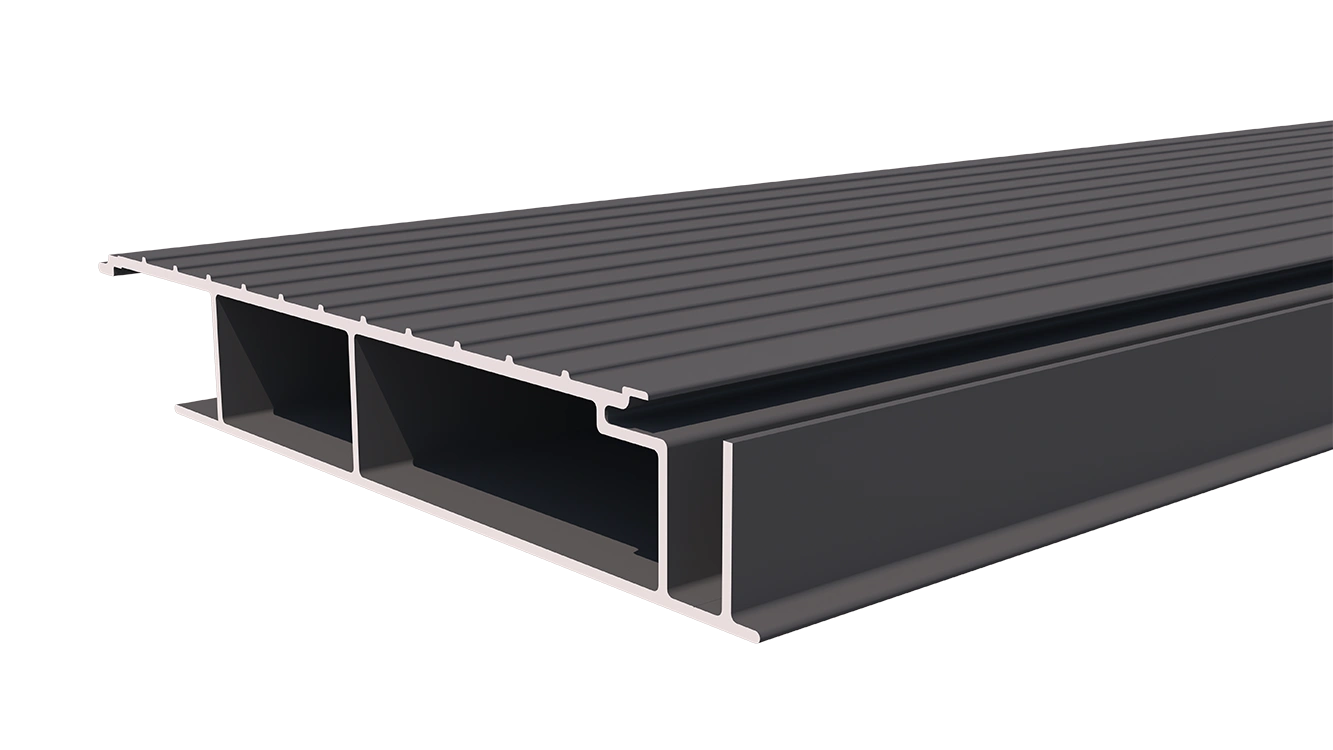

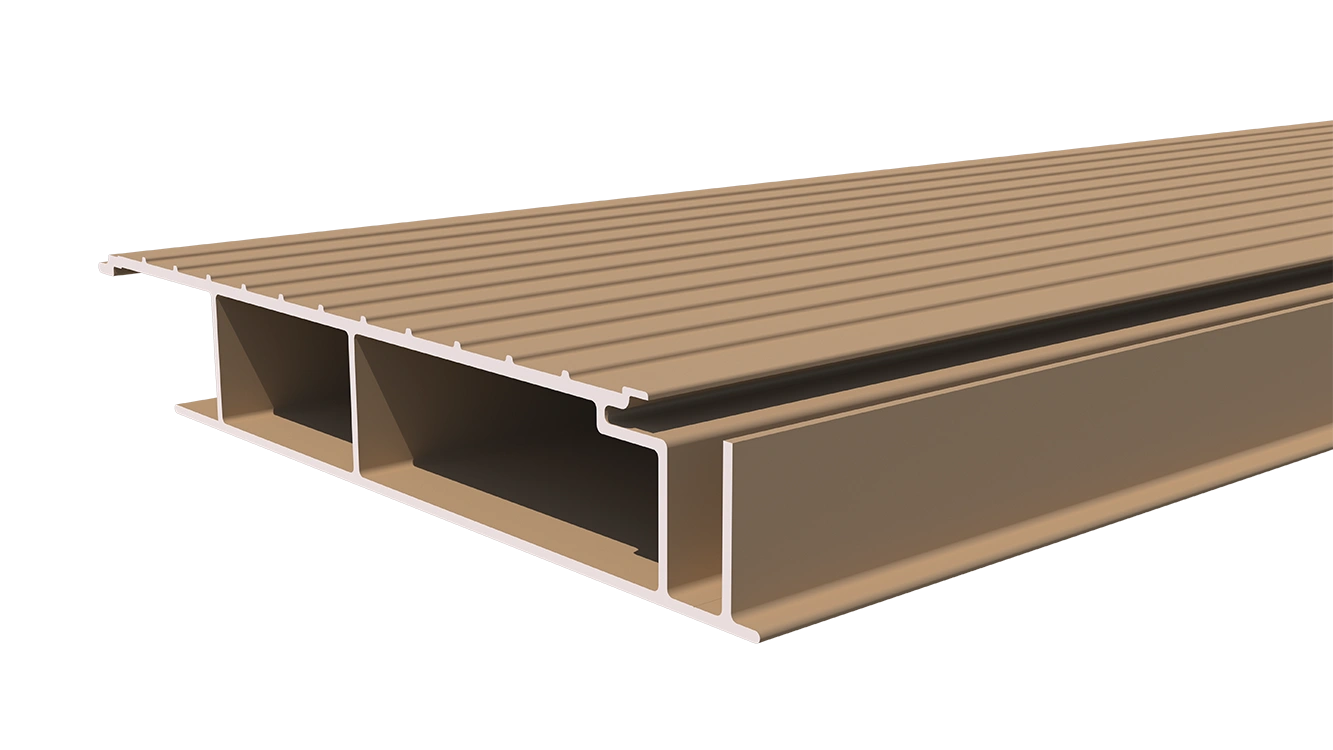

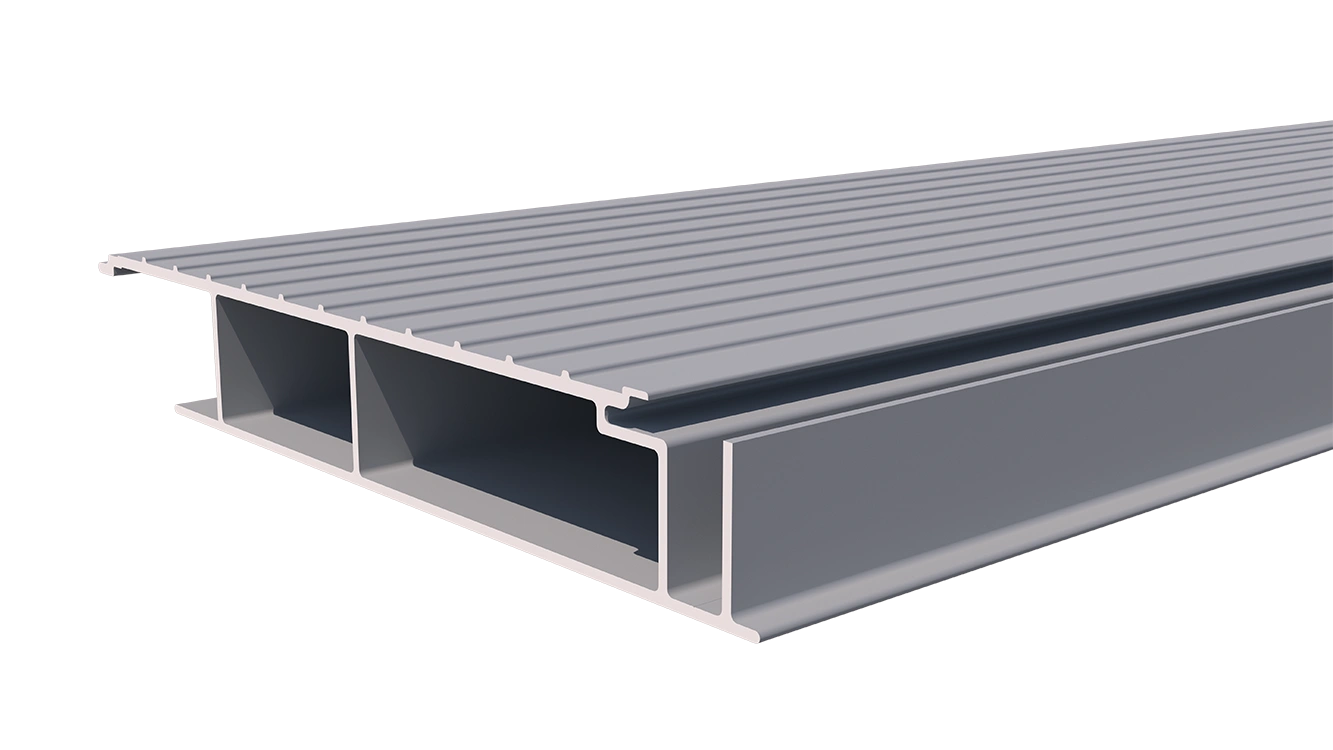

Positive-Drain 27mm | 3660 | 178 | 150 | 27 | 7.3 | 13.29 | 6063 T6 | Cedar (DDA01001) Mist (DDA02001) Anthracite (DDA03001) | 27mm Datasheet |
Positive-Drain Type | Span & Loading | Deflection |
---|---|---|
Positive-Drain 18mm | Up to 1050mm Span based on 2kN Point Load (@5kN/UDL) | L/200 |
Positive-Drain 27mm | Up to 1400mm Span based on 2kN Point Load (@5kN/UDL) | L/200 |
Explore our solutions and services to help you build resilient, greener and safer infrastructure.
Test Reports

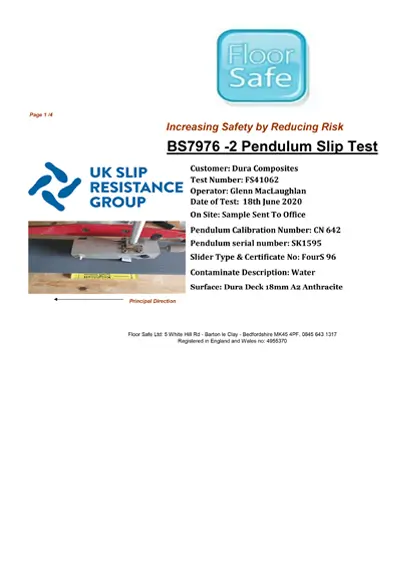

Increasing safety by reducing risk, Dura Deck Aluminium has undergone the Pendulum Slip Test in…
DownloadTest Reports

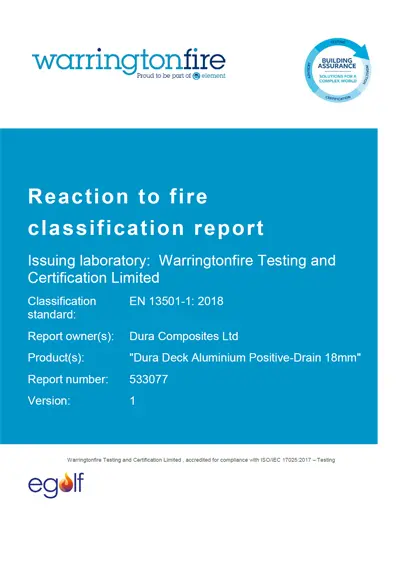

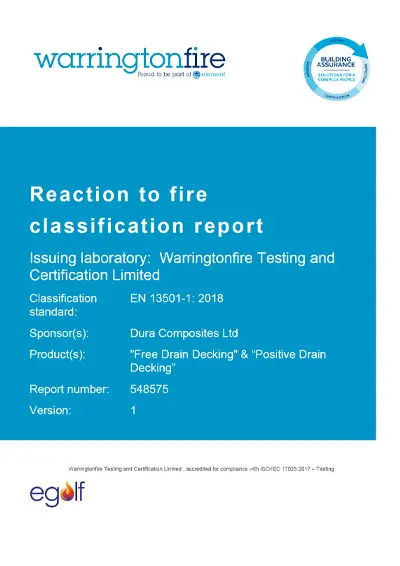

Classification of reaction to fire performance in accordance with BS EN 13501-1:2018 for Dura Deck…
DownloadTest Reports

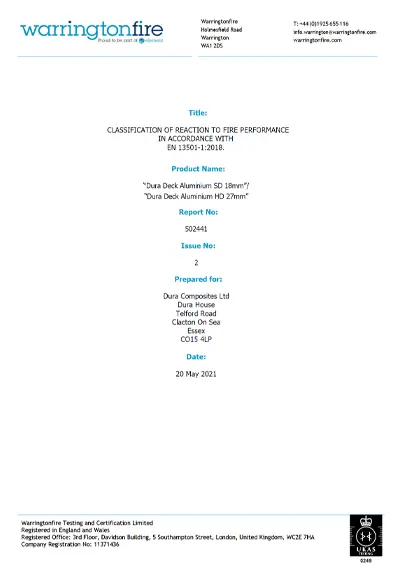

Classification of reaction to fire performance in accordance with BS EN 13501-1:2018 for Dura Deck…
DownloadTest Reports

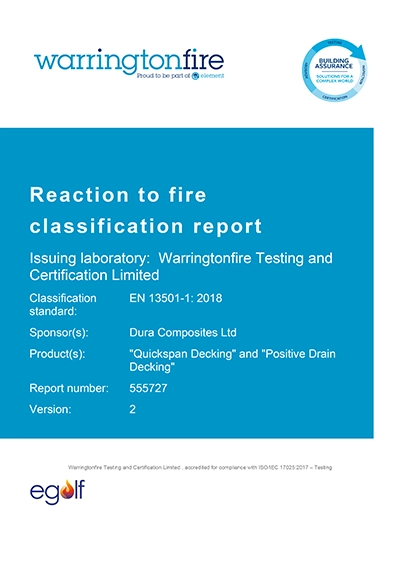

Classification of reaction to fire performance in accordance with BS EN 13501-1:2018 for Dura Deck…
DownloadTest Reports

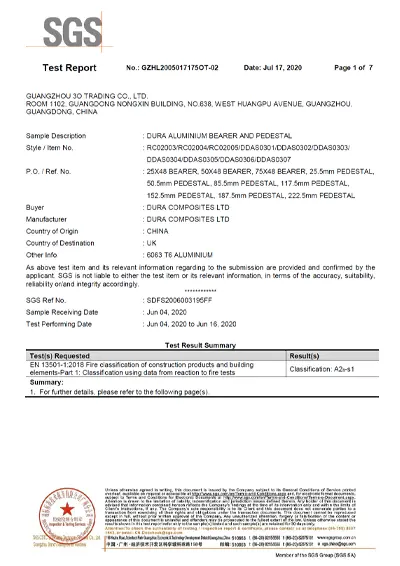

Classification of reaction to fire performance in accordance with BS EN 13501-1:2018 for Dura Aluminium…
DownloadDatasheets

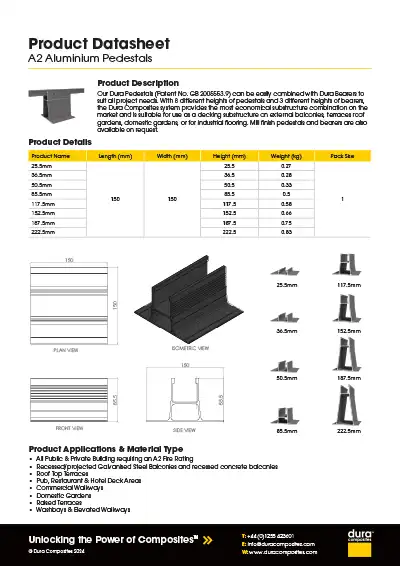

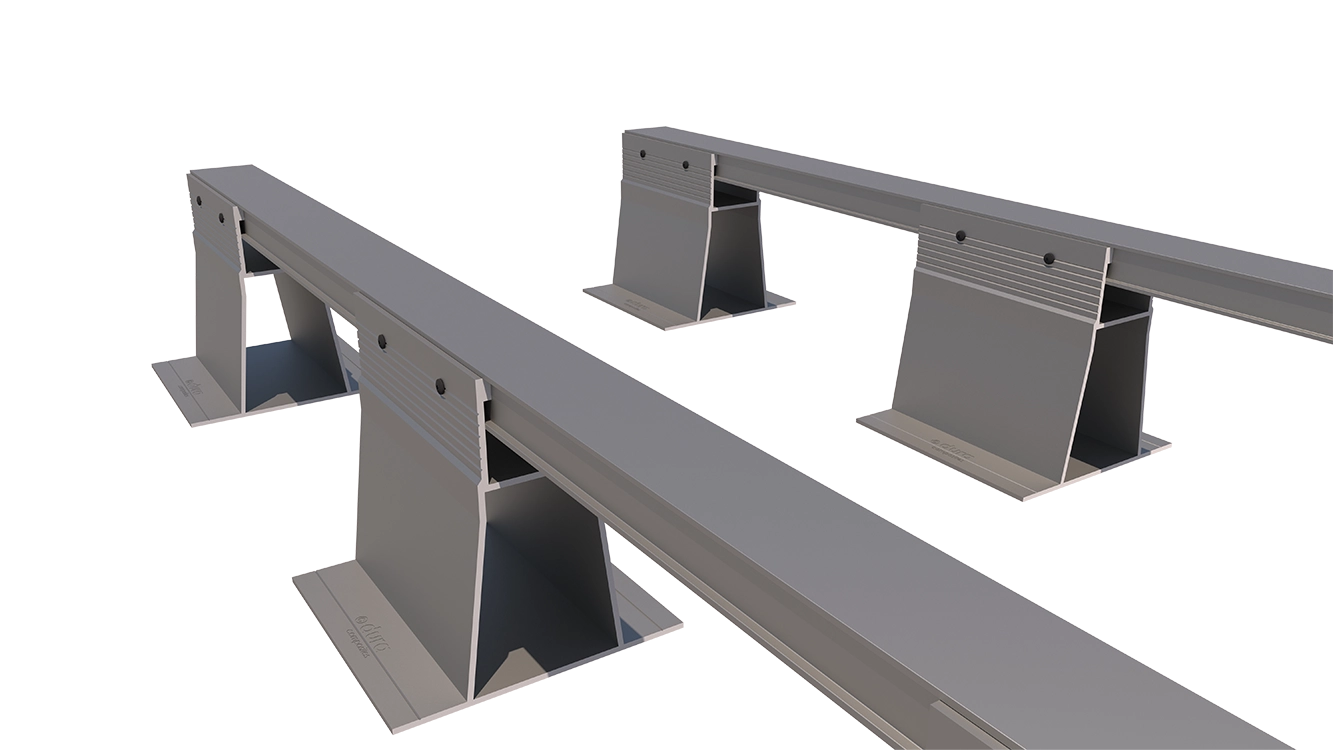

Our Dura Pedestals (Patent No. GB 2005553.9) can be easily combined with Dura Bearers to…
DownloadDatasheets

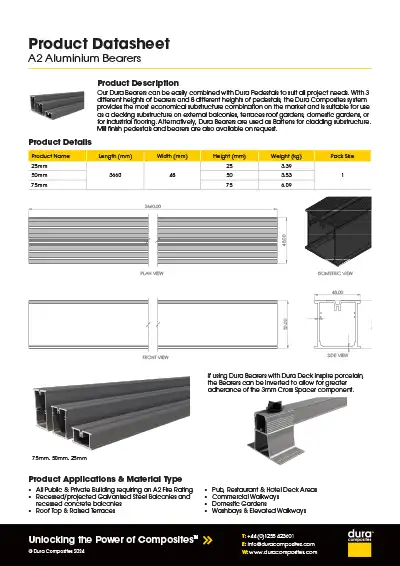

Our Dura Bearers can be easily combined with Dura Pedestals to suit all project needs.…
DownloadDatasheets

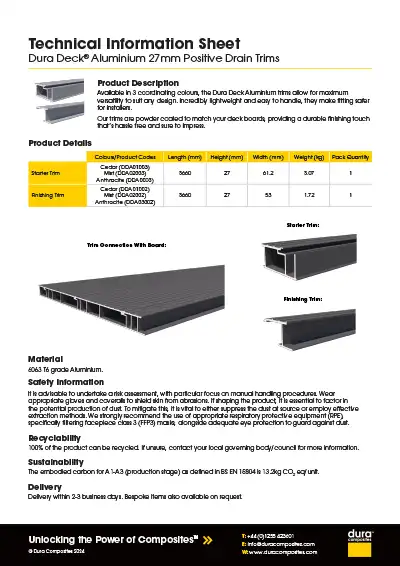

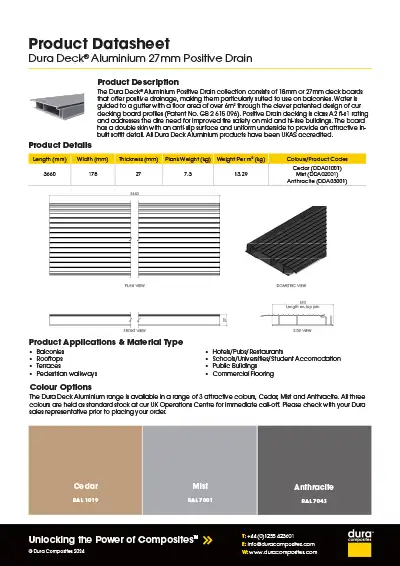

The Dura Deck Aluminium 27mm Positive Drain deck boards offer positive drainage, making them particularly…
DownloadDatasheets

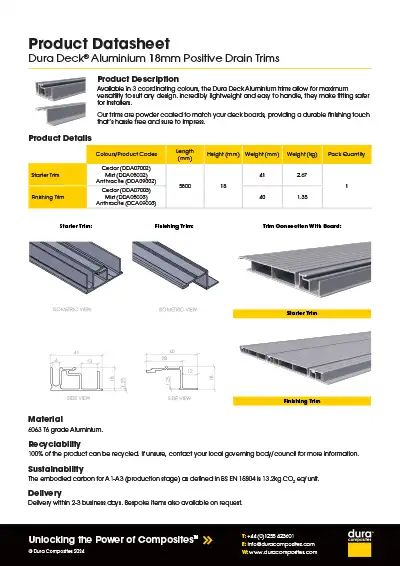

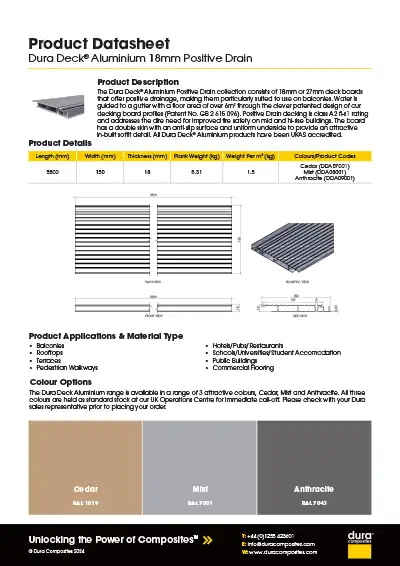

The Dura Deck Aluminium 18mm Positive Drain deck boards offer positive drainage, making them particularly…
DownloadDatasheets
Available in 3 coordinating colours, the Dura Deck Aluminium trims allow for maximum versatility to…
DownloadDatasheets
Available in 3 coordinating colours, the Dura Deck Aluminium trims allow for maximum versatility to…
DownloadInstallation Manuals
The substructure or subframe forms the skeleton of your deck. Your bearers will run in…
DownloadInstallation Manuals

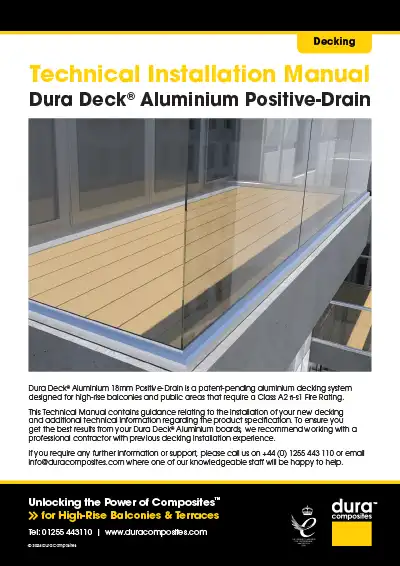

Dura Deck Aluminium Positive-Drain is a patent-pending aluminium decking system designed for high-rise balconies and…
