A2 Fire-Rated
Fire tested to BS EN 13501-1 A2-s1,d0.
d² Dura Quickspan® Aluminium Decking
The Lowest Carbon Non-Combustible Balcony Decking in the World with Hidden Fixing & Drainage Channel
Spans up to 1625mm*
Fewer supports, faster install, lower substructure costs. 8% stronger than any other product on the market. *Based on 27mm tested to 5mm deflection at 5kN/m2 UDL
Made In Britain
d² designed, British-made, low-carbon, patented system.

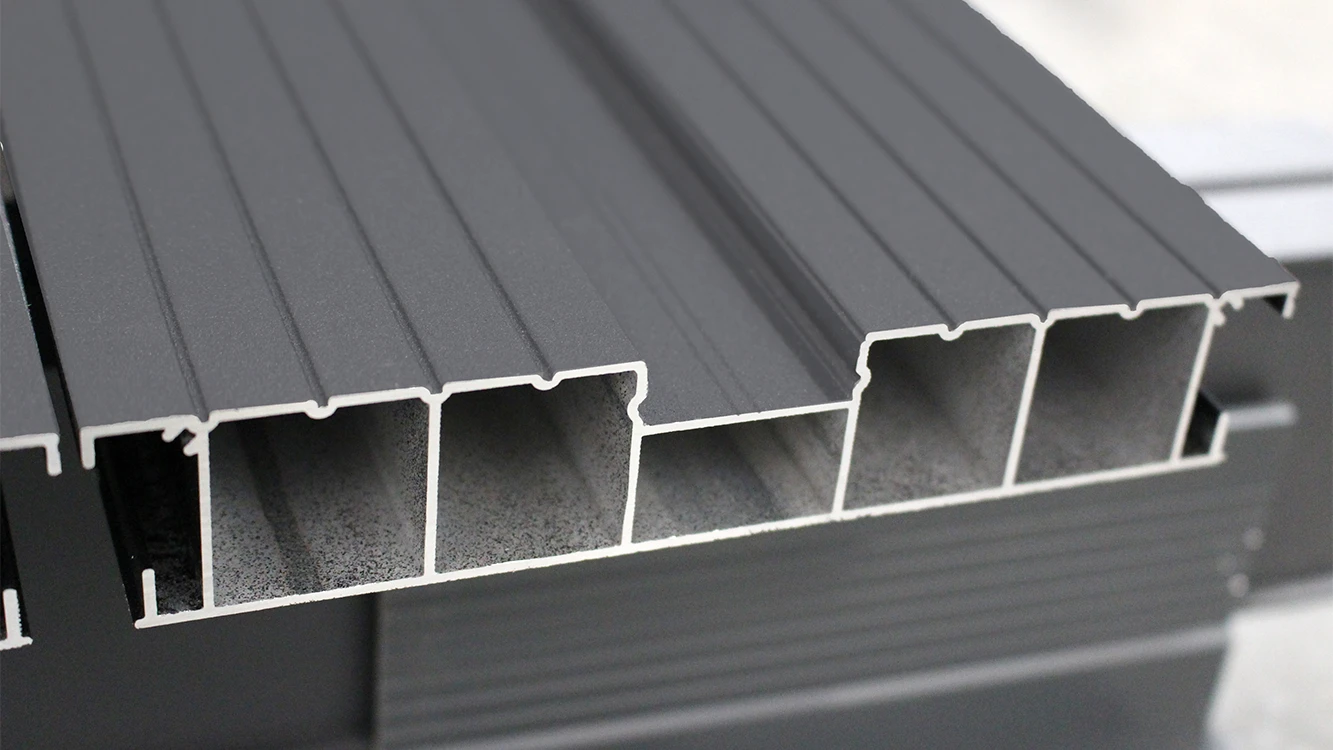

d² Quickspan® is the lowest carbon non-combustible A2 fire-rated aluminium decking system for balconies, terraces, and walkways tested to BS EN 13501-1 A2-s1,d0.

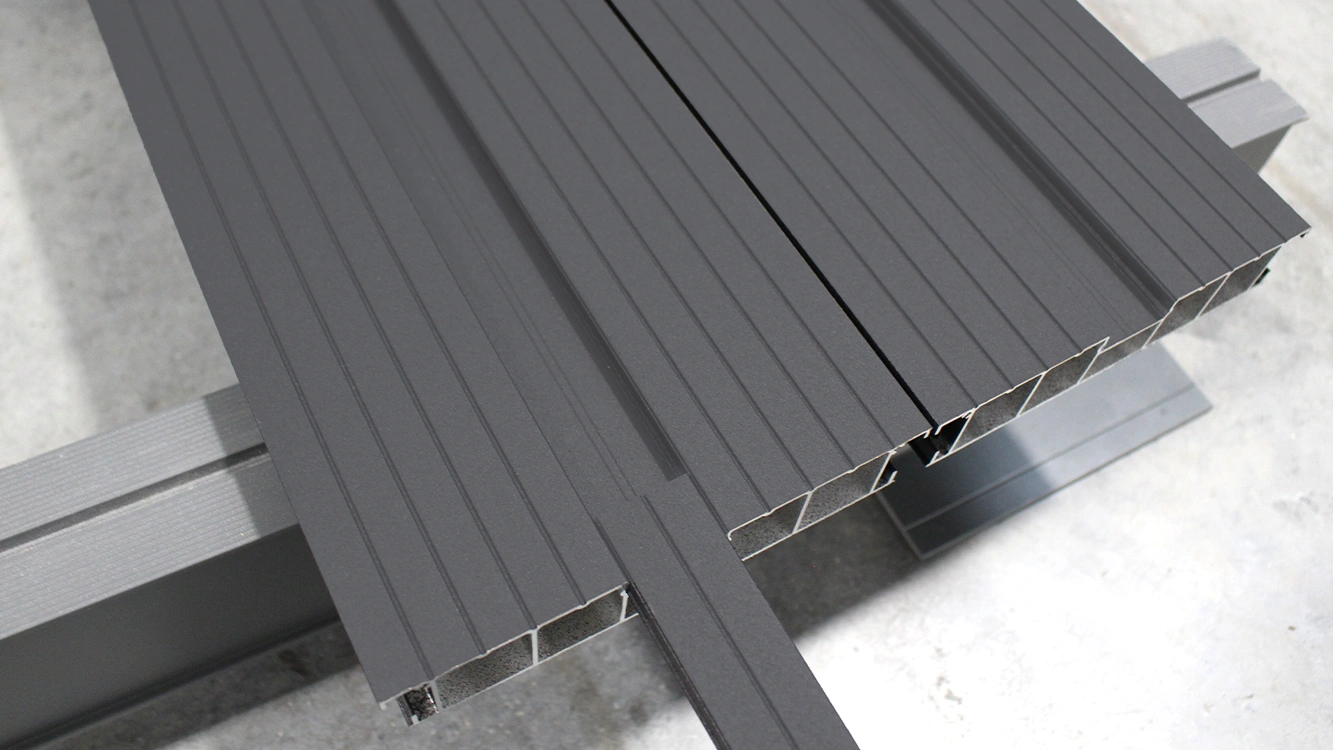

Its centre-fix design uses a hidden fixing channel to fasten planks directly to the substructure, creating a clean surface that minimises trip and slip risks. Because fixings are secured in the central channel there are no fiddly clips, which saves handling time and labour. Final planks can be fitted after the balcony is craned into place, making the system ideal for prefabrication and rapid installation.
- The dual-skin profile delivers exceptional span strength of up to 1300 mm (18mm) and 1900mm (27mm). This means fewer supports, faster installation, and lower substrate costs, all while using significantly less material to reduce weight, cost, and embodied carbon.
- Full system flexibility, the plank can also operate in Free-Drain or Positive-Drain mode (The additional drainage gutter is added in between each plank, water is captured and diverted to the outlets at the plank ends).
- Backed by a 30-year warranty, 60-year structural life expectancy.
- Fully compliant with Approved Document B, tested to BS EN 13501-1 A2-s1,d0 meeting fire safety requirements for external balconies above 11m, and supporting Gateway 2 & 3 approvals with full evidence pack: fire tests, span/load data, slip resistance, Environmental Product Declaration — ready for submission.
- The sustainable choice — verified by our EPD’s as the lowest carbon balcony decking in the world based on publicly available comparative data, d² Quickspan is built for long-term, low-carbon performance.
- Made from 68% recycled aluminium, manufactured in the UK, and uses 24% less material than comparable systems; reducing weight and embodied carbon for your project.
- 100% recyclable at end of life, supporting circular construction and meeting ESG and net-zero goals with full carbon transparency.

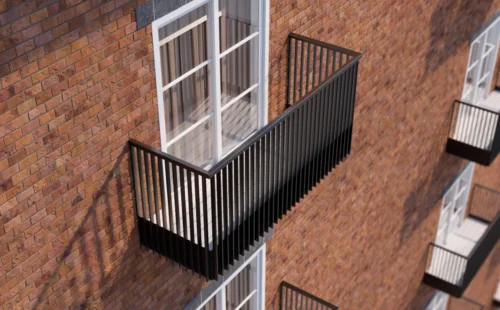

The Lowest-Carbon Balcony Decking in the World
The Lowest-Carbon Balcony Decking in the World
d² Quickspan is verified by our Environmental Product Declaration (EPD) as the lowest carbon balcony decking in the industry, based on publicly available comparative data.
Manufactured in the UK from 68% recycled aluminium, Quickspan significantly lowers embodied carbon by reducing the demand for virgin materials and minimising transport emissions.
At the end of its service life, the aluminium decking, bearers and pedestals are 100% recyclable, ensuring that every component can be repurposed rather than sent to landfill, supporting circular construction principles and long-term sustainability goals.

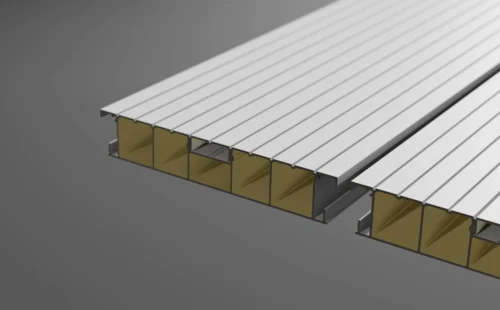

Dual-Skin Efficiency
Dual-Skin Efficiency
Unlike single-skin planks, d² Quickspan’s dual-skin construction uses 24% less material than comparable systems, achieving strength with minimal material usage. This optimised design improves structural efficiency, lowers carbon impact, and maintains long-term performance without excess weight.

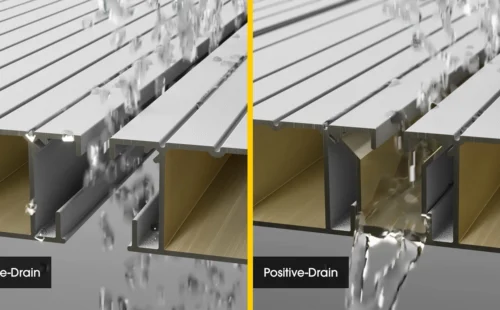

Integrated Drainage Channel
Integrated Drainage Channel
d² Quickspan’s profile features an internal drainage insert. In Positive-Drain mode, it captures surface water and diverts it to outlets at the plank ends, achieving controlled water management without separate drainage trays. In Free-Drain mode, water passes naturally between boards. Switching between modes requires no plank replacement.
Slip Resistance & Coating
Slip Resistance & Coating

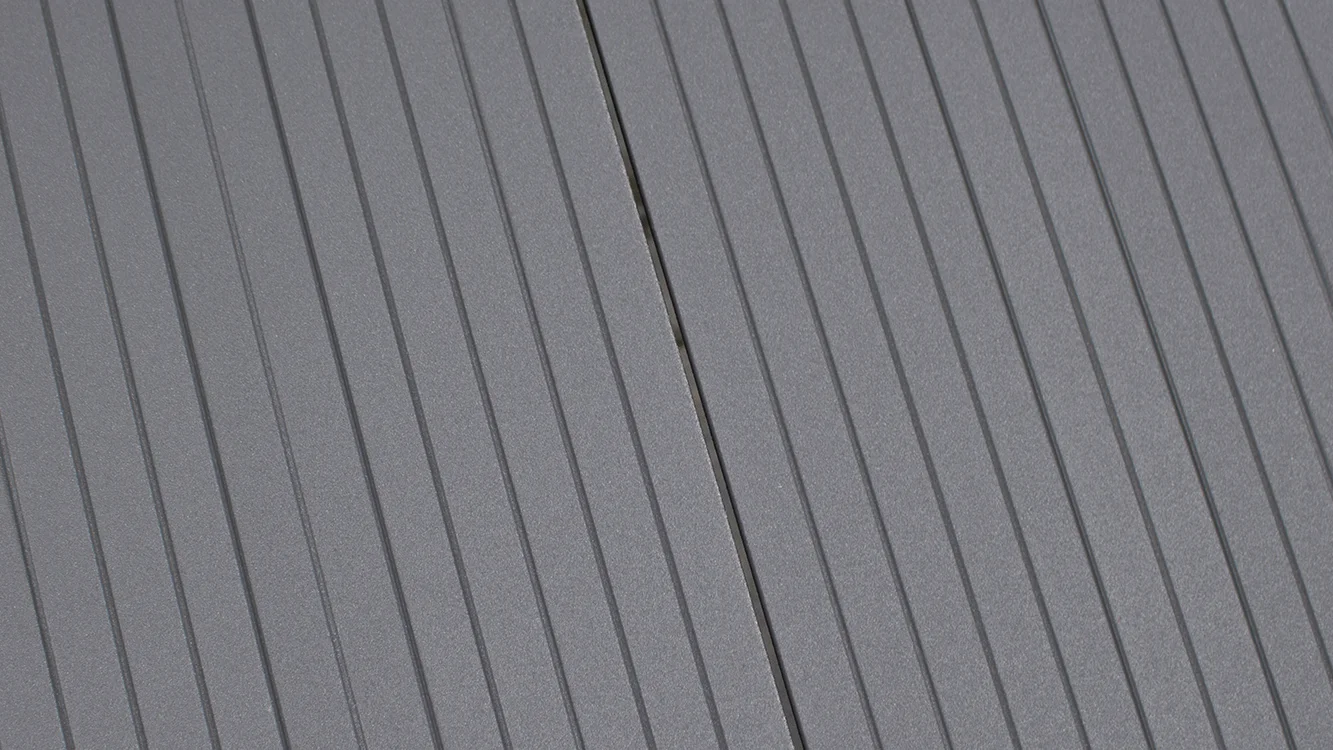

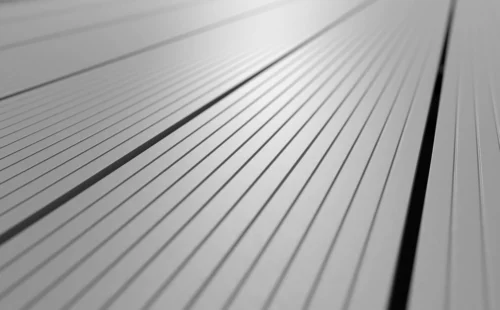

Tested to UK standards, d² Quickspan achieves low slip potential in both wet and dry conditions. Its Qualicoat powder-coating meets the full spectrum of fire and slip resistance tests, ensuring the system remains compliant, safe, and durable.

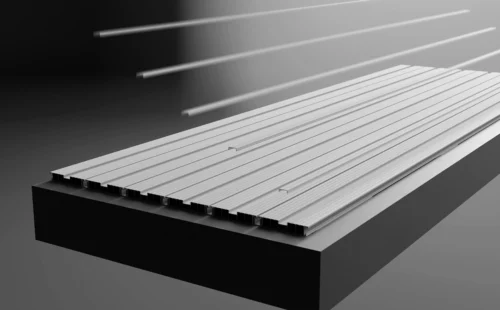

Durability & Assurance
Durability & Assurance
Backed by a 30-year warranty and designed with a 60-year structural life expectancy, d² Quickspan offers long-term value, reduced maintenance cycles, and lasting peace of mind.
Product Details
| Aluminium Decking Type | Length | Width | Thickness | Plank Weight | Embodied Carbon Per Plank | Aluminium Grade | Colours/Product Codes | Data Booklet |
|---|---|---|---|---|---|---|---|---|

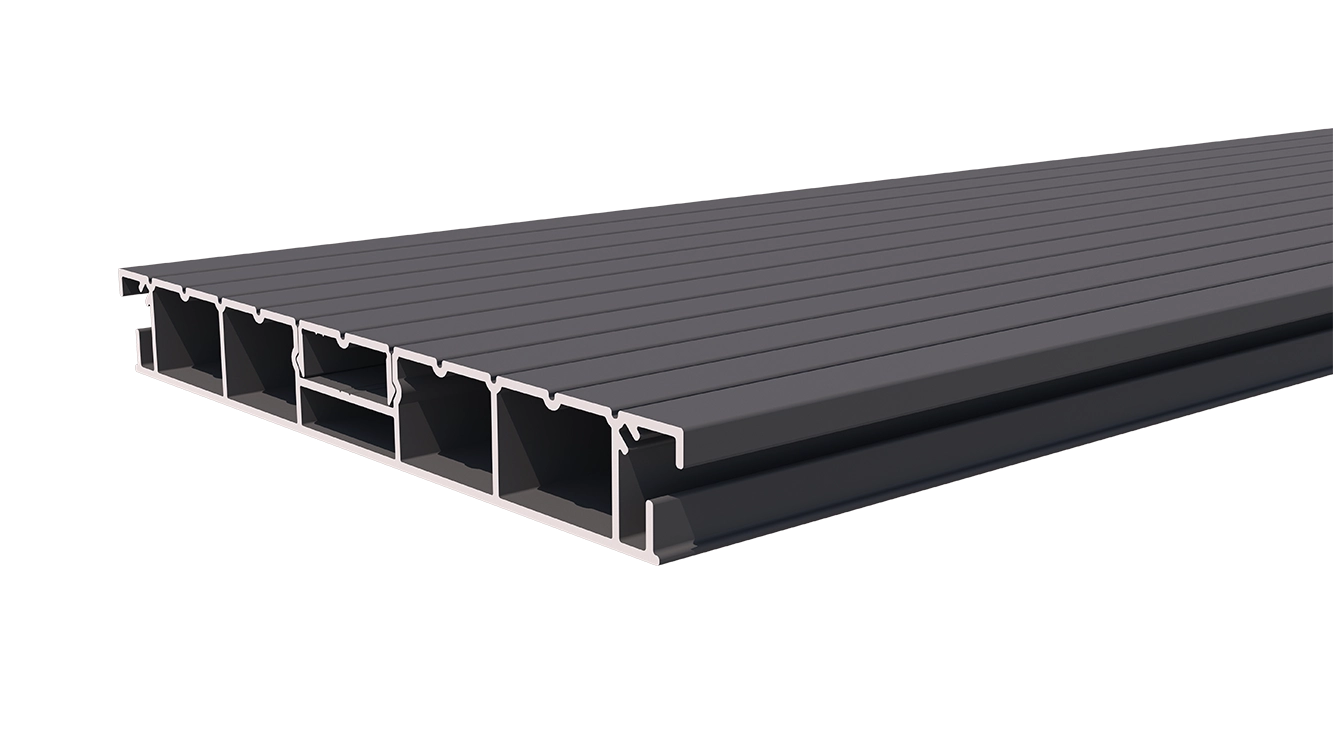

| d² Dura Quickspan® 18mm | 3660mm | 150mm | 18mm | 5.42kg | 36.3kg CO₂e | 6063 T6 | Anthracite (DDA06101) | 18mm Booklet |

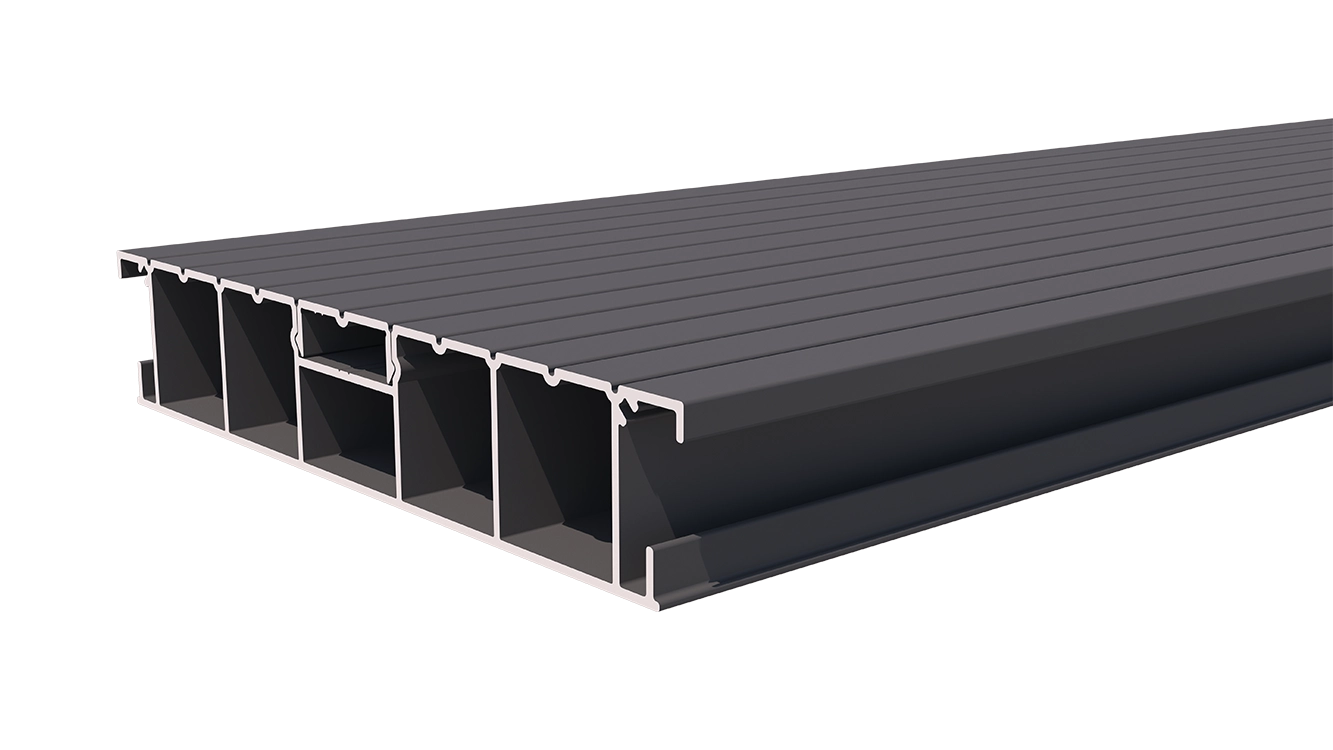

| d² Dura Quickspan® 27mm | 3660mm | 150mm | 27mm | 6.10kg | 40.9kg CO₂e | 6063 T6 | Anthracite (DDA03101) | 27mm Booklet |
Maximum Clear Span & Loading Capabilities
| Maximum Clear Span of: | 5mm deflection - 2kN Point Load | 5mm deflection - 5kN/m2 UDL | L/200 (0.5% deflection of clear span) - 2kN Point Load | L/200 (0.5% deflection of clear span) - 5kN/m2 UDL |
|---|---|---|---|---|
| d² Dura Quickspan® 18mm | 1020mm (5.0mm deflection) | 1220mm (5.0mm deflection) | 1050mm (5.25mm deflection) | 1300mm (6.5mm deflection) |
| d² Dura Quickspan® 27mm | 1450mm (5.0mm deflection) | 1625mm (5.0mm deflection) | 1800mm (9.0mm deflection) | 1900mm (9.5mm deflection) |
Need to know specifics?

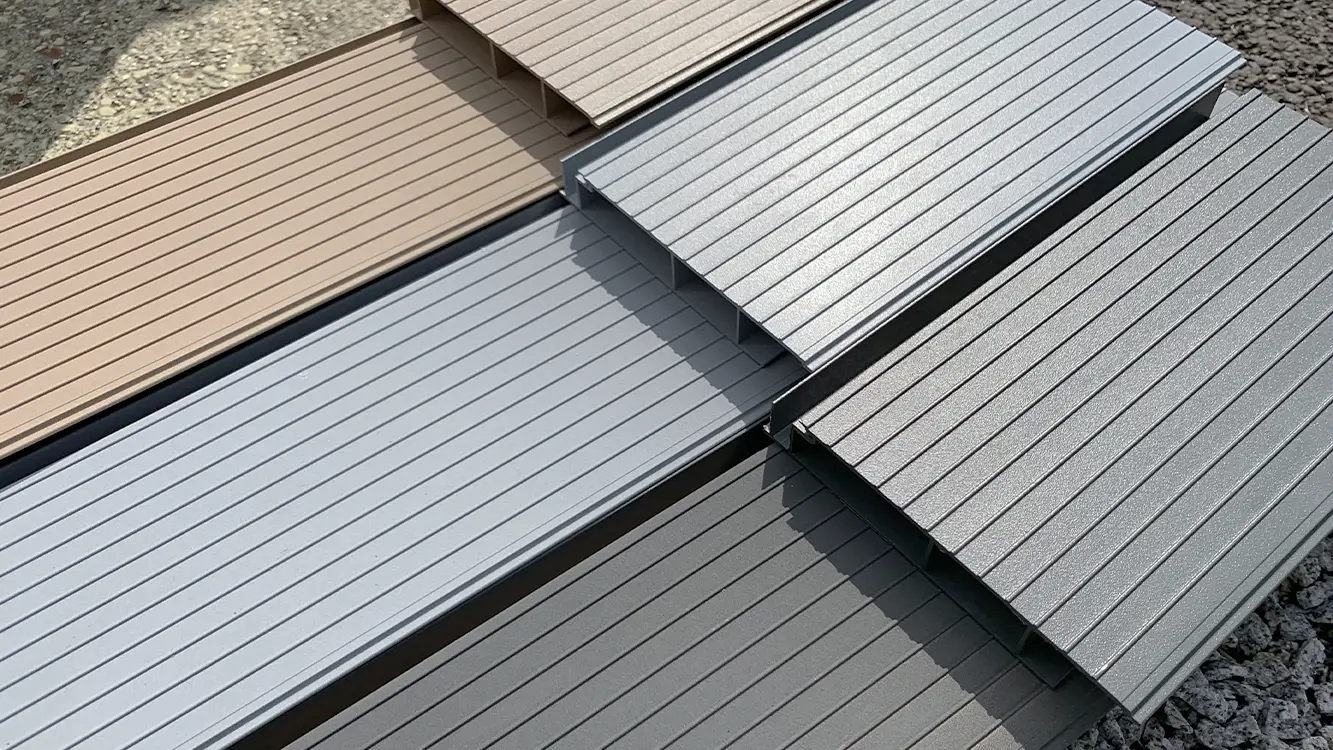

Our d² Quickspan is supplied in Anthracite as standard. To meet your project’s specific needs, it can also be manufactured in any RAL colour — simply provide your preferred code. This flexibility allows seamless integration with architectural palettes, ensures planning compliance, and maintains visual consistency across façades and interior schemes.
Anthracite
RAL 7043

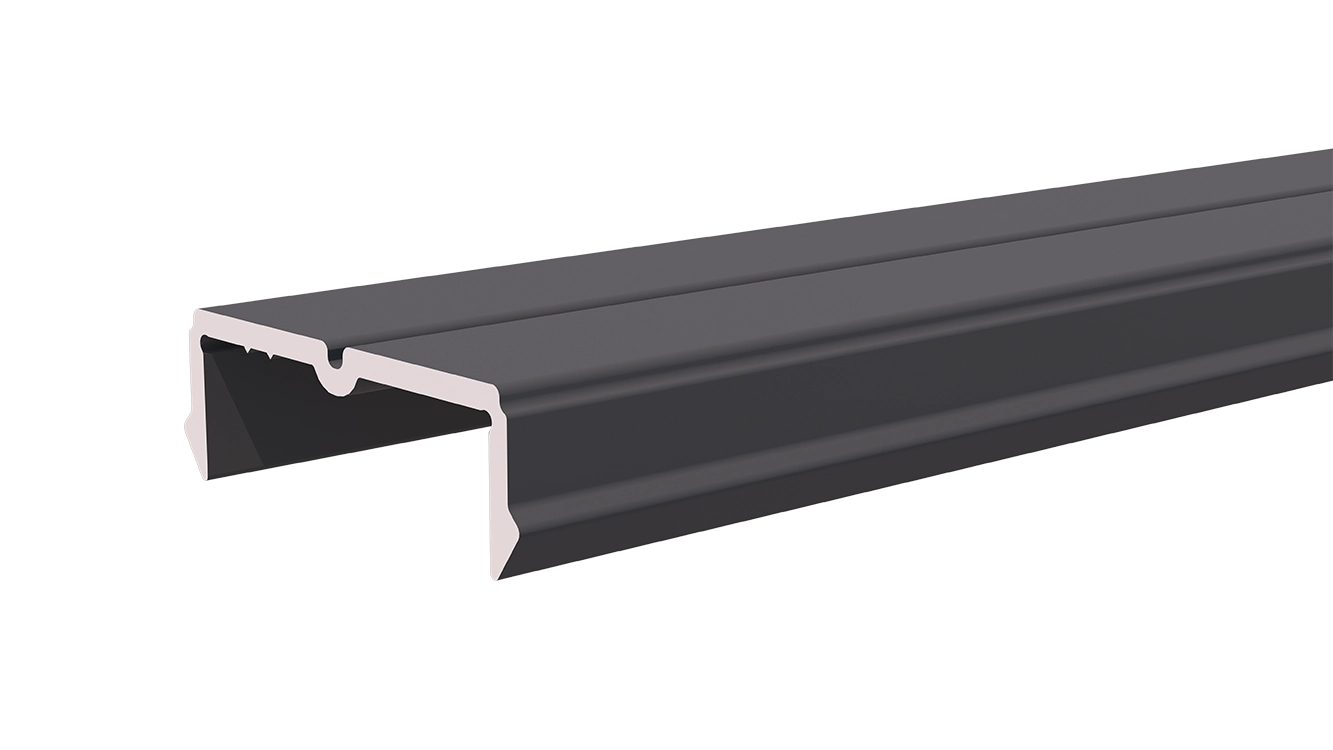

18mm & 27mm Channel Insert

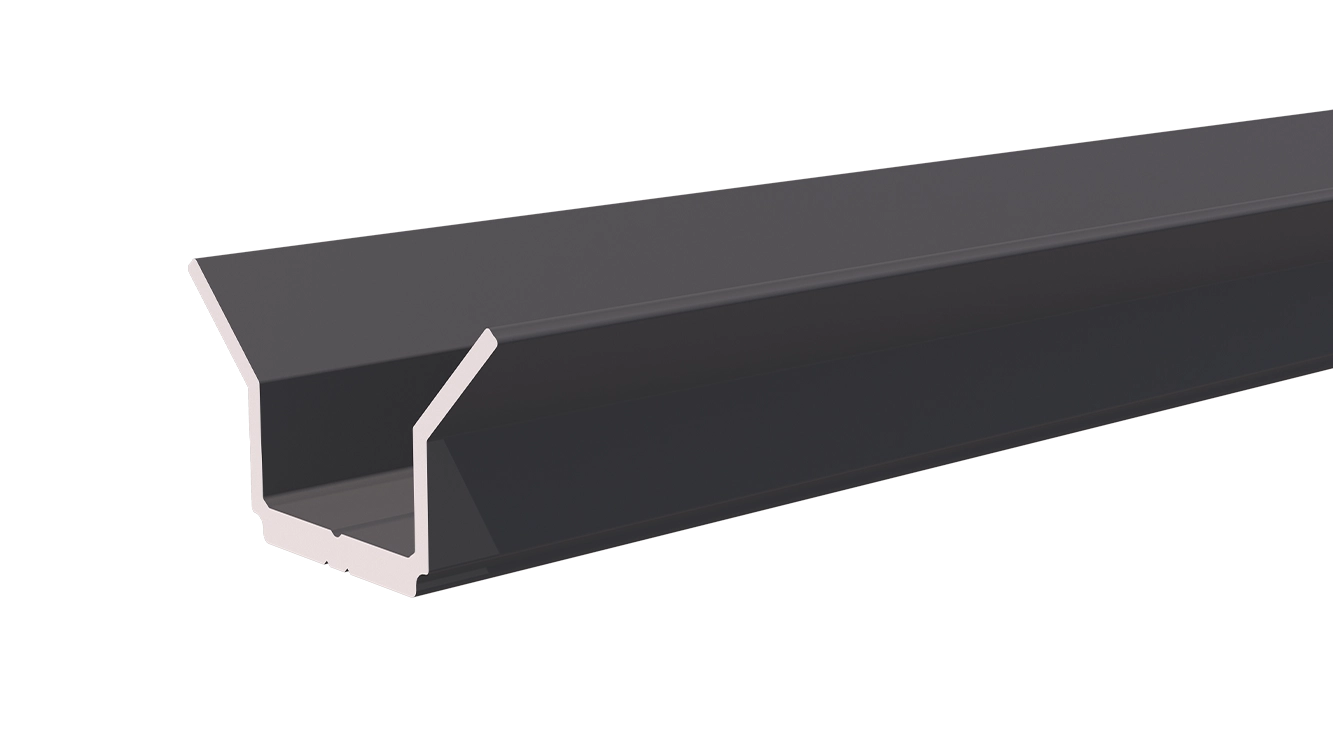

18mm Gutter Insert

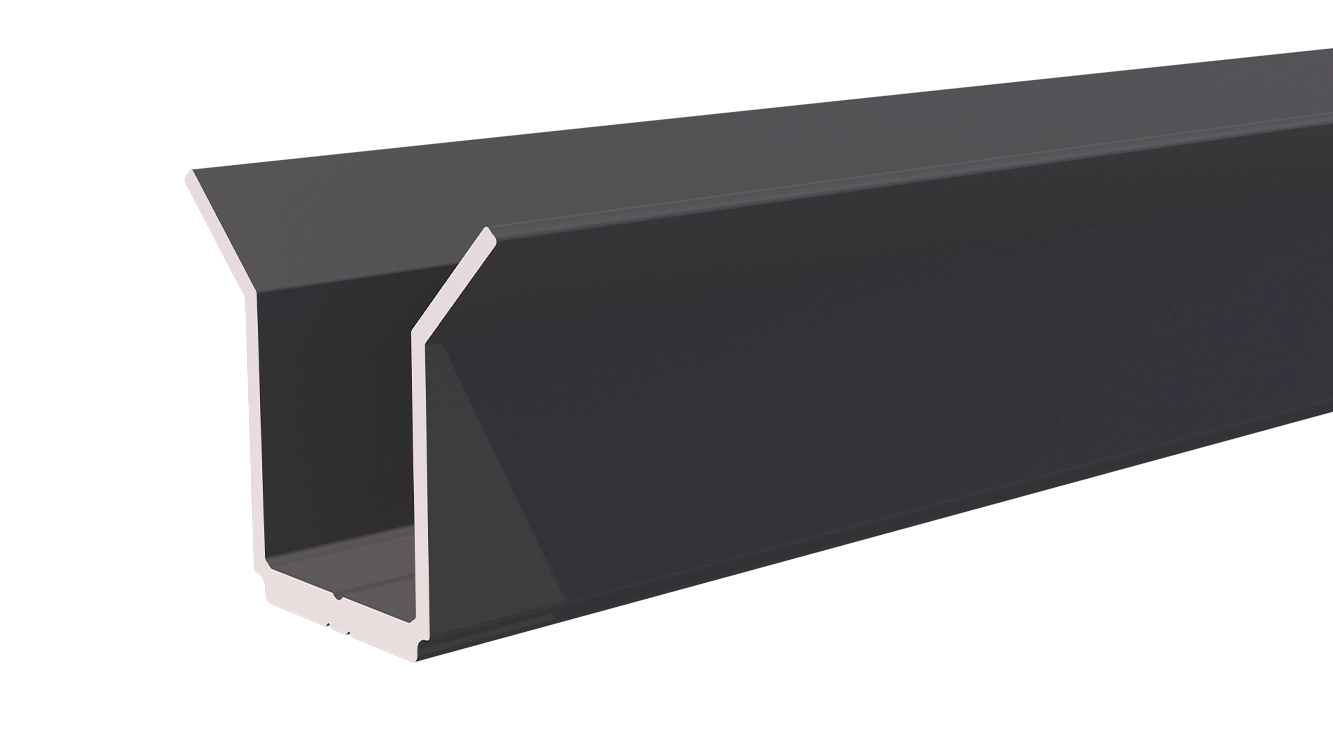

27mm Gutter Insert

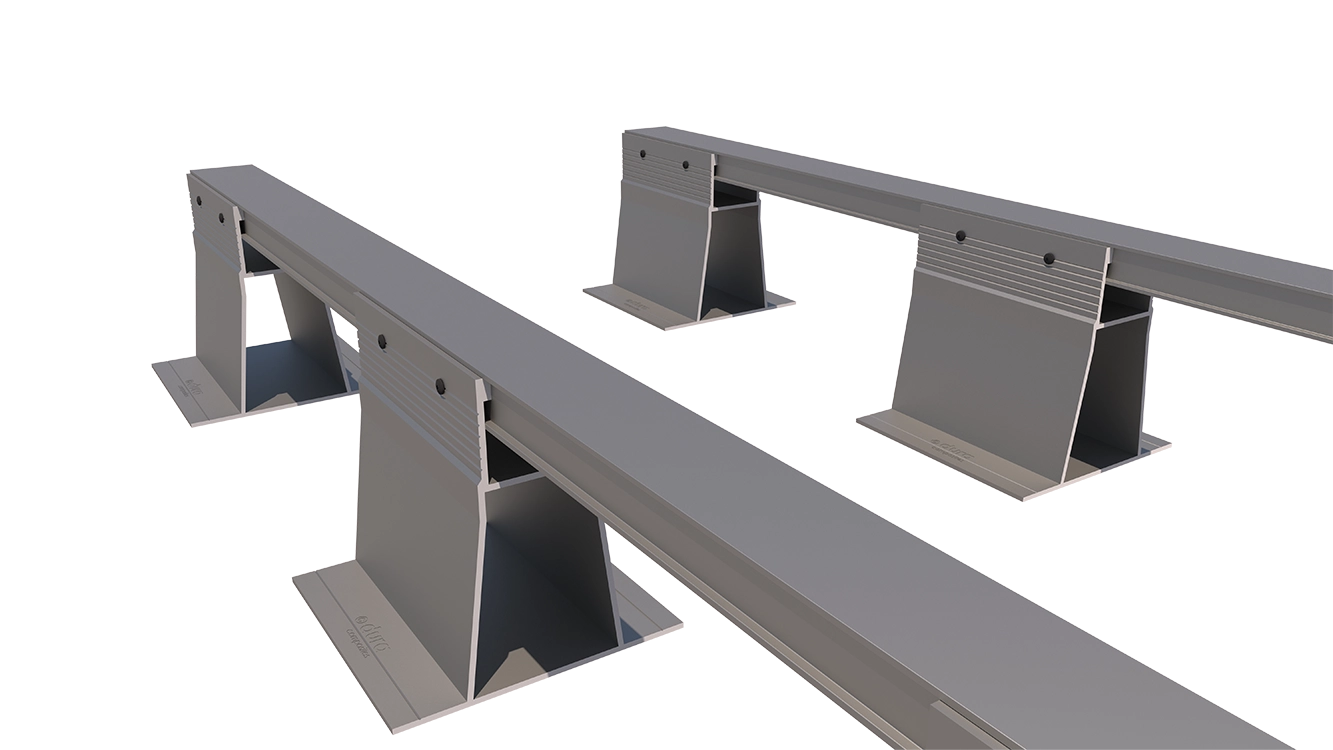

Our A2 fire-rated Dura Pedestals and Dura Bearers can be easily combined to suit all project needs, offering a superior alternative to timber subframes that can twist, rot, or warp over time. With varying heights of pedestals and bearers, our system provides the most economical substructure combination on the market. The Dura Aluminium System is suitable for use as a decking substructure on external balconies, terraces, gardens, industrial flooring and for use as cladding battens.
