Dura Aluminium Substrate

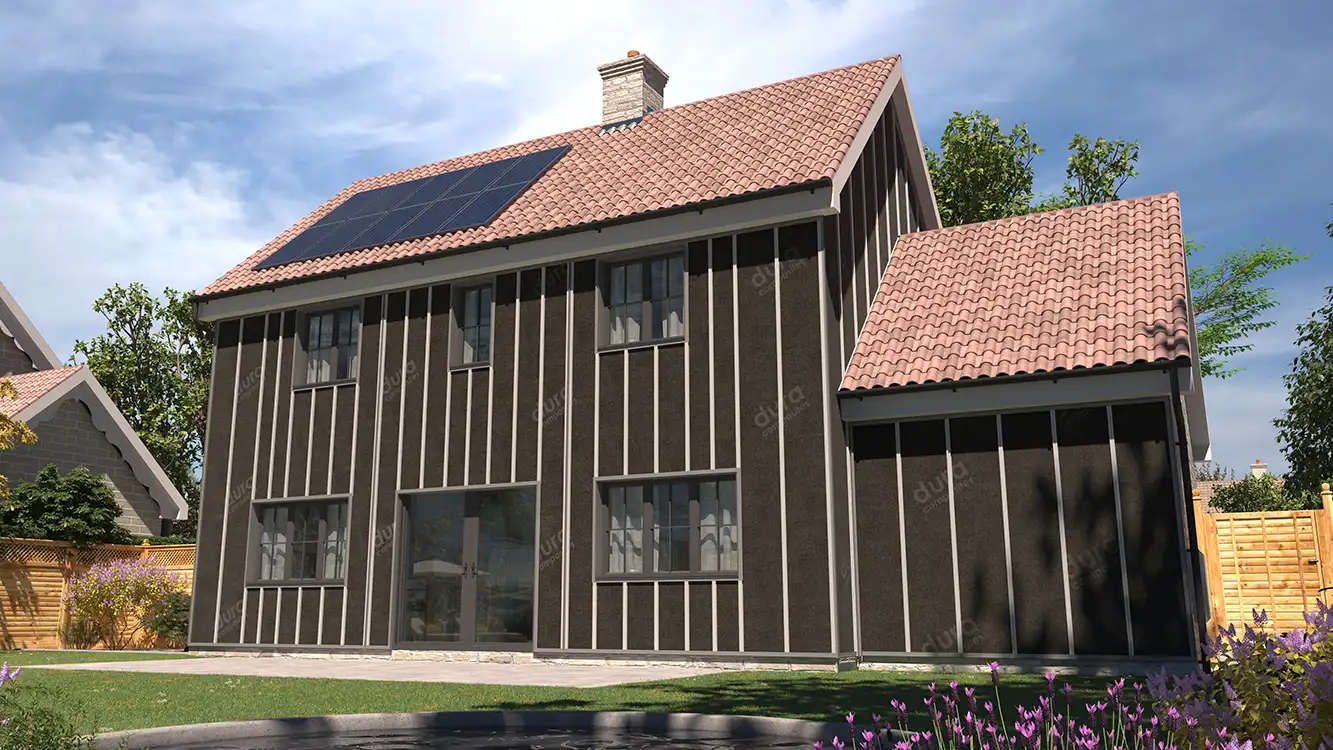

Our Aluminium Decking Sub-Structure and Support System consists of A2 fire-rated and height-adjustable support pedestals and bearers in varying heights, which can be easily combined to suit all project needs such as gardens, balconies, terraces and large commercial environments. Dura Bearers can also be used as cladding battens to increase the fire safety of your cladding project.

Dura Bearers

Dura Pedestals

d² Quickspan Beam

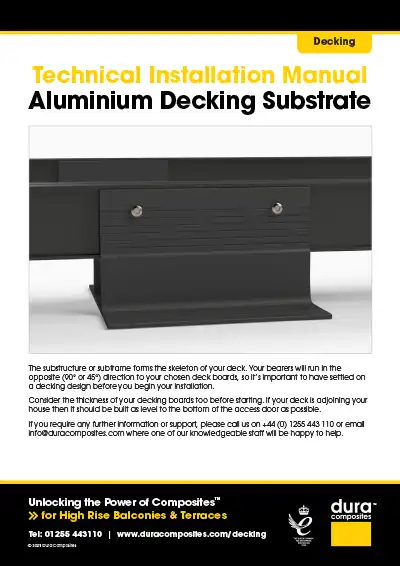

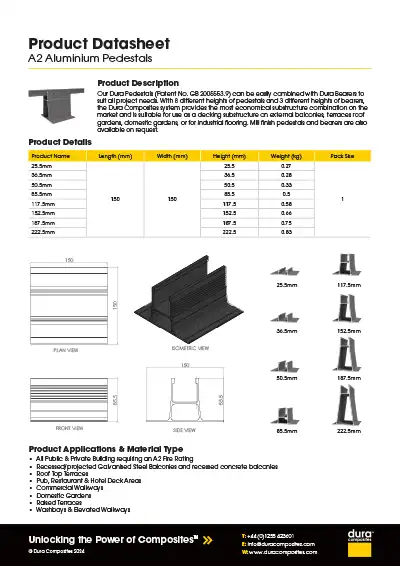

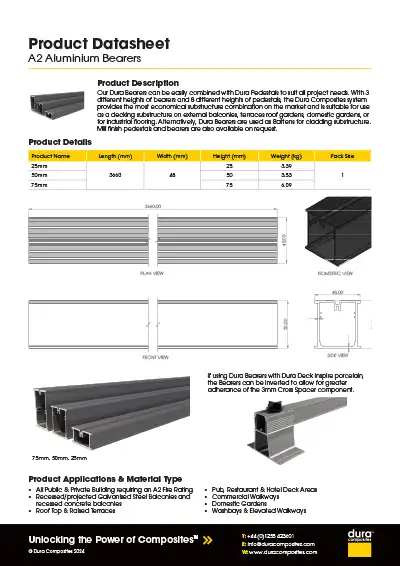

Technical Documents

NBS Source

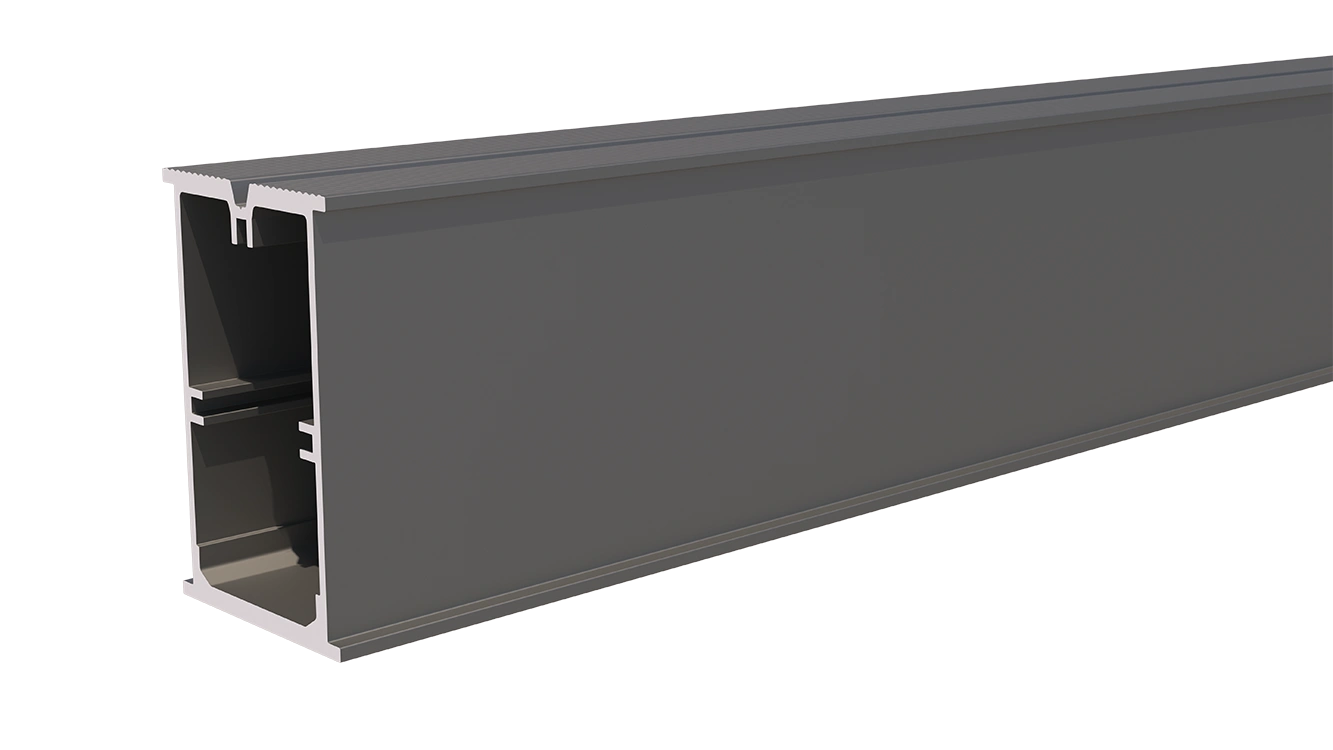

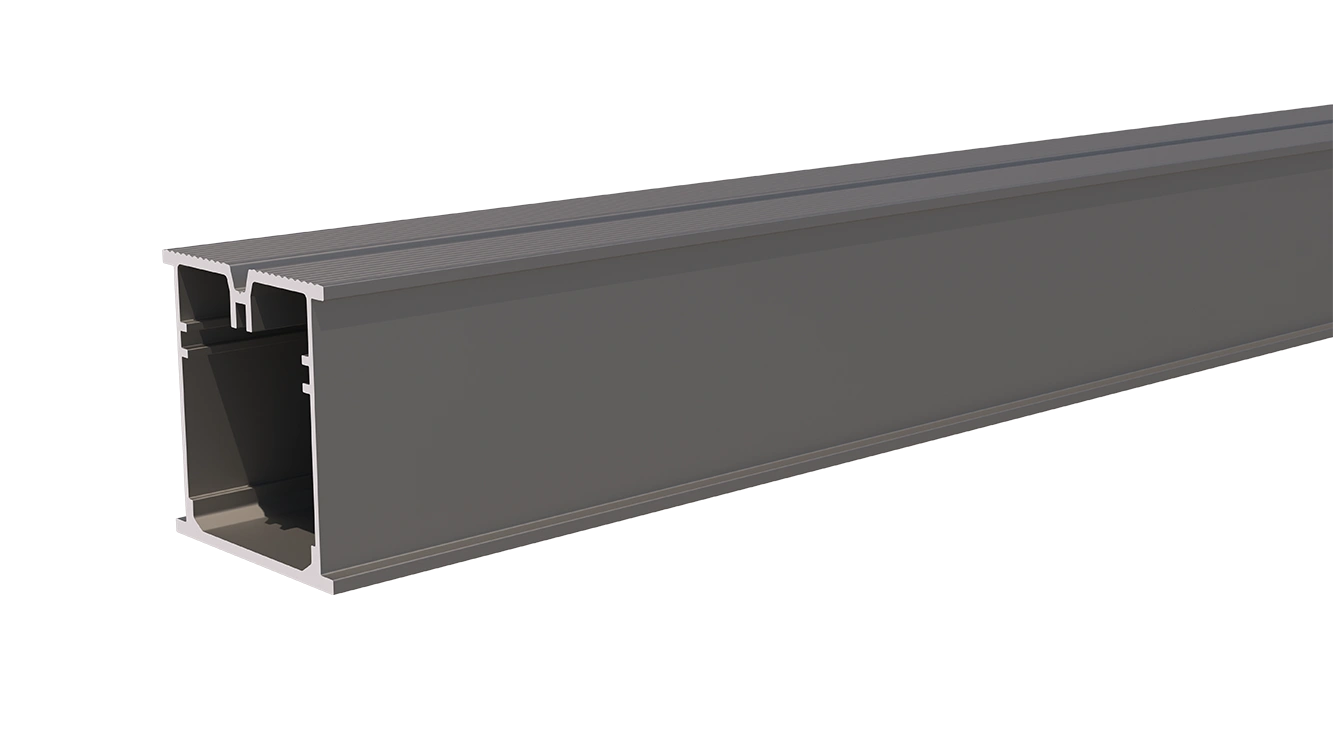

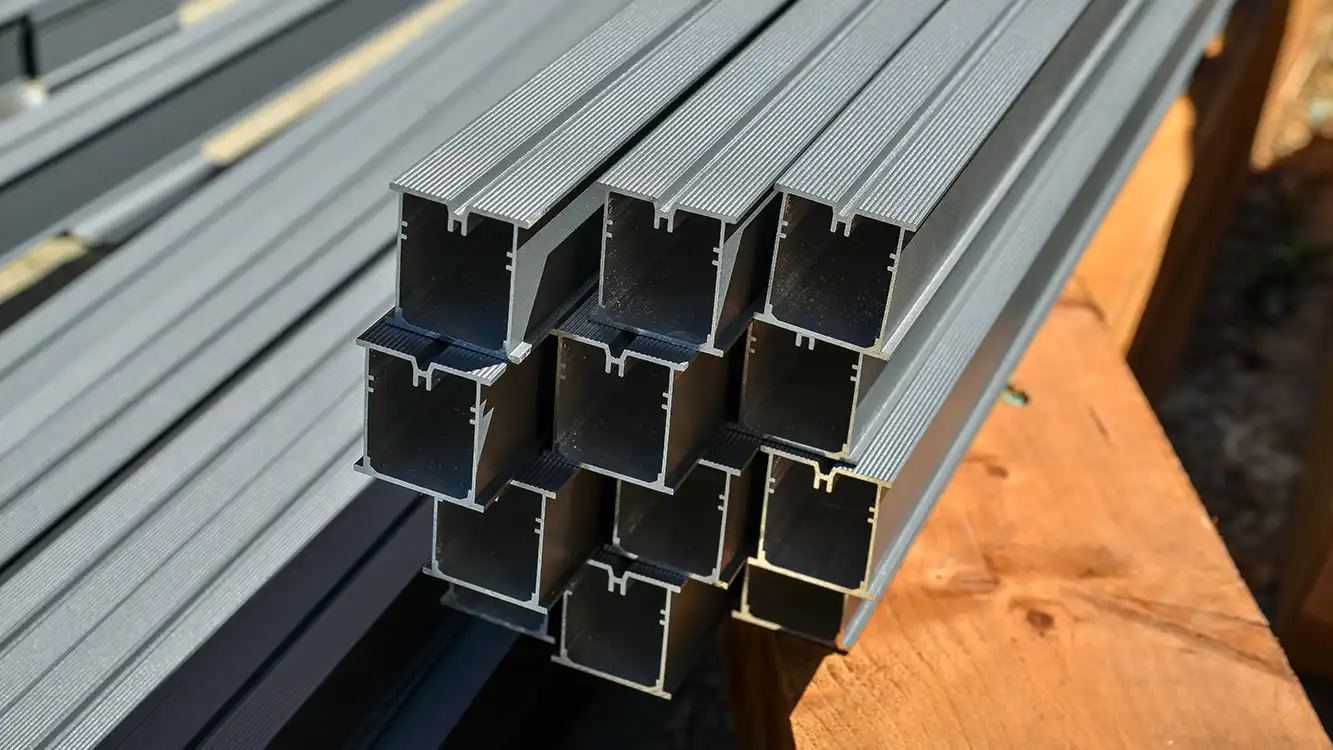

Dura Bearers (Battens)

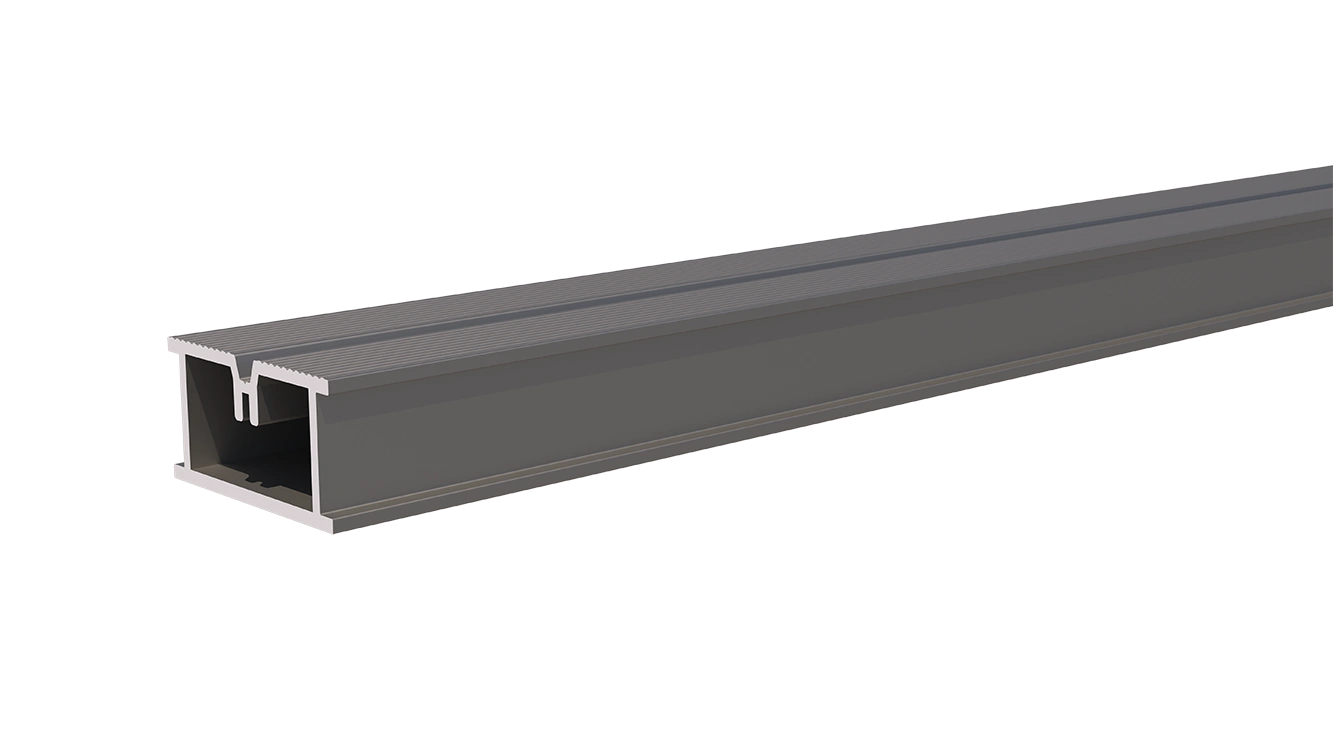

Aluminium Dura Bearers offer a simple and long-life decking substructure solution for gardens, balconies and large commercial projects. Unlike timber subframes, which can twist, rot or warp over time, Dura Bearers are made from 6063 grade aluminium (T6) and have a greater strength-to-size ratio than traditional materials.

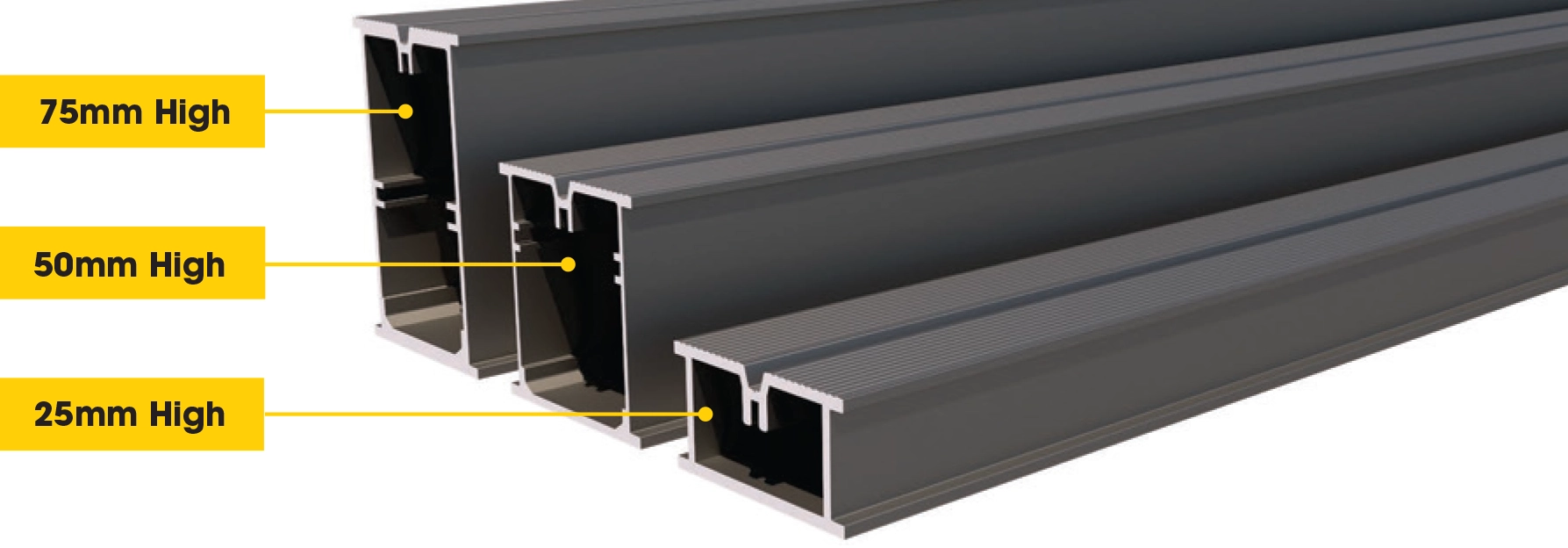

Available in three sizes (25mm, 50mm and 75mm), at lengths of 3660mm, Dura Bearers can be installed directly onto hard surfaces, such as concrete or paving, as well as onto soft surfaces such as soil, sand or grass, (provided the area has been compacted and bricks, pavers or concrete slabs are placed beneath the bearers at suitable intervals).

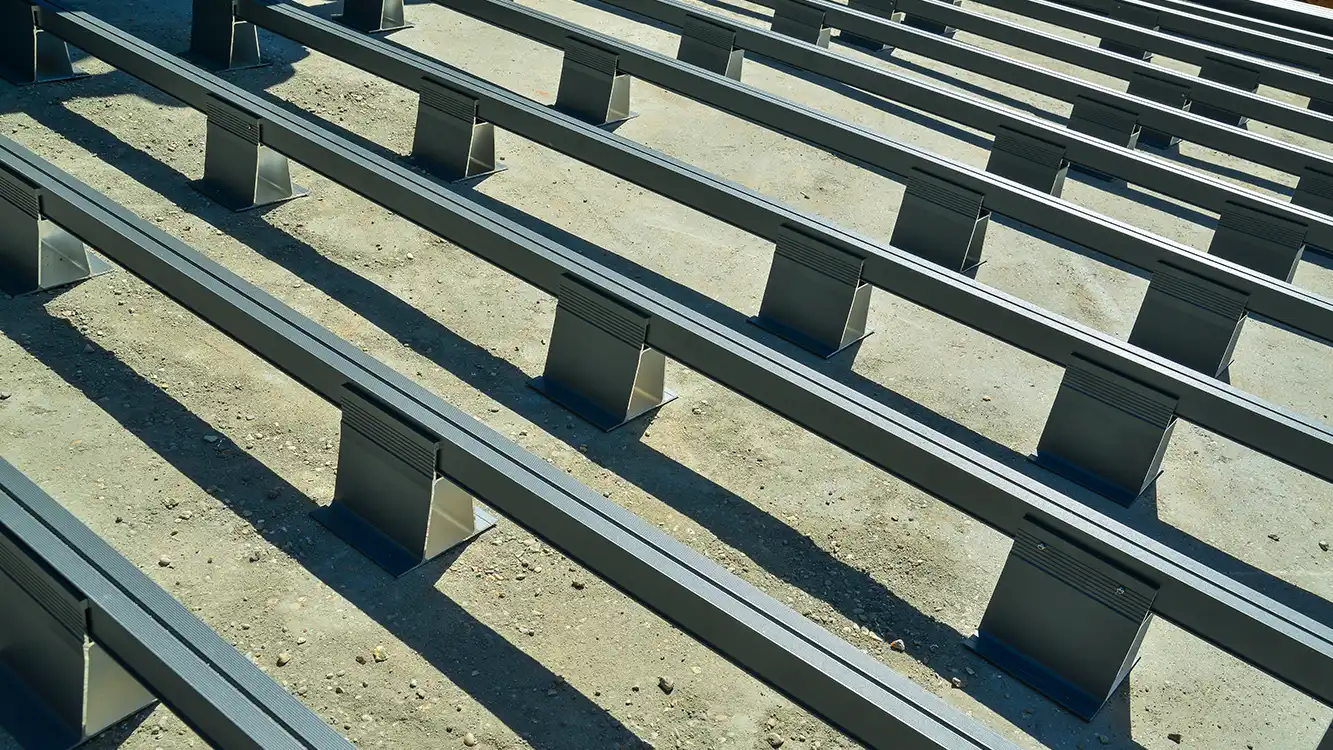

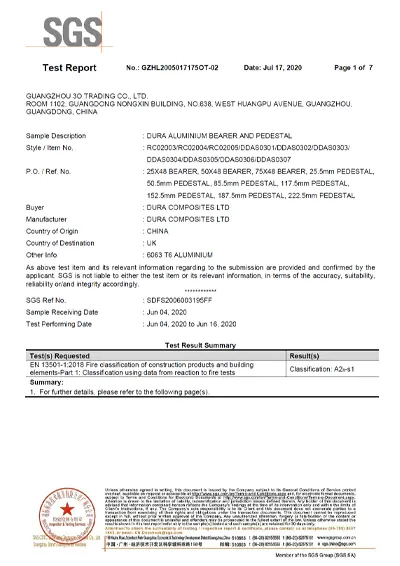

When combined with our Dura Pedestal range as a complete A2 fire rated system, they can be used on sloping or uneven ground with gradients of up to 10° Degrees – which is equivalent to an amazing 1:6 fall!

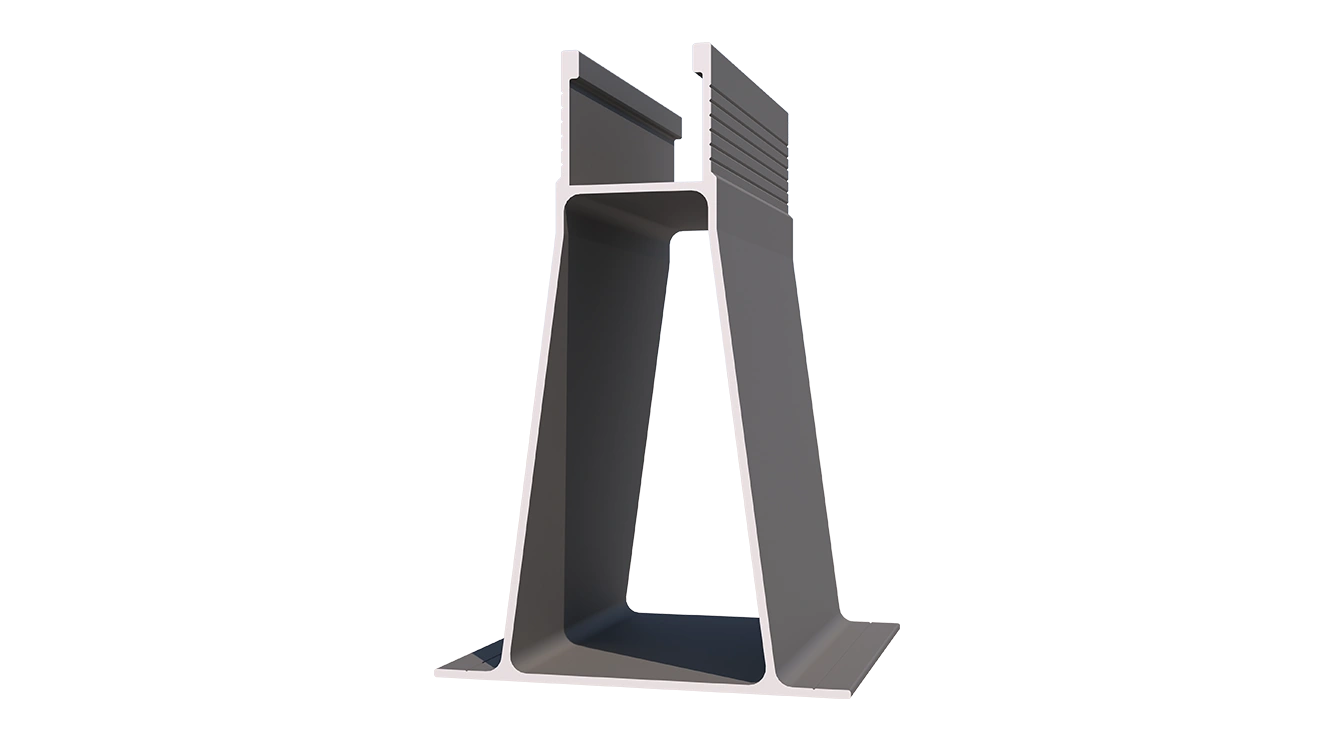

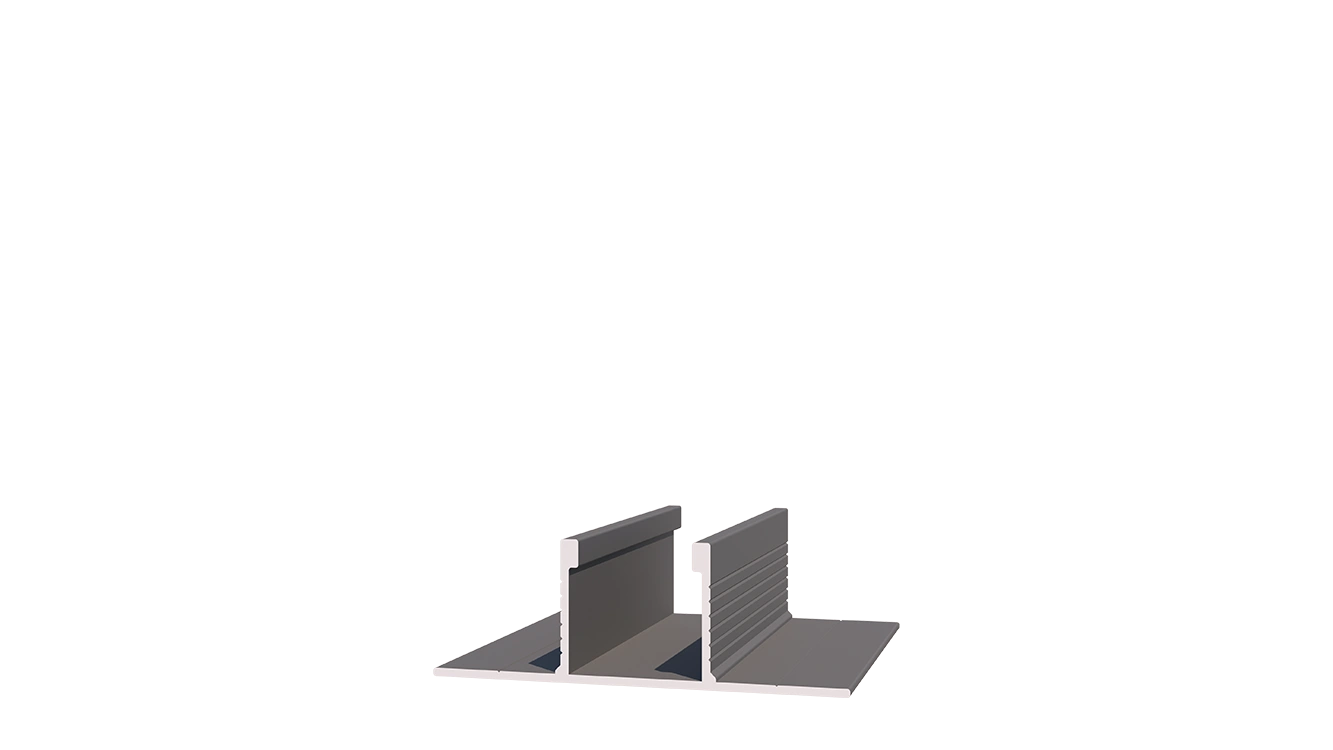

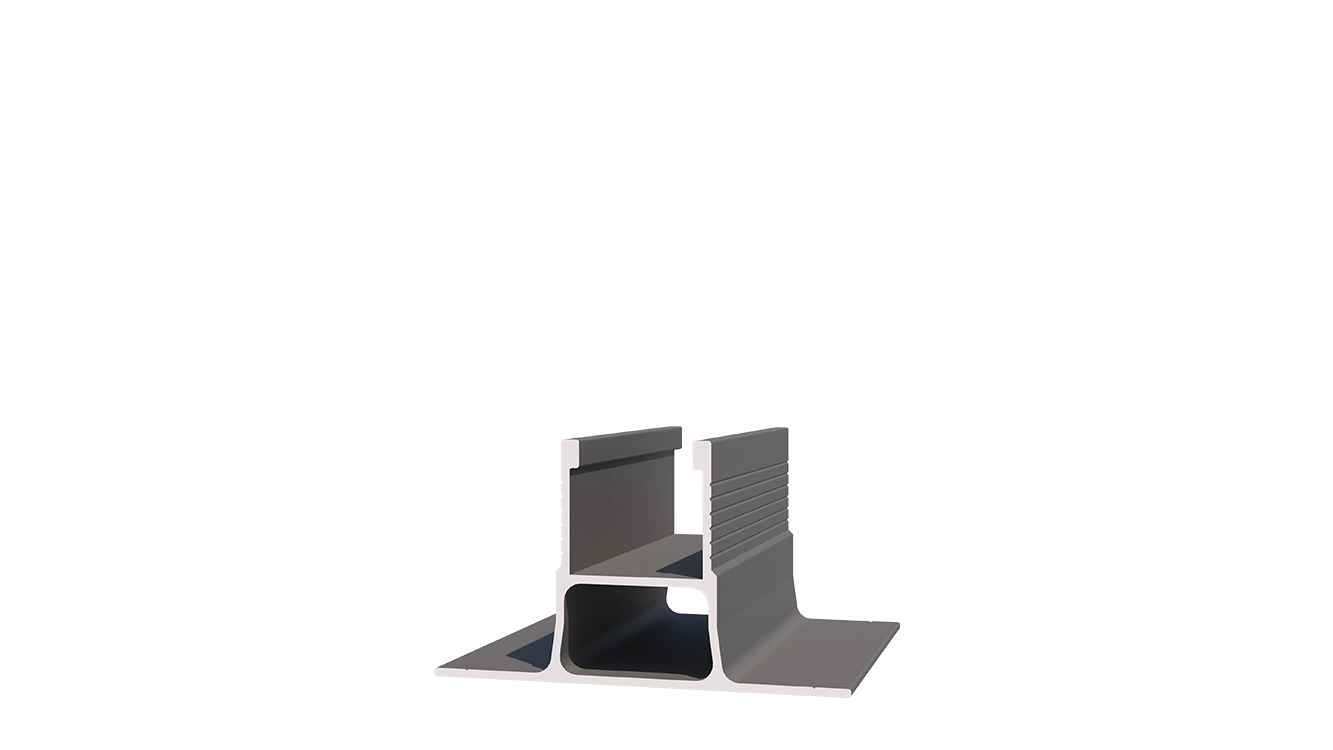

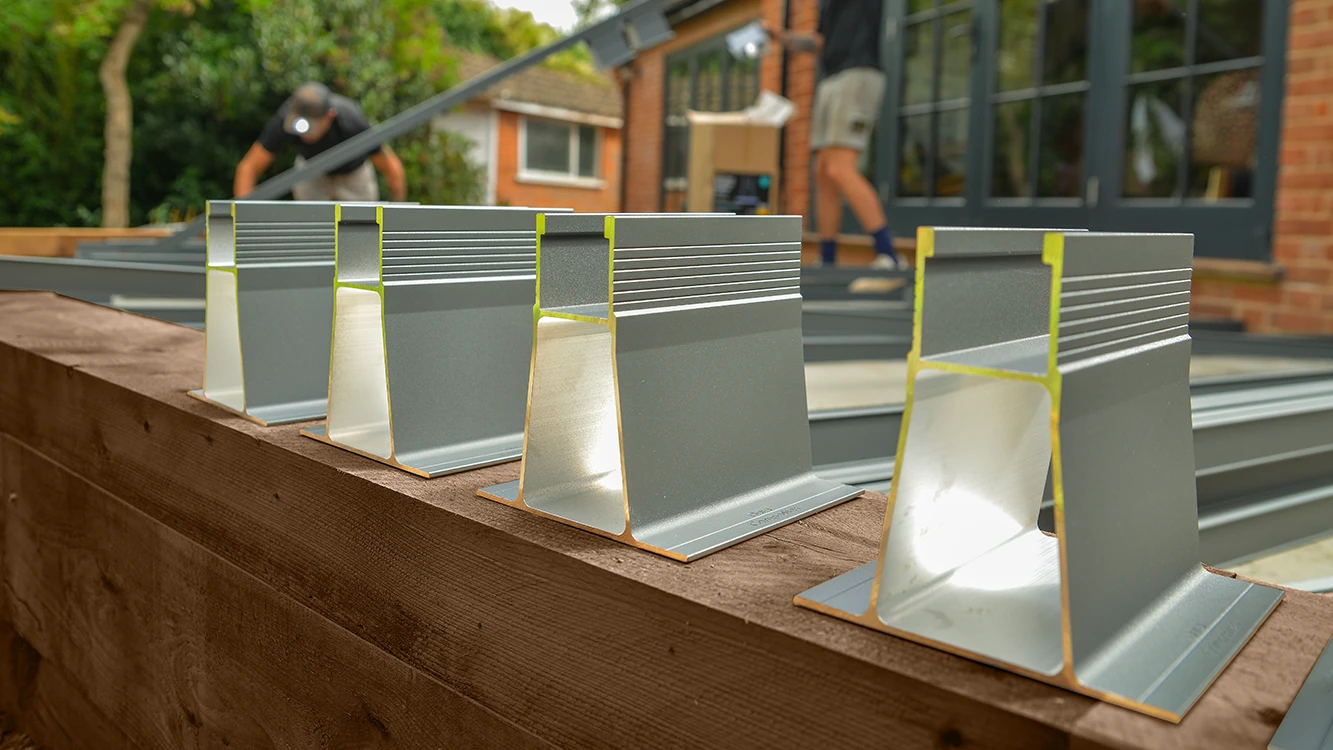

Dura Pedestals

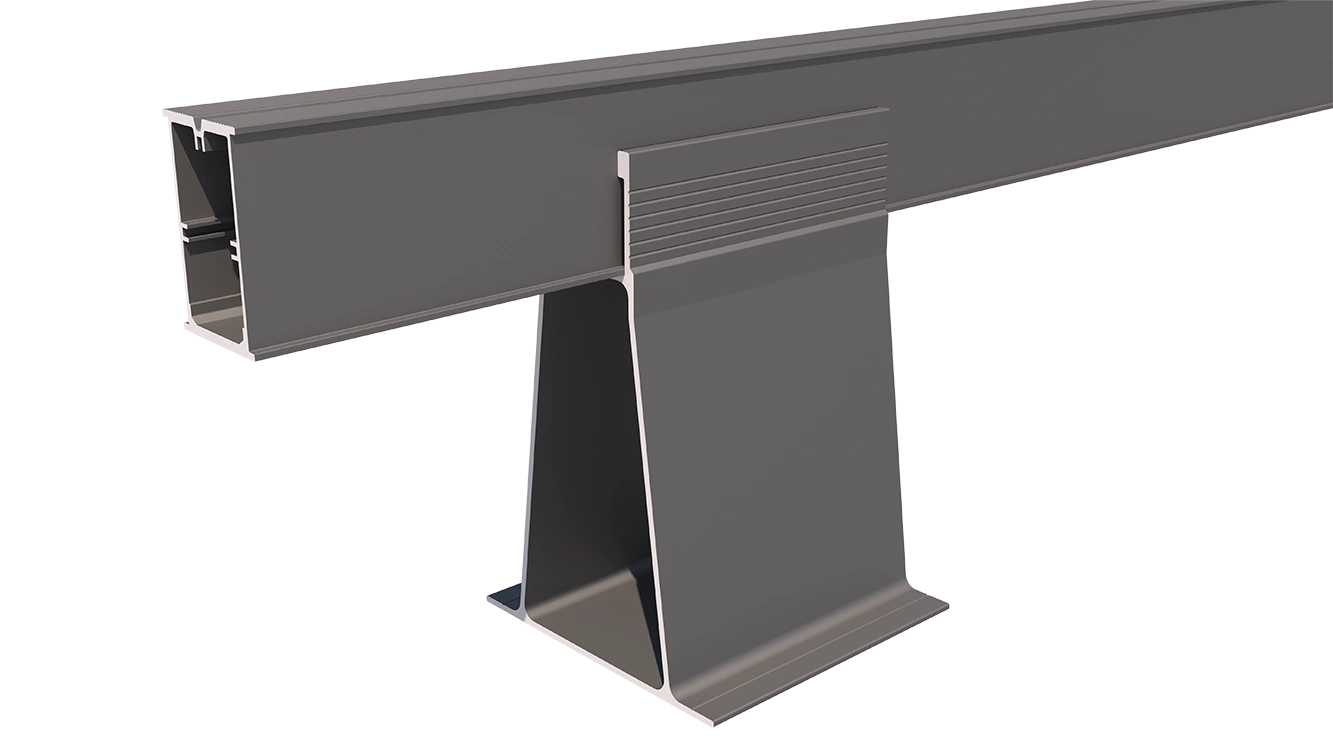

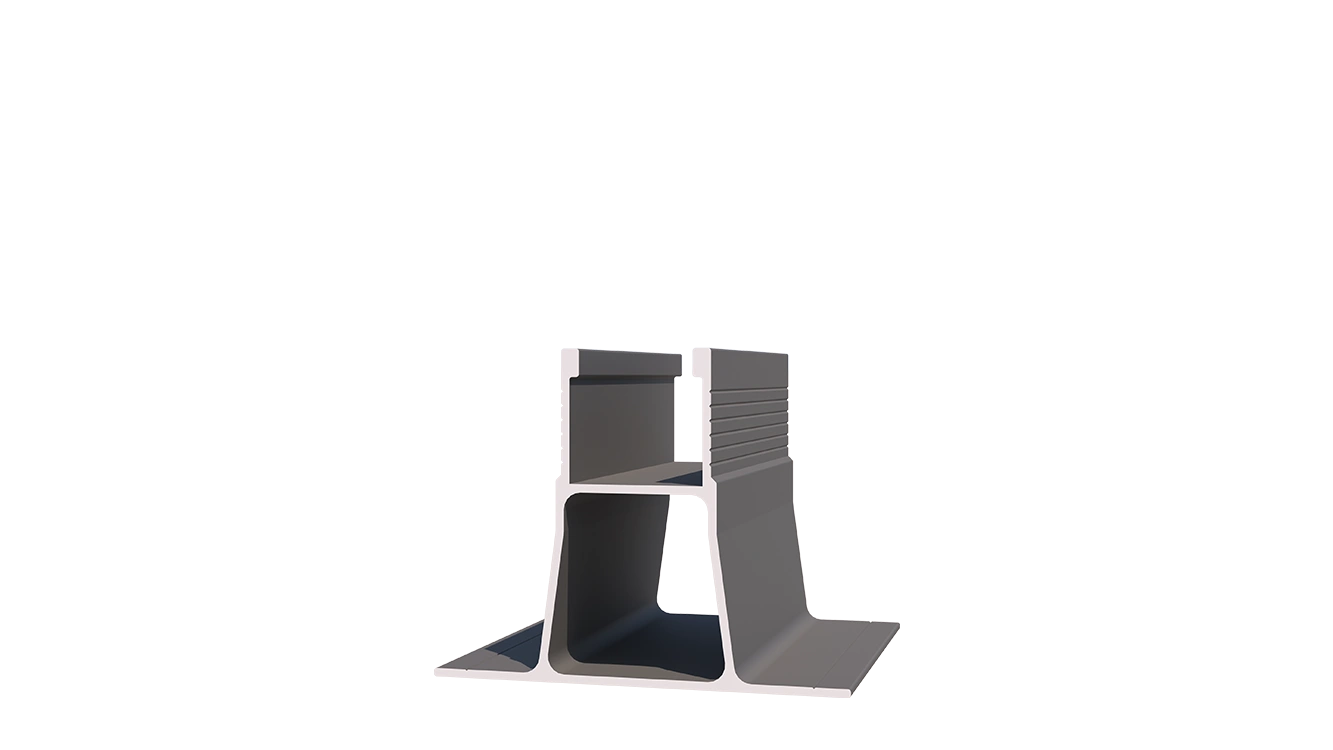

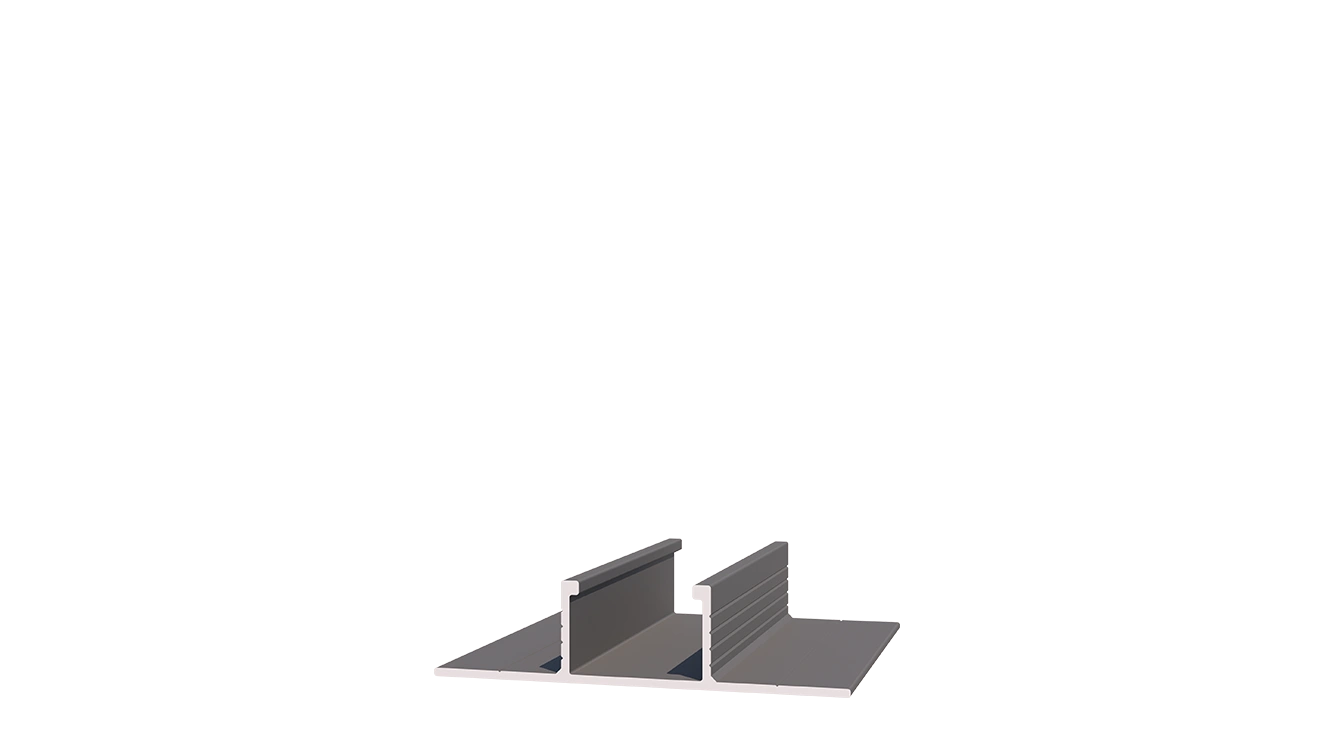

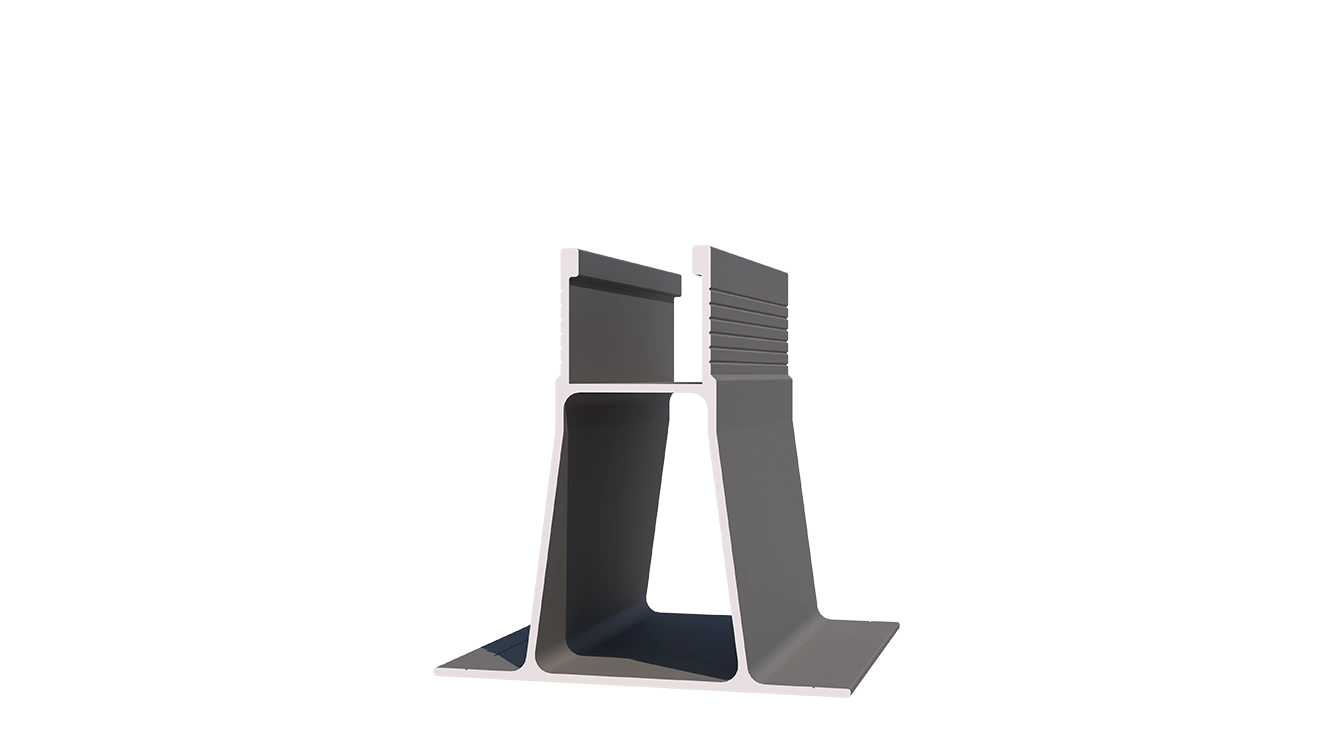

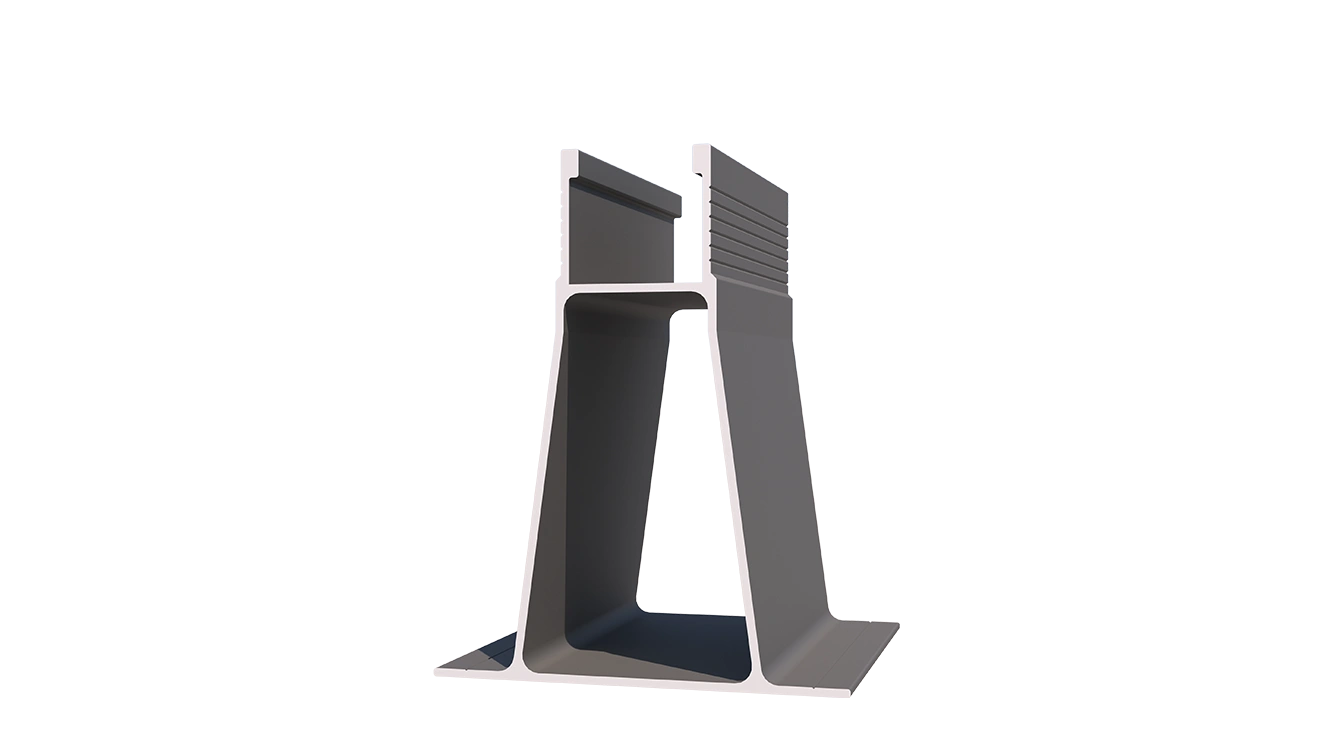

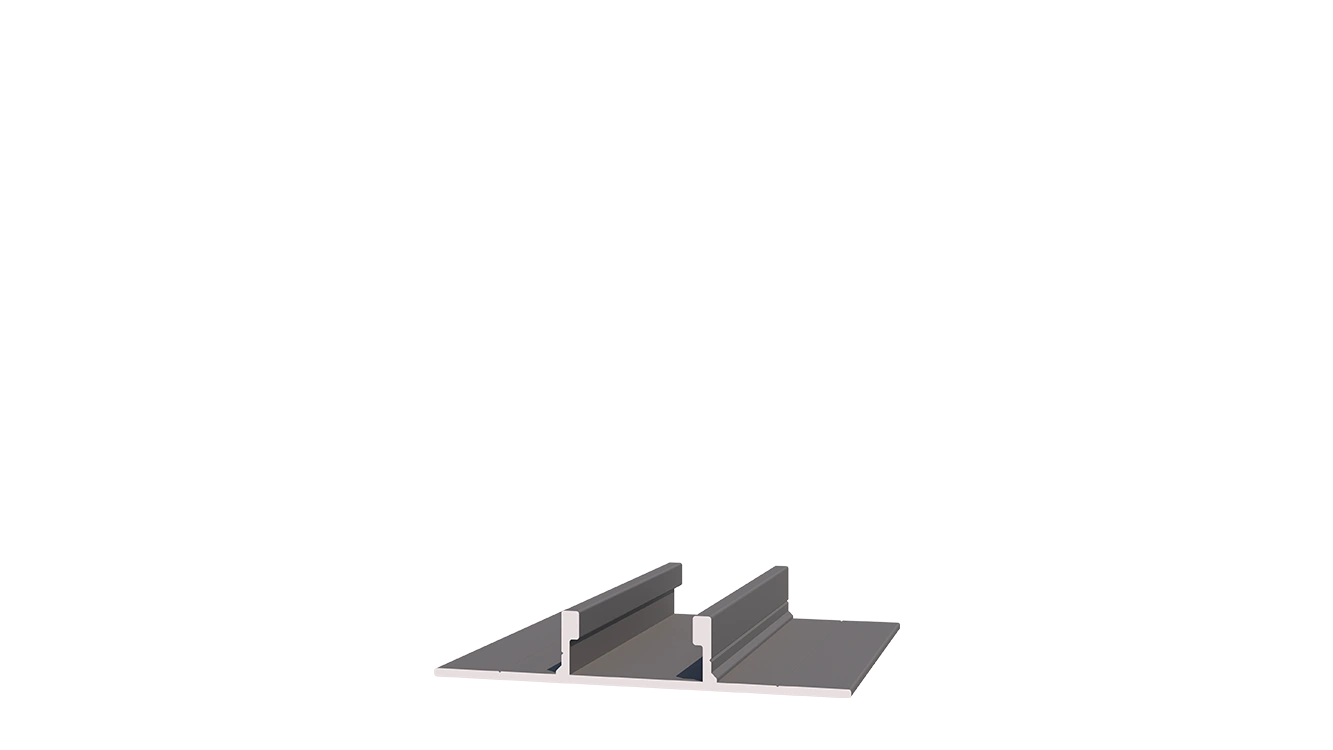

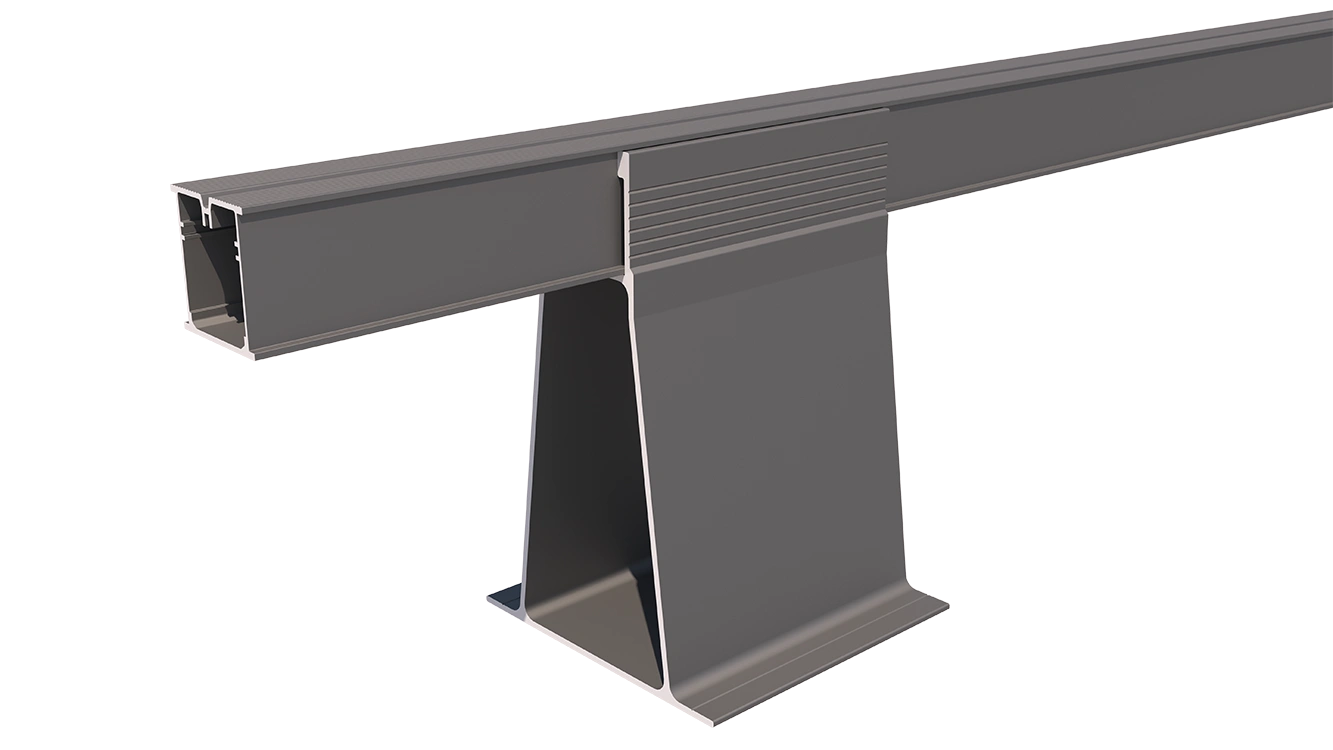

Aluminium Dura Pedestals have an A2 fire-rating and a unique patent-pending design which helps overcome even the most complex of installation challenges. Available in 8 different variants, the Anthracite coloured pedestals integrate seamlessly with Dura Bearers to create the most economical A2-rated support system on the market, with a total of 48 possible pedestal-bearer combinations.

Unlike plastic pedestals, the Dura Pedestals have a single unit construction, with no fiddly separate components (such as bearer holders, slope correctors or spacers) to unpack and assemble. The tripod design features enhanced stability to mitigate the risk of rolling and can be butted up to the wall or edge without the need for cuts.

If your project requires a fall, or if your substructure is not level, each pedestal includes handy visual notches at 5mm intervals so you can easily secure your bearers at your desired height.

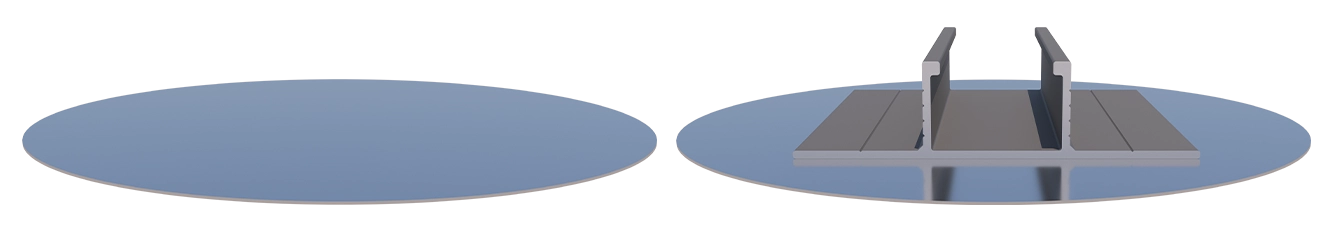

Dura Pedestal Pads

Added protection for waterproof membranes

This Aluminium Pedestal Pad can be used in conjunction with our Dura Pedestals for added protection when using waterproofing membrane or roof felt. Lightweight and easy to install, it features drainage holes to prevent water stagnation and can be easily removed and re-used as required.

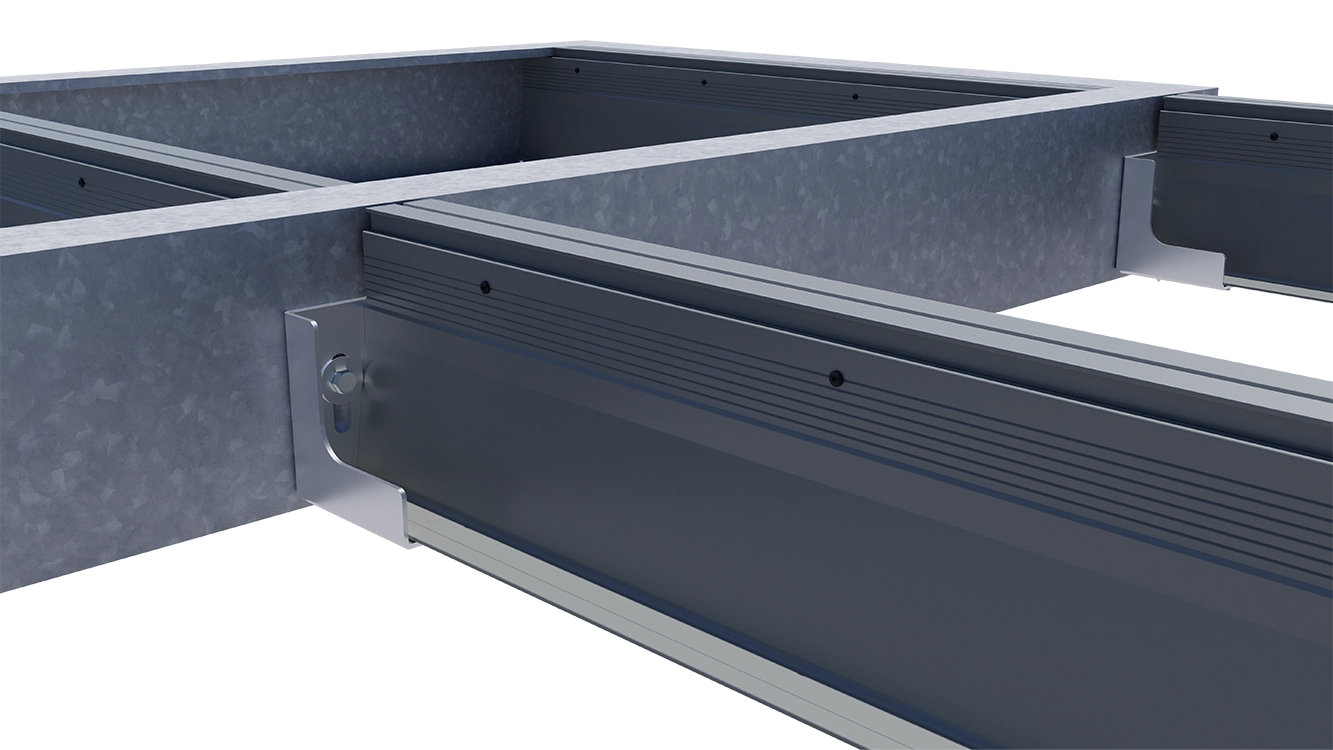

d² Quickspan Beam

The aluminium beam that changes what’s possible

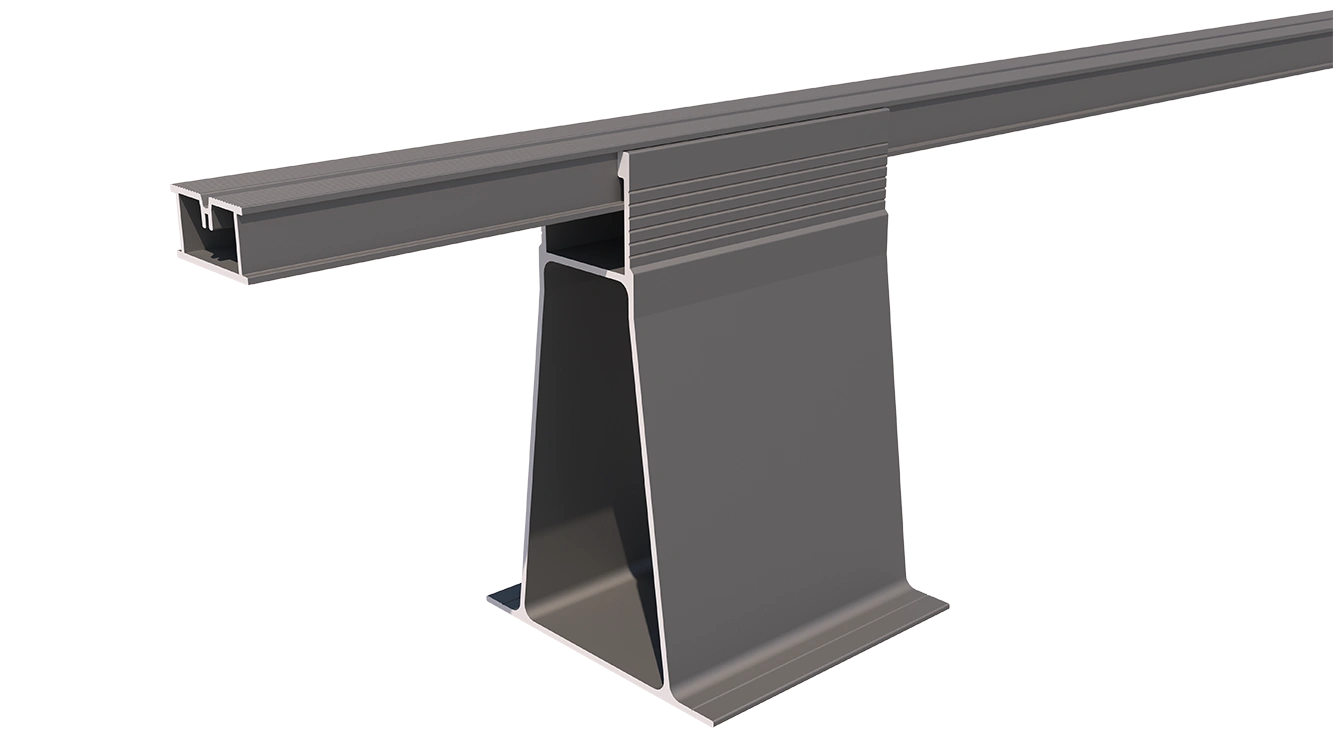

d² Quickspan Beam (Patent No. GB 2005553.9) is part of the world’s lowest carbon balcony decking components, designed to deliver performance and sustainability together. It combines the Dura Pedestal and Dura Bearer into a single integrated ‘Quickspan’ system that spans further, installs faster and reduces component count.

Engineered to span up to 4.0m and support 3.0kN point loads with just 0.5% deflection, d² Quickspan Beam reduces beams and support points for cleaner layouts, faster progress and fewer interfaces with existing structures.

Built-in pedestal functionality eliminates separate supports, holders and slope correctors. Integrated height and fall adjustability enables:

• Straightforward Finished Floor Level (FFL) alignment
• Creation of 1:80 drainage falls
• Adaptation to gradients up to 10°

Purpose-built for balcony remediation, d² Quickspan Beam replaces combustible timber joists with a non-combustible, maintenance-free substructure manufactured from 6063 grade aluminium (T6). It aligns with post-Grenfell fire safety expectations, suits steel or concrete balcony frames, and avoids the long-term issues of timber movement, decay and fire risk.

Links & Documents

Explore our solutions and services to help you build resilient, greener and safer infrastructure.

NBS Source

Our BIM objects are hosted on NBS Source where they are available for use by architects, designers, engineer, contractors and specifiers.

Our Specialists

Our innovative fire-rated products are designed specifically to support remedial and new-build construction. Talk to our experienced team about how you can tap into our specialist knowledge and engineering capability for your project.
